22mm 10A/600V Plastic Mushroom Emergency Stop Switch

Name: 22mm 10A/600V Plastic Mushroom Emergency Stop Switch
Brand: all-electronics-online.com
SKU: 793729435
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 0.1-1.64/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS0-DY-11TS
Item No.:	Hbs0-Dy-11m, Hbs0-Dy-11zm
Head Shape:	Mushroom
Rated Voltage:	500V
Rated Current:	5A
Diameter:	22mm
Type:	Composite
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban
Certification:	ISO9001, Ce, RoHS, CCC

Product Description

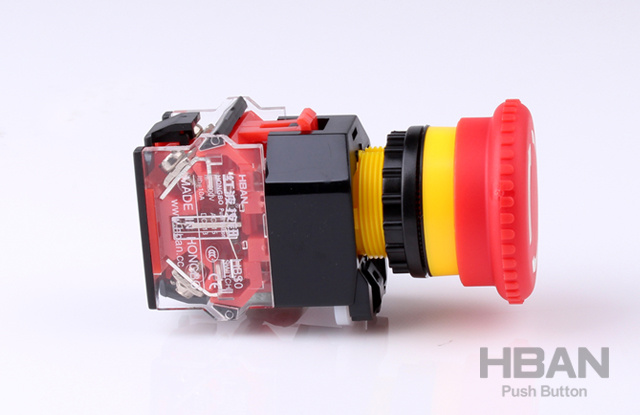

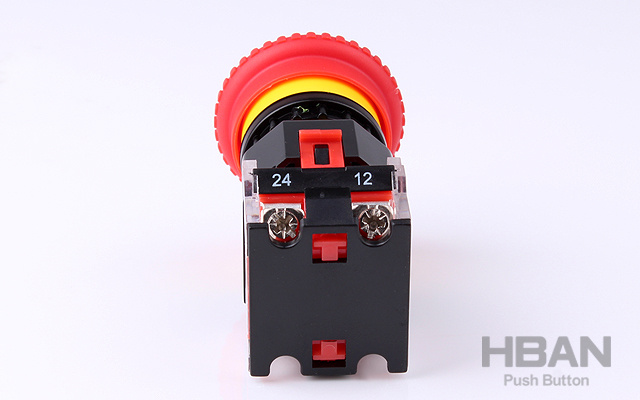

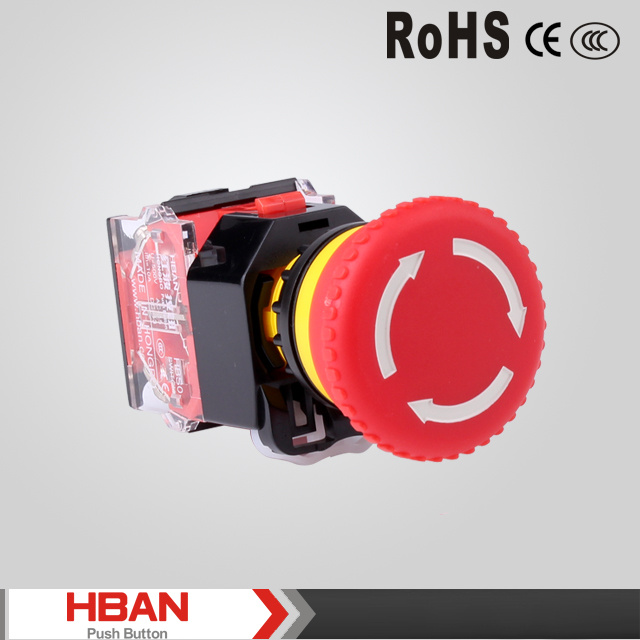

22mm 10A/600V plastic mushroom emergency stop switch

Mounting Hole Size :Φ22mm
Contact Configuration:1NO1NC
Operation Type: Momentary, Latching
The Crust Material:Plastic
Protection Degree:IP40, ( IP65 Can be made to order )

Packing details:

We pack each diameter 22mm plastic push button switches packed into a small box separately.Then will put 10 small boxes into a 3 layers corrugated inner box with 1 piece of guarantee card.Finally ,we packed 50 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more
than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
electronics, production control, medical, banks, ships, automation and other i
ndustries.

We can customize push button switch according to your specification, If you have
any requirement or question,please feel free to contact us.

Tel:0086-577-62708000 Fax :0086-577-62708007

Working Temperature	-25°C ~ +55°C No frozen
Protection Degree	IP40
Workenvironment humidity	45-85%RH
Contact material	Silver cadmium oxideS ilver plated gold plating thickness
Contact resistance	≤50mΩ
Insulation resistance	≥100mΩ
Contact between lamp bead pin	2000VAC
Between same class terminal	1000VAC
Between different electrode terminal	2000VAC
Vibration proof	50HZ,Amplitude about 1.2mm
Impact resistance	Greater than 10g
Mechanical Life	1,000,000 times
Electric Life	Above 30,000 times
Operating distance	button about3mm
Solder heat resistance	Not more than 3 seconds when 230°C
Specified value of the switch
Rated insulation voltage	AC600V
Heating current	10A
Rated current	24V	48V	110V	220V	380V	500V
DC	8A	4A	2.2A	1.1A
PF=0.7AC			10A	6A	4A	2A
