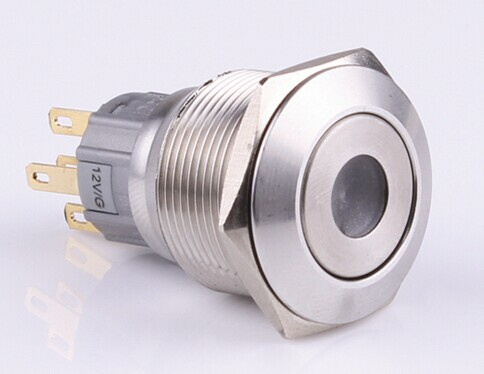

22mm 2no2nc Metal Pushbutton Switch with DOT- Illuminated

Name: 22mm 2no2nc Metal Pushbutton Switch with DOT- Illuminated
Brand: all-electronics-online.com
SKU: 693555572
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS1-AGQ22-11D/S, 11DZ/S, 22D/S, 22DZ/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switch Rating:	5A/250V AC
Contact Configuration:	1no1nc/2no2nc
Operatiion Type:	Momentary/Latching
Crust Material:	Stainless Steel
IP Protection Degreee:	IP67,Ik09
Illuminated Type:	DOT-Illuminated
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban
Certification:	CE,RoHS,ISO9001
Type:	1no1nc,2no2nc

Product Description

IP67. IK09 dot led illuminated momentary push button switch

Item No: HBS1-AGQ22-11D/S, HBS1-AGQ22-11DZ/S
HBS1-AGQ22-22D/S, HBS1-AGQ22-22DZ/S
Mounting Hole Size: Φ 22mm
Switch Rating: 5A / 250VAC
Contact configuration: 1NO1NC, 2NO2NC
Front Shape: Flat
Connector: Pin terminal
Illuminated type: Ring illuminated
Protection Degree: IP67, IK09

Packing details:

We pack 20 pieces diameter 22mm metal push button switches into 1 foam box to protect them. We supply 20 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a kraft paper box, 25boxes will be packed into a carton.
About Us:

Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
Waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
Medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.

Tel: 0086-577-62708000 Fax: 0086-577-62708007

Item NO.		HBS1-AGQ22-11D/S	HBS1-AGQ22-11DZ/S
Specification		1NO1NC,Momentary	1NO1NC,Latching
Item NO.		HBS1-AGQ22-22D/S	HBS1-AGQ22-22DZ/S
Specification		2NO2NC,Momentary	2NO2NC,Latching
Front Head Shape		Flat Round
Terminal Type		Pin terminal(2.8*0.5mm)
Switch Type		C Single breakpoint snap-action changeover contacts
Switch Specification		Ith:5 A Ui:250V AC
Contact Resistance		≤ 50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strength		2000V
Operating Temperature		-22 degree~+55 degree
Machanical Life		>1,000,000times
Electrical Life		>50,000times
Panel Thickness		1-10mm
Torque		5-14Nm
Operating Pressure		3~5N
Protection Degree		about 3.1mm
Materisl	Contact	IP67,IK09
	Button	Silver Alloy
	Case	Stainless Steel
	Base	Stainless Steel
Lamp Parameters	Type	Ring-illuminated(LED)
	Rated Voltage	6V/12V/24V/110V/220V
	Color	Red/Green/Orange/Yellow/White/Blue
	Life	50,000hours
