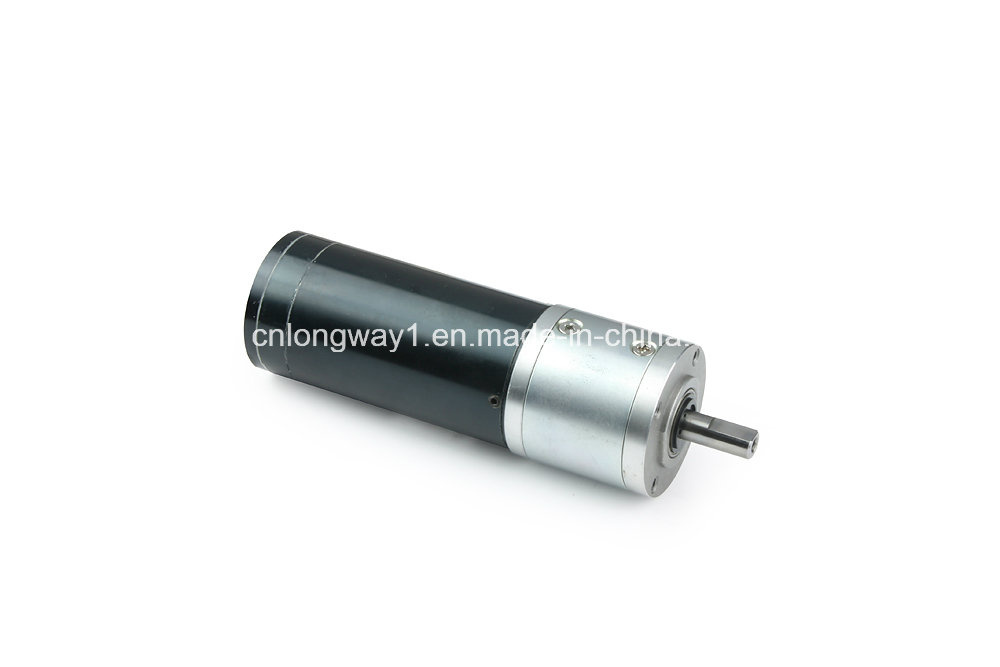

22mm High Torque PMDC Planet Gear Motor for Garden Tools

Name: 22mm High Torque PMDC Planet Gear Motor for Garden Tools
Brand: all-electronics-online.com
SKU: 774116645
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	22ZYT38-22PLG10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	22mm
Premissible Load Range:	0.03n.M-0.3n.M
Application To:	Electric Garden Tools and Automatic Mover , Robot
Special Motor:	Small Size , High Torque , Easy Control etc
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Description of the product
1. Small diameter, low speed, big torque 22ZYT38 dc motor.
2. Diameter 22mm gearbox rated torque 1N.M small size reliable.
3. Fit for small diameter, low noise curtain, and big output torque equipmt
Motor Technical Data

Model	Rated Voltage VDC	No-load Speed r/min	No-load Current mA	Rated Speed r/min	Rated Torque mN.m	Output Power W	Pated Current mA	Stall Torque mN.m	Stall Current A
22ZYT38-1260	12	6000	50	5150	3	1.6	195	19.5	1.1
22ZYT38-12100	12	10000	50	9200	3	2.8	180	32	1.4

Gear motor Technical Data

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of grea trains	1	1	2	2	2	3	3	3	4	4	4	4	4	4
Length(L) mm	26	26	34.5	34.5	34.5	42.5	42.5	42.5	42.5	51	51	51	51	51
No-load speed r/min	1500	1200	428	315	222	117	84	60	43	31	23	16	11	8.3
Rated speed r/min	1390	990	360	270	190	100	72	51	37	27	19	14	10	7.5
Rated torque N.m	0.01	0.014	0.037	0.051	0.072	0.13	0.18	0.25	0.35	0.45	0.64	0.9	1	1
Max.permissible load in a short time	0.3	0.3	0.6	0.6	0.6	1.5	1.5	1.5	1.5	3	3	3	3	3

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of grea trains	1	1	2	2	2	3	3	3	4	4	4	4	4	4
Length(L) mm	26	26	34.5	34.5	34.5	42.5	42.5	42.5	42.5	51	51	51	51	51
No-load speed r/min	2695	1931	714	526	370	196	141	100	72	51	38	27	19	14
Rated speed r/min	2480	1776	657	484	341	180	130	92	66	49	35	25	18	15
Rated torque N.m	0.01	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.3	0.37	0.52	0.73	1	1
Max.permissible load in a short time	0.3	0.3	0.6	0.6	0.6	1.5	1.5	1.5	1.5	3	3	3	3	3

*The specifications can be designed according to the customer's requirement !
