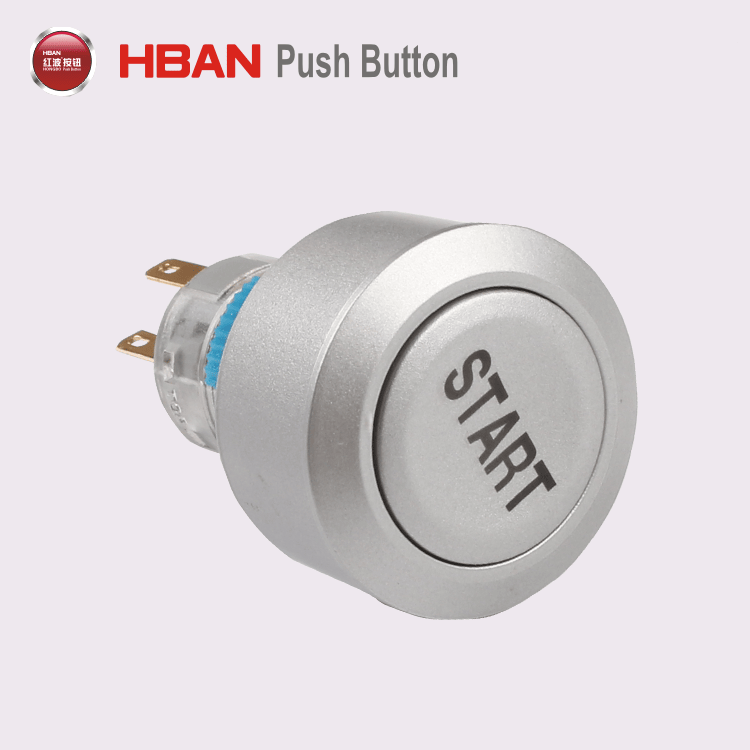

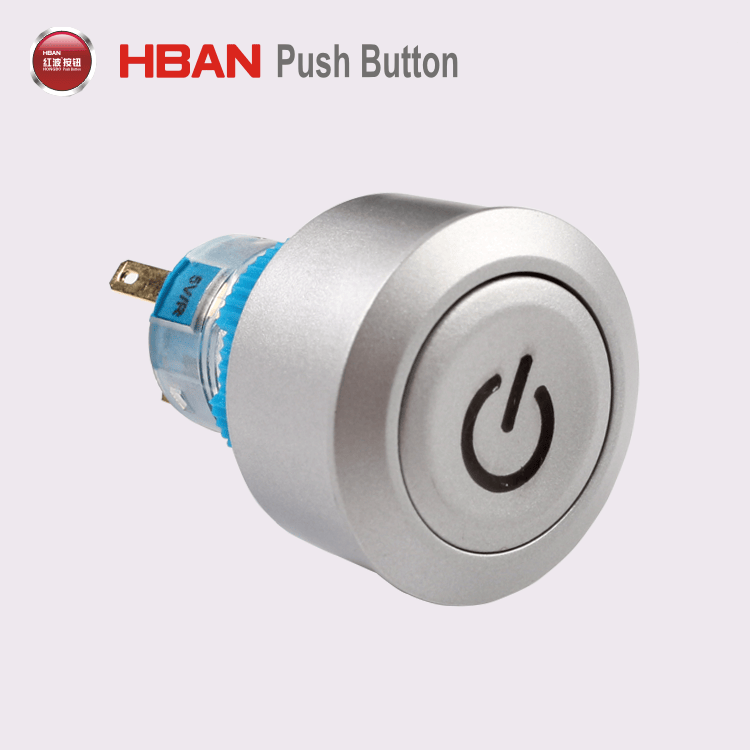

22mm Plastic Illuminated Momentary Push Button Switch for Home Appliance

Name: 22mm Plastic Illuminated Momentary Push Button Switch for Home Appliance
Brand: all-electronics-online.com
SKU: 839394485
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	US $ 1.32-1.56/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBDS1-AWY-11DT
Item No.:	Hbds1-Awy-11dt
Switch Rating:	5A/250VAC
Contact Configuration:	1no1nc
Operation Type:	Momentary/Latching
The Front Shape:	Round/Square/Rectangle with LED Illuminated
The Crust Material:	Plastic
Protection Degree:	IP40 or IP65
Function:	Electric Circuit Control
Manufacturer:	Yes
Original:	Zhejiang, China
Usage:	Start Button
Kind:	Double-pole on-off Switch
Type:	1no1nc
Brand:	Hban

Product Description

CE UL 22mm panel mount customized symbol with illumination push button switch

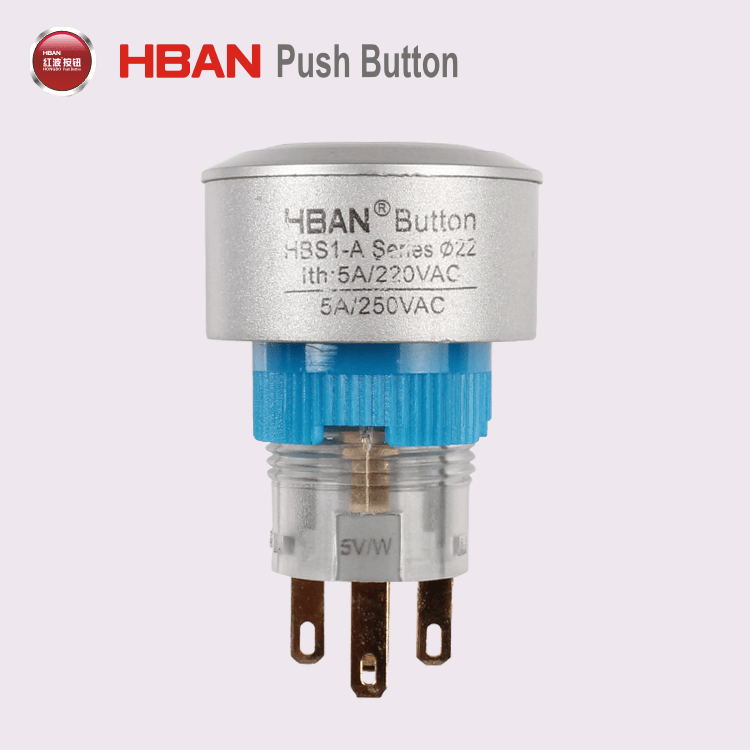

Item NO. : HBS1-AWY Series
Mounting Hole Size:dia.22mm
Terminal Type: Pin Terminal
The Crust Material: Plastic
Lamp Color: Red / Green / Yellow / Orange / Blue / White
Protection Degree: IP40, Can be made to IP65 according your requirement.

Item NO.		HBS1-AWY SERIES
Specification		push button switch
Head Shape		Round
Terminal Type		Pin Terminal
Dielectric Strength		2000VAC
Operating Temperature		-20 degree ~ + 55 degree
Panel Thickness		1~10 mm
Torque		5~14Nm
Protection Degree		IP67,IP40,IK10
Material	Shade	PC
	Case	PC
	Base	PBT
Lamp Specification	Type	LED illumination
	Rated Voltage	2V /6V/12V/24V/36V/110V/220V
	Rated Current	About 15mA ~3 mA
	LED Color	Red /Green/Yellow/Orange/Blue/White
	LED Lifetime	50000 hours

The above logo or any special logo with illumination or without illumination can be customized as per your request.

Product application

About us

Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

Any requirement or question,pls send us an e-mail now!
It's our great honor to do services for you!
You also can get the FREE SAMPLES soon!

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
