| Prod Model: |
HBS1-AWF-11DZ |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
22mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP40 |
| Crust Material: |
PC |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Rectangle/Square/Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

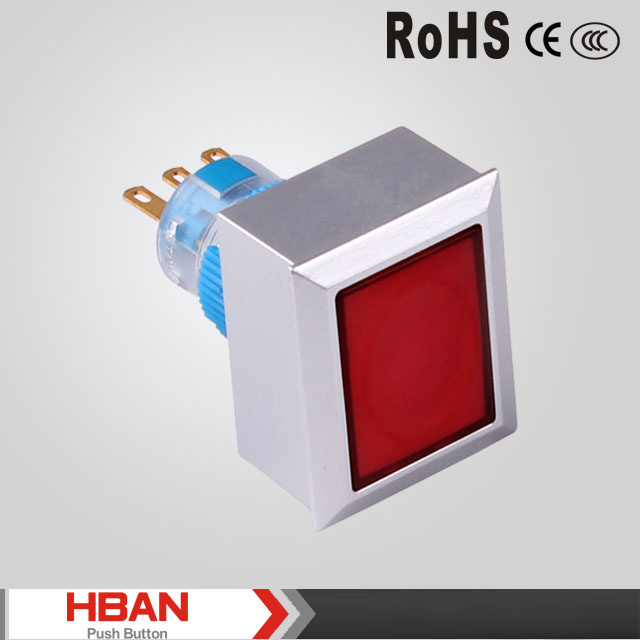

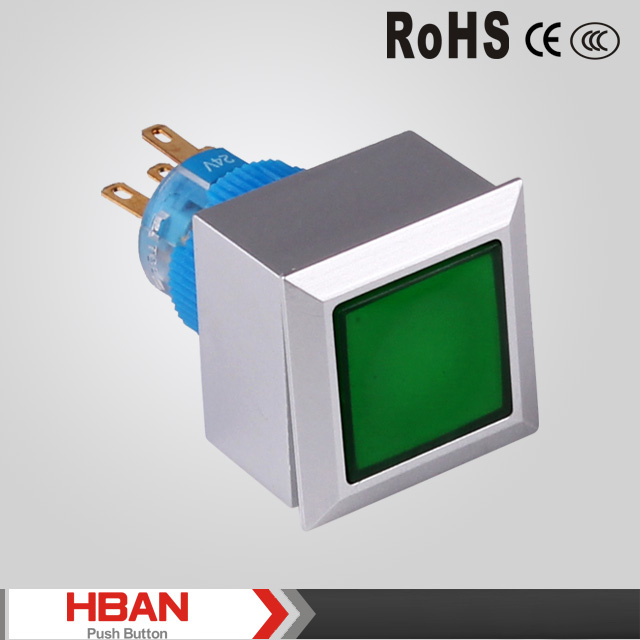

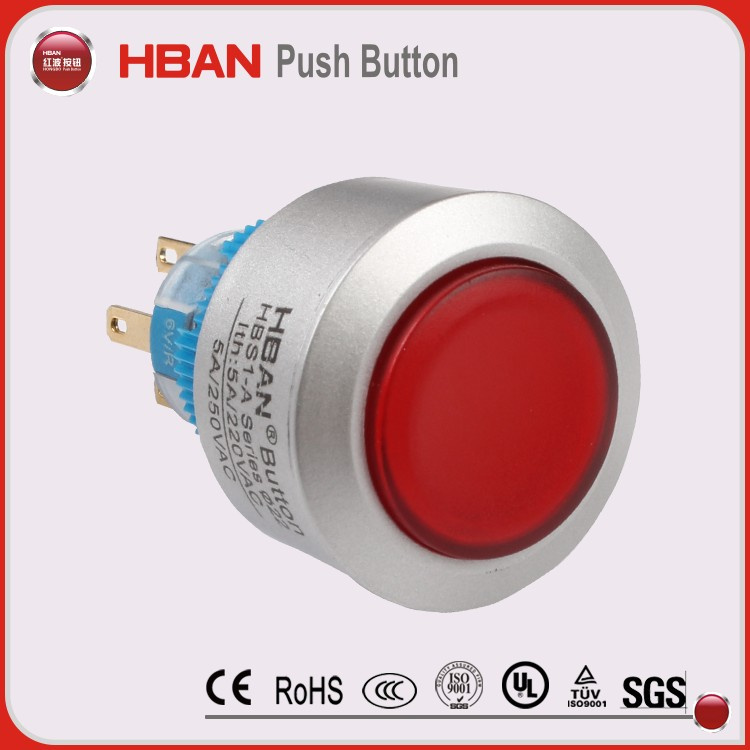

CE UL diameter 22mm head illumination momentary latching or push button switch with led light Item NO.: HBS1-Aw
Mounting Hole Size:dia.22mm
Lamp Type:LED
Protection Degree:IP40
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material: pc
CE ROHS CERTIFICATE
PUSH BUTTON SWITCHTel : 0086-577-62708000 Fax : 0086-577-62708007
Item NO. | HBS1-AW SERIES |
| Specification | push button switch |
| Head Shape | Round/rectangle/square |
| Terminal Type | Pin Terminal |
| Dielectric Strength | 2000VAC |
| Operating Temperature | -20 degree ~ + 55 degree |
| Panel Thickness | 1~10 mm |
| Torque | 5~14Nm |
| Protection Degree | IP67,IP40,IK10 |
| Material | Shade | PC |
| Case | PC |
| Base | PBT |
| Lamp Specification | Type | LED illumination |
| Rated Voltage | 2V /6V/12V/24V/36V/110V/220V |
| Rated Current | About 15mA ~3 mA |
| LED Color | Red /Green/Yellow/Orange/Blue/White |
| LED Lifetime | 50000 hours |

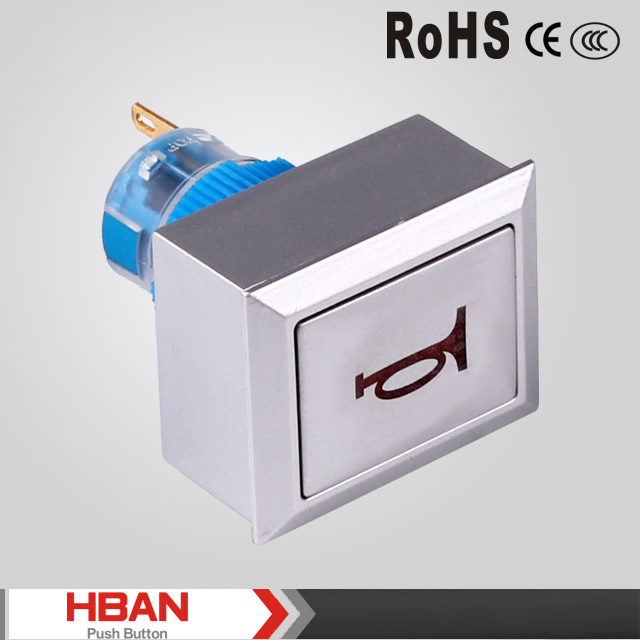

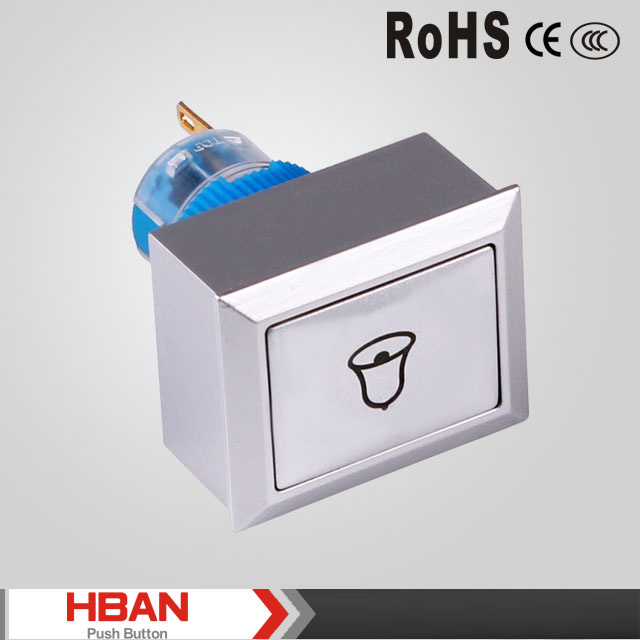

please note:The above logo or any special logo with illumination or without illumination can be customized as per your request.
Packing Details:We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
