| Prod Model: |
HBY5-01TS |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
22mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP40 |
| Crust Material: |
PC |
| Switch Rating: |
10A/600V AC |
| The Front Shape: |
Mushroom |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

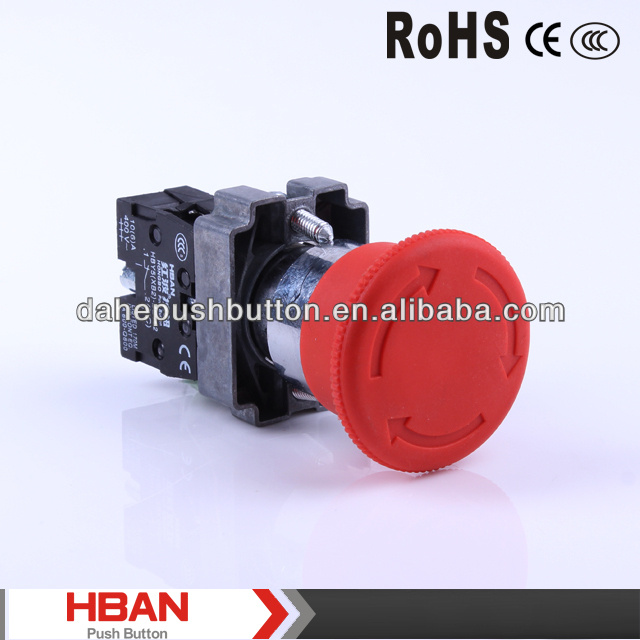

Premeters: HBAN CE RoHS 22mm emergency stop PC frame 1NC switch
Item No:HBY5-01TS
HBY5-11TS
HBY5-02TS
HBY5-22TS
Mounting hole size :22mm
Contact Configuration:1NC/2NC/1NO1NC/2NO2NC
Head shape:Mushroom
Operation Type:Momentary/Latching
Terminal type :Screw terminal
IP Degree:IP40
specificationTel:0086-577-62708000 Fax :0086-577-62708007
| Item NO. | HBY5-01TS | HBY5-11TS |
| Front Head Shape | Round,Red,emergency stop,1NC | Round,Red,emergency stop,1NO1NC |
| Item NO. | HBY5-02TS | HBY5-22TS |
| Front Head Shape | Round,Red,emergency stop,2NO | Round,2NO2NC,emergency stop,Red |
| Terminal Type | Screw terminal |
| Switch Type | 1NC/1NO1NC/2NO2NC |
| Switch Specification | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 2000V,AC 50Hz,1 min |
| Operating Temperature | 1000V,AC 50Hz,1 min |
| Shock Resistance | ≥10g |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 1,000,000 times |
| Electric Life | >30,000 times |
| Operating Stroke | About 3 mm |
| Protection Degree | IP40 |
| Material | Contact | Sliver ,Sliver Alloy |
| Rated insulation voltage | AC600V |
| Heating current | 10A |
| Rated Current | 24V | 48V | 110V | 220V | 380V | 500V |
| DC | | | 2.2A | 1.1A | | |
| AC PF=0.7 | 8A | 4A | 10A | 6A | 4A | 2A |
Packing Details:
We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
