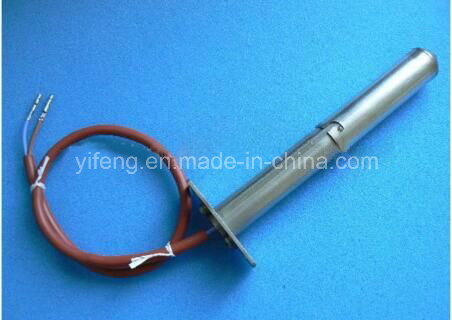

230V Ceramic Igniter for Igniting Solid Fuel with Proctective Tube

230V Ceramic Igniter for Igniting Solid Fuel with Proctective Tube
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: G78105-21
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type.: Resistance Heater
Cable: High Tempature Cable
Place Of Origin: Fujian,China
Heating Zone: 43mm
Voltage: 230V
Heating Resistance: Accordingly
Power: 150W-170W
Material.: Alumina Ceramic
Application: Ceramic Heater for Biomass Boiler Lighter
Dimension: Accordingly

Product Description

Specifications


1.Ceramic ignition for Igniting Solid Fuel
2.Over 1100deg.C
3.Fast heating up
4.Long life
5.Meet Rohs
HIGHLY DURABLE AND ENERGY-EFFICIENT XIAMEN GREEN WAY'S IGNITER

----ceramic hot surface igniters for the sake of environment.



Characteristic

1.High temperature-resistance ceramic heating element which can reach a permanent working temperature

above 750°C



2.Energy saving, super fast heating-up



3.Air can through and around inside and outside of the heater.

Heat can be transfered from both inside and ouside of the heating element.



4.Electrically oxidation and corrosion-resistant



5.High load-bearing capacity(thermal shock resistance, cycles)



5.Customization the igniters according to customers' specific requirement.



 Application

One special application area for our high temperature ceramic igniters is in heating systems that

use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very short time while retaining very low emission values. This can be perfectly achieved by our hot surface ceramic igniters.





Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions!


Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.





1

Part No.

 G78105-21

2

Usage

ceramic igniter for Pellet burner

3

Working Voltage

230VAC

4

Power

150--230(W)

5

Dimension

L=94mm; D=17.5mm (standard igniter)

6

Silicon Cable

0.5m long

7

Advantages

(1)Ready assembled, easy-to-install systems.



(2)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket



(3)Space-saving, noiseless and impervious to overheating.



 (4)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C



 (5)Lifetime up to 100,000 heating cycles, depending on operating conditions



 (6)Minimal energy consumption



 (7)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures - the ideal ignition blower!



(8)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible.
