23AWG CAT6 FTP Cable, UL List, LAN Cable

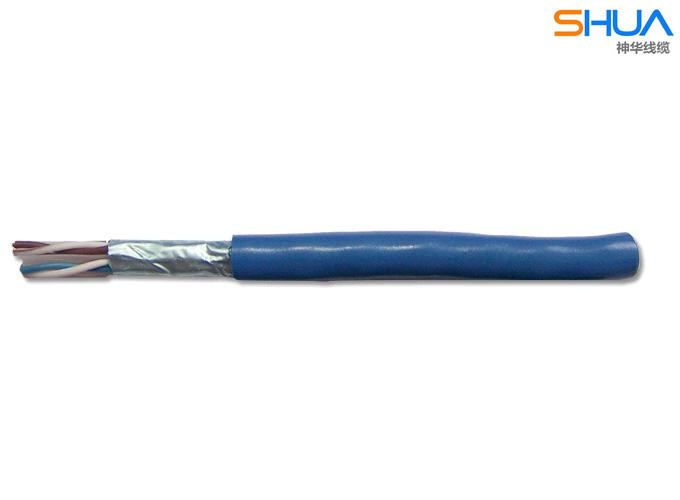

Name: 23AWG CAT6 FTP Cable, UL List, LAN Cable
Brand: all-electronics-online.com
SKU: 733223575
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 22/Meter
Trade Terms:	FOB
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation:	0.28mm PE
Rated Temperature:	75c
Braiding:	Tc/Aluminum Magnesium Alloy
Color:	Optional
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	CCC

Product Description

Packaging & Delivery
Packaging Detail: Carton box, Wooden reel, 305m/box, 200m/coil, 300m/500m/drum Inter packing: Wooden reel, plastic reel or paper reel Outer packing: Carton box, pull out box
Delivery Detail: 7-15 work days
Specifications
1. Cable cat6
2. CE/UL/CCC/ROHS/ANATEL ALL PASS
3. Factory price
4.20years experience
5.7-15 days delivery time

Promotion:
.
More anual promotion, Any inquiry and orders can be save much cost than before, Please E-mail us!

Description:

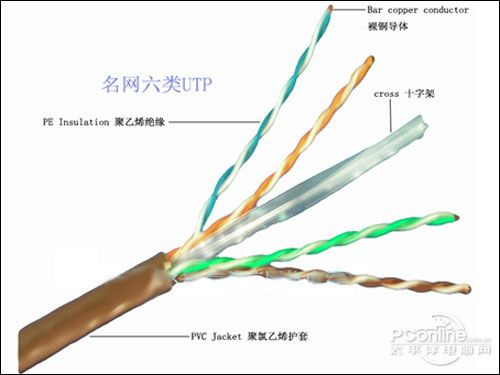

Category 6 Cable is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.

Materials:

Conductive material: Wire made of annealed bare copper
Conductor insulation: HDPE
Shield: An aluminum-mylar (aluminum-polyethyleneterephthalate) tape is helically applied over the cable core, tape thickness - 0.025 mm, width - 18 mm; Shield thickness -0.04 mm
Drain wire: Tinned copper
The cable jacket: PVC
Jacket Color: Optional

Technical characteristics:
Dielectiric strength: 2.5kv dc-2seconds
Conductor resistance: Max 9.38ohm/100m at 20° C
Max ring resistance: 16.8ohm/100m at 20° C
Max mutual capacitance: 530pf/100m
Max capacity unbalance: 110pf/100m
Impedance: 100± 15%ohm at 1-250MHZ
Resistance: 16.8 ohm/100m at 20° C
Operating tempetature: -20° C~+70° C
