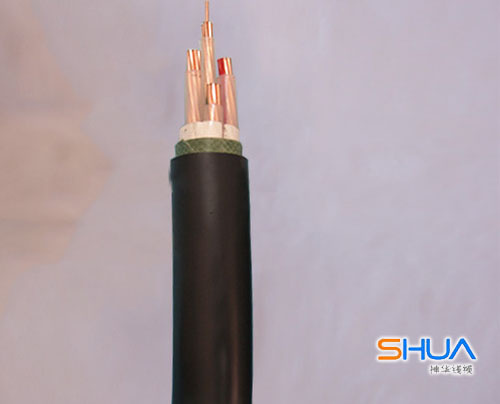

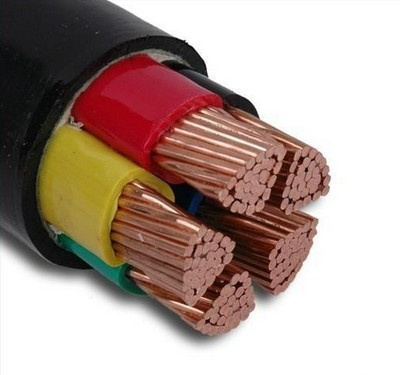

0.6/1kv PVC Insulation and Sheath Power Cable

Name: 0.6/1kv PVC Insulation and Sheath Power Cable
Brand: all-electronics-online.com
SKU: 829637515
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	US $ 25/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV \VLV
Size:	Meter
Application:	Car
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	PVC
Certification:	CE
Brand:	Shua

Product Description

It is used to transmit and distribute power on the power line of A.C. rated voltage 0.6/1kV

Executive standard:

GB/T2706.1(equal to IEC60502)

Working conditions:

1.Long-term working temperature of the cable should be no higher than70°c

2.The conductor temperature should be no higher than 160°c at time of short circuit (It lasts no more than 5 minutes)

3.Environment temperature should be no lower than 0°c for laying the cable .

Type,Descripition &Appliation Occasion

TYPE		Description	Application Occasion
Cu	Al	Description	Application Occasion
VV	VLV	PVC insulation & sheath power cable	To be laid indoors ,in tunnel cable furrow ,or pipe, the cable couldn't bear mechanical force outside.
VV2	VLV22	PVC insulation ,steel tape armor,PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, But it couldn't bear great pulling force.

Remarks:We also produce the flame-resistardant type and fire-resistant type power cables . prefix "ZR"meansflame retardant type,"NH"means fire-resistant type.

Type core number nominal cross-section area remark:we also produce 5-core cable as user's demand.

TYPE

CORE NUMBER

NOMINAL CROSS-SECTION AREA

VV22

VLV

VLV22

1.5˜400

2.5˜400

10˜400

VV22

VLV

VLV22

1.5˜185

2.5˜185

4˜185

VV22

VLV

VLV22

1.5˜300

2.5˜300

4˜300

VV22

VLV

VLV22

4˜185

VV22

VLV

VLV22

4˜240

4˜185

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
