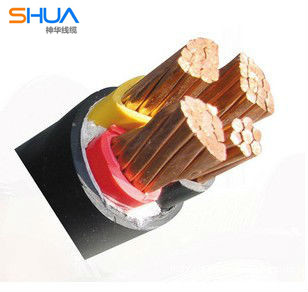

0.6/1kv Polyethylene Insulation Polyvinyl-Chloride Protective Covering Power Cable

Name: 0.6/1kv Polyethylene Insulation Polyvinyl-Chloride Protective Covering Power Cable
Brand: all-electronics-online.com
SKU: 829633105
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	US $ 50/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV YJLV/YJV22 YJLV22/YJV23 YJLV23
Application:	Car
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	PE
Certification:	CE
Brand:	Shua

Product Description

Executive standard:

GB/T12706.1-1270614-2008 also may according to the user need,use international Committee Member the IEC60502-1997 standard production

Working conditions:

1.Envirronment temperature should be no lower than 0°c for laying the cable ,otherwise the cable should be preheated.

2.The mininum cable bending radius is stipulated as follows:

single core:20(d+D)±5%;3cores:15(d+D)± 5%(D for actual cable outer diameter ,d for that of conductor) The highest rated temperature of the conductor is 90°c,no higher than 250°c in time of short circuit(lasting no longer than 5 seconds)

Type,Descripition &Appliation Occasion

TYPE		Description	Application Occasion
Cu	Al	Description	Application Occasion
YJV	YJLV	XLPE insulation PVC sheath power cable	To be laid indoors ,in tunnel cable furrow ,and pipe, or under soft soil, the cable couldn't bear mechanical force outside.
YJV	YJLV	XLPE insulation PE sheath power cable
YJV22	YJLV22	XLPE insulation steel tape armored PVC sheath power cable	To be laid underground, the cable could bear mechanical force outside. But it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation steel tape armored PE sheath power cable

Remarks:We may produce the cablewith steel wire armor structure as user demand ,for example YJV32,YJLV32 types,etc.

code prefix "ZR-"should be added to the original code in ordering on flame-resistardant cable.

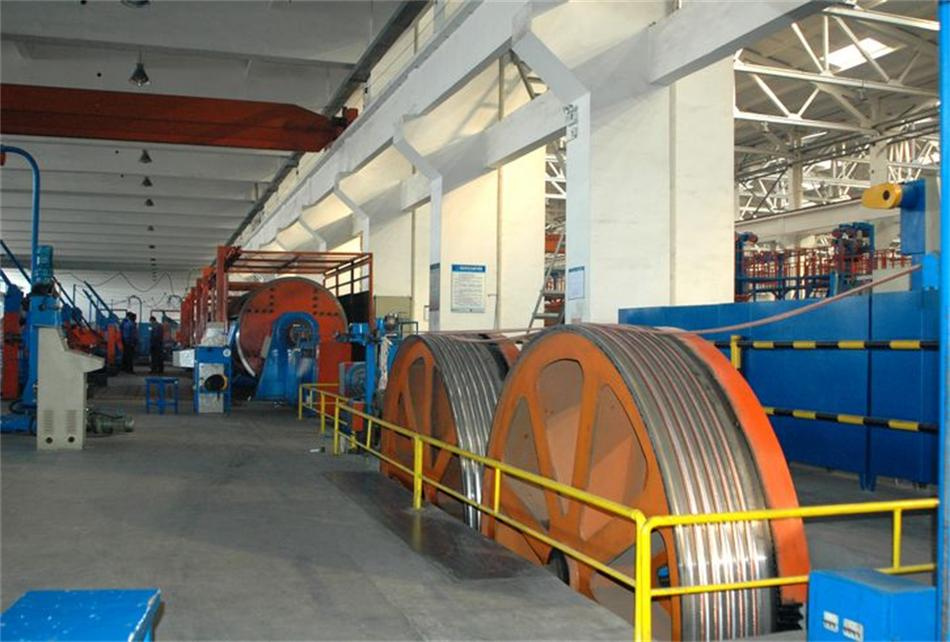

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
