24/48 Core Dielectric Outdoor Optical Fiber Cable GYFTY

Name: 24/48 Core Dielectric Outdoor Optical Fiber Cable GYFTY
Brand: all-electronics-online.com
SKU: 753054335
Availability: InStock
Rating: 4.8 (36 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Aerial & Duct
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / Lszh PE
Fiber Account:	2-288 Core
Strengthen Member:	Glass Yarn or Aramid Yarn
Application:	Glass Fiber
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH,HDPE,MDPE

Product Description

24/48 Core Dielectric Outdoor Optical Fiber Cable GYFTY

Product Description
FA-OC-GYFTY, GYFTY Outdoor Optical Fiber Cable, Stranded Loose Tube, non-metallic, dielectric, without aramid yarn, PE Jacket

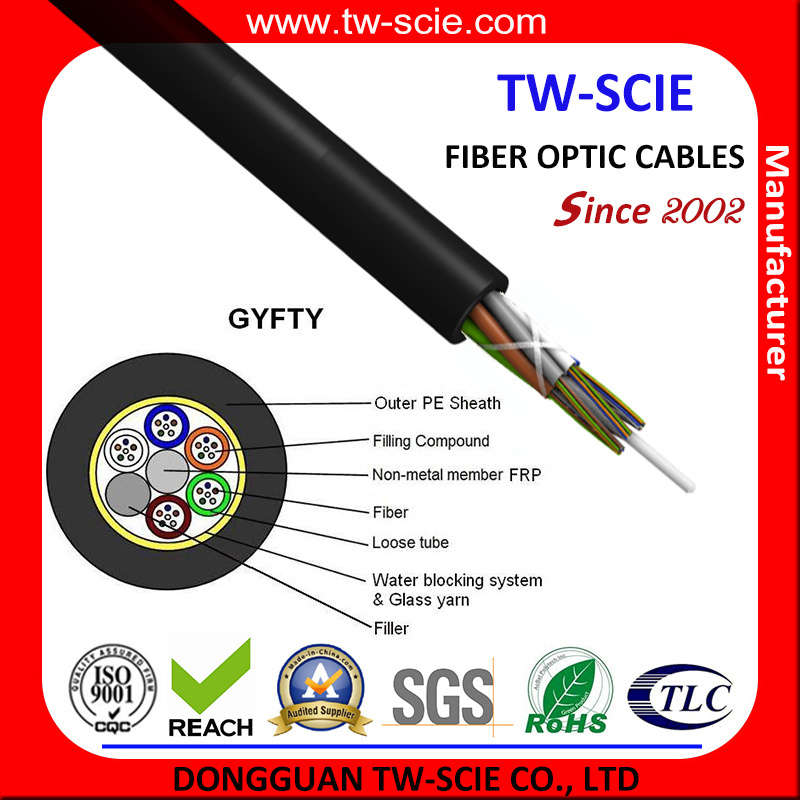

Structure Descriptions:
1 - UV colored fiber
2 - Loose tube: 2~12 fiber inside
Φ2.15 ±0.05mm
3 - Central strength member: FRP
4 - Longitudinal water-proof tape
5 - Outer Jacket: PE

Fiber Characteristics:

Fiber style		Unit	Single mode fiber G652B	Multimode fiber 50/125	Multimode fiber 62.5/125	Multimode fiber OM3 300
Condition		nm	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	0.36/0.23	3.0/1.0	3.0/1.0	3.0/1.0
Dispersion	1550nm	ps(nm·km)	≤18	-----	-----	-----
Dispersion	1625nm	ps(nm·km)	≤22	-----	-----	-----
Bandwidth	850nm	MHZ·.km	-----	≥300	≥160	≥1500
Bandwidth	1300nm	MHZ. ·km	-----	≥300	≥300	≥500

Mechanical Parameters:

Temperature range		ºC	-40ºC-- +70ºC
Min.Bending Radius (mm)	Dynamic	mm	20D
Min.Bending Radius (mm)	Static	mm	10D

Cable Data:

Product model	Fiber account	OD(mm)	Number of tubes	Nominal Weight(kg/km)	Max.Tension(N)		Max.Crushing Resistance (N/100 )
Product model	Fiber account	OD(mm)	Number of tubes	Nominal Weight(kg/km)	Short-term	Long-term	Short-term	Long-term
GYFTY	2--60	9.8±0.5	5	78	1500	600	1000	300
GYFTY	62--72	10.5±0.5	6	92	1500	600	1000	300
GYFTY	74--96	12.0±0.5	8	116	2000	600	1000	300
GYFTY	98--120	13.2±0.5	8	136	2000	600	1000	300
GYFTY	122--144	15.0±0.5	12	160	2500	800	1000	300

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
