24 Core Aerial Optic Fiber Cable for Outdoor Self-Support Use ADSS

Name: 24 Core Aerial Optic Fiber Cable for Outdoor Self-Support Use ADSS
Brand: all-electronics-online.com
SKU: 736810605
Availability: InStock
Rating: 5 (67 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Tw-Scie Fiber Optic Cable or as Required
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

Product Description
The All-Dielectric Self Supporting (ADSS) cable is a completely non-metallic structure in which the tensile load bearing elements are integral within the circular design of the cable.

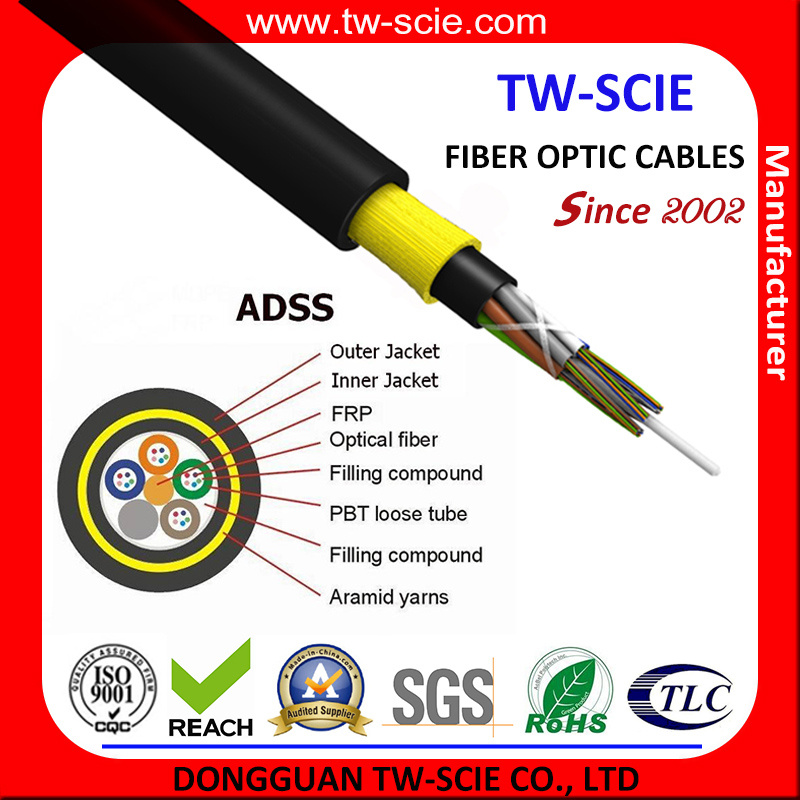

ADSS power optical cable adopts loose tube stranded.Optical fiber are positioned into a loose tube made of high modulus plastics. The tubes are filled with a Water-blocking filling compound. The tubes(and fillers) are stranded around FRP as a non-metallic central strength member into compact and circular cable core. The cable is completed with PE or AT (Anti-tracking) outer sheath.

Item Details
Fiber Count: 2-144 Fibers
Fiber Type: Single-mode G.652D
Outer Jacket: PE
Span: 50-1000m

Optic fiber cable specifications
1. Up to 144 fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

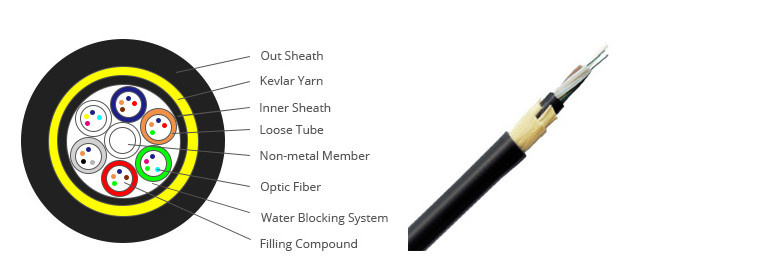

Cable structure

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
