24 Core Fiber Cable GYFTY with Non-Metalic Structure

Name: 24 Core Fiber Cable GYFTY with Non-Metalic Structure
Brand: all-electronics-online.com
SKU: 754298295
Availability: InStock
Rating: 5 (140 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2 Core:	288 Cores
Application:	Glass Fiber
Certification:	ISO9001
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH,HDPE,MDPE

Product Description

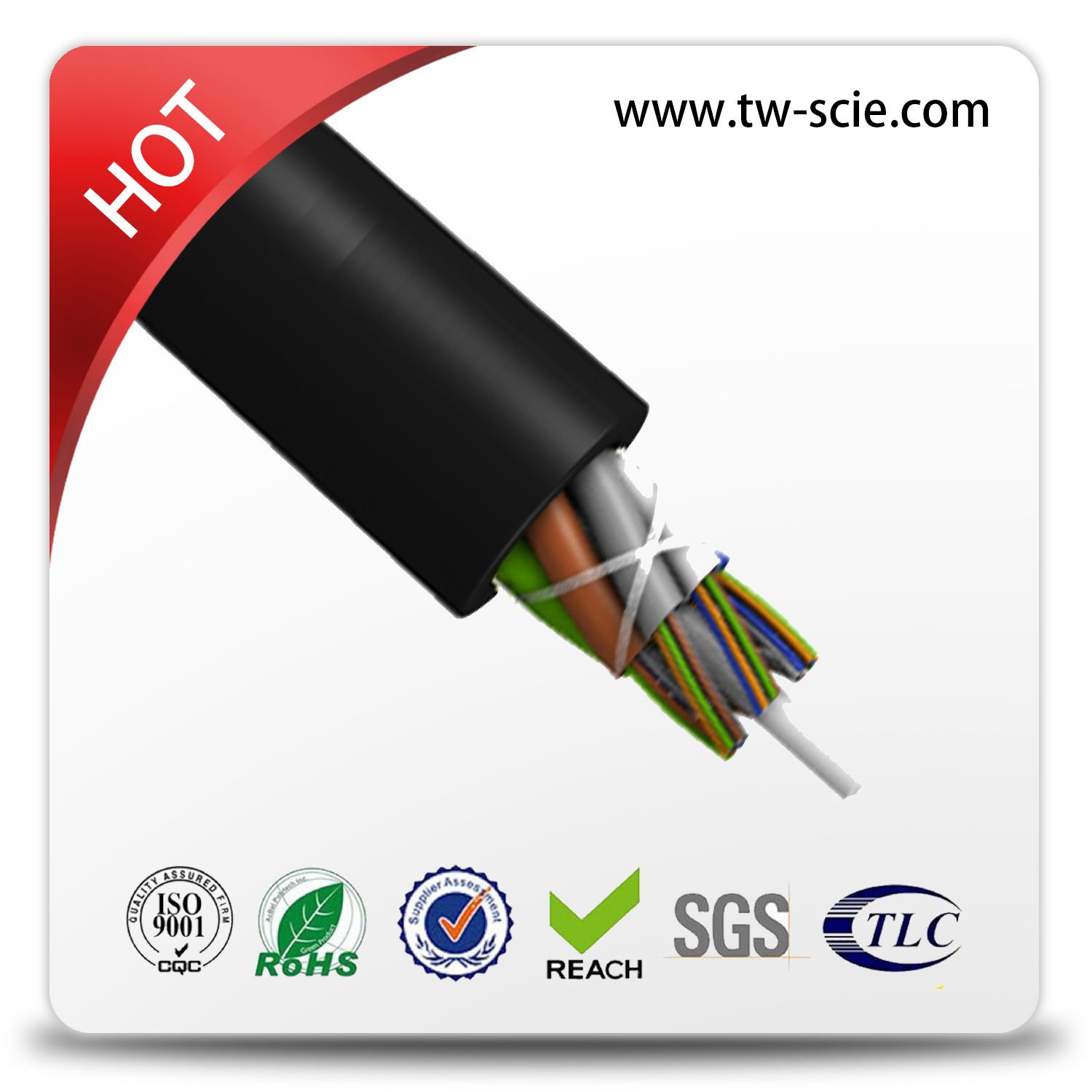

24 Core Fiber Cable GYFTY with Non-Metalic Structure

Description:

Loose Tube Single Jacket All Dielectric cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.

Features:

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber
Excellent crush resistance and flexibility
The following measures are taken to ensure the cable water -proof performance

Single Fiber Reinforced Plastic as the central strength member
Loose tube is filled with special filling compound
100% cable core filling

Applications:

* Laying modes: Aerial & Conduit/Duct.

* Rural communication

* Local trunk line

* CATV

* Computer networks system

Specifications:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications:

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~12	8.6	95	1500	600	1000	300
14~24	9.0	110	1500	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Product Pictures:

Tag: armored fiber optical cable, armored fiber cables ,GYFTY,GYTC8S

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
