24 Core High Quality for Optic Fiber Cable GYTA53

Prod Model:	GYTA53 optic fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	MDPE/HDPE/Lszh PE
Water Blocking Material:	Filling Compound / Water Blocking Tape
Fiber Account:	2-288 Core
Application:	Fiber Optic Cable
Certification:	Reach
Type:	Glass Fiber
Connection Structure:	Optical Fiber
Sheath Material:	MDPE,HDPE,LSZH

Product Description

Loose Tube Fiber Optical Cable double Armored GYTA53 With Steel Tape,black PE




Features:

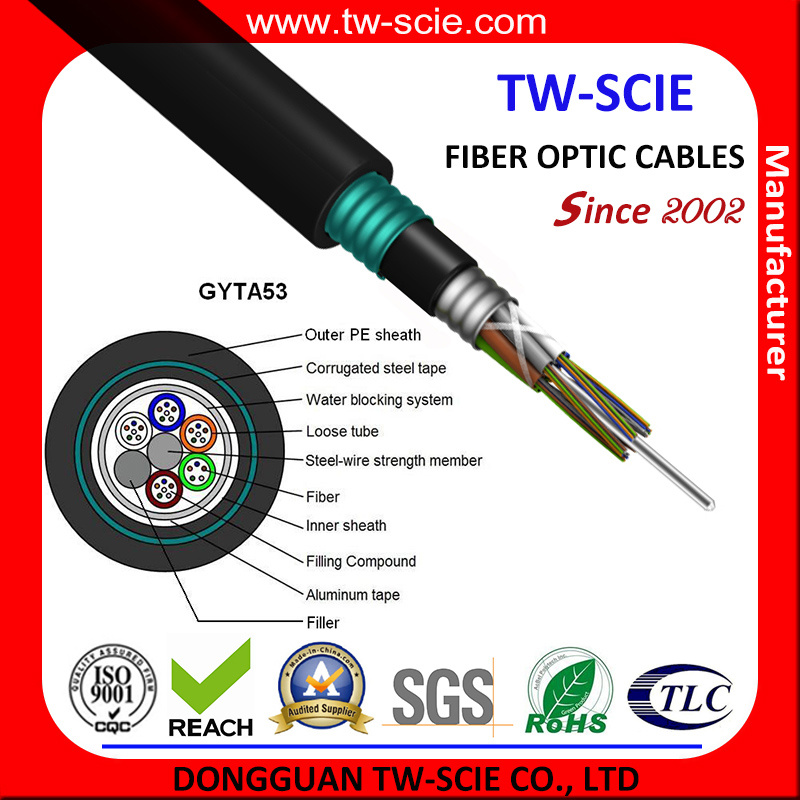

Loose tubes(or some with fillers) stranded around the central strength member to form the cable core, the cable core longitudinally bound by aluminum ployethylene laminate, further bonded to the PE inner jacket, moisture barrier and then corrugated steel tape laminated with ployethylene on both sides, the PE outer jscket consisted of mediun density polyethylene extruded under vacuum condition.
High tensile strength, good performance on mechanical stress, crush resistance, temperature and transmission
High Young's modulus phosphatized steel wire as central strength memebr, PE buffer extruded to outside of steel wire when necessary
The loose tubes, cable core and all interstices filled with moisture-proof gel and compound, prevent water ingress longitudinally.
The aluminiunm tape laminated on both sides with polythylene and closely bonded to PE inner sheath possesses the function of radial moisture-proof for the cable
Armoured with longitudinal corrugated steel tape laminated with polyethylene
Longitudinal water blocking tape at the inner side of the steel tape tightly bonded to the MDPE sheath ensures radial moisture-proof and reinforces mechnical crush resistance as weel as prevents wate ingress longitudinally.
Application:
1. Long-distance communication, local trunk line, CATV & computer networks system
2. Laying modes: Direct Buried


Specification:

Cable count	Out sheath Diameter	Nominal weight	Max.tensile strength(N)		Min.Bending Radius(mm)		Max.Crush Resistance(N/100mm)		Temperature
(Core)	(MM)	(KG)	Short-term	Long-term	Dynamic	Static	Short-term	Long-term	ºC
12	14.5	155	3000	1000	20D	10D	3000	1000	-20~60
24	14.5	155	3000	1000	20D	10D	3000	1000	-20~60
36	14.5	155	3000	1000	20D	10D	3000	1000	-20~60
48	15.5	210	3000	1000	20D	10D	3000	1000	-20~60
60	15.5	210	3000	1000	20D	10D	3000	1000	-20~60
72	15.5	210	3000	1000	20D	10D	3000	1000	-20~60
84	15.5	210	3000	1000	20D	10D	3000	1000	-20~60
96	16.5	275	3000	1000	20D	10D	3000	1000	-20~60
144	19.6	345	3000	1000	20D	10D	3000	1000	-20~60

Order Information:
1.Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2. Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3. Fiber count: 2-144
4.Cable length: 2000M/Drum( customized, MOQ=2000M)
5.Cable Jacket: Outer sheath Black
