24-Core Multimode Om4 Riser Non-Unitized Tight-Buffered Indoor Fiber Optic Cable

Name: 24-Core Multimode Om4 Riser Non-Unitized Tight-Buffered Indoor Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819928315
Availability: InStock
Rating: 4.6 (86 reviews)

Price:	US $ 4.9/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV-OM4-24
Od:	8.5 mm
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	24 Cores
Sheath Material:	PE

Product Description

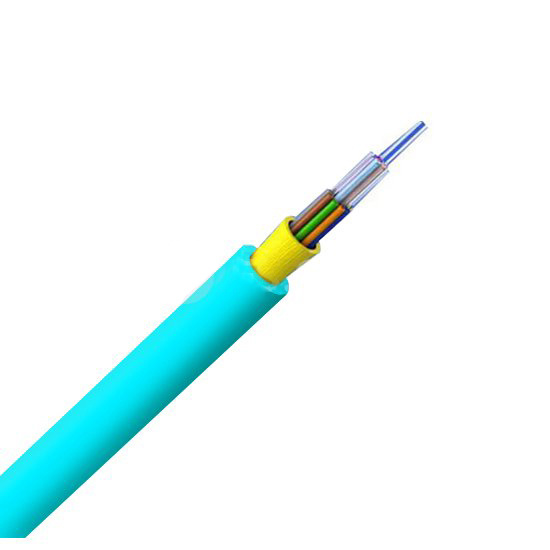

Non-unitized Tight-Buffered Distribution Indoor Cable

Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is Light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipments.

Cable Type	Tight-Buffered Distribution Cable	Fiber Count	24 Fibers
Flammability Rating	Riser (OFNR)	Fiber Type	Multimode 50/125 OM4 (Aqua)
Cable Diameter	8.5mm	Cable Weight	70kg/km
Tensile Strength (long/short term)	534/1780N	Crush Load (long/short term)	200/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-20 to +60°C/-5 to +50°C

Feature and Application

Light weight and compact900μm tight-buffered fibers can be directly terminatedFlexible, flame-retardant & color coded outer jacketFRP central strength member

For premises wiringWork as pigtails and patch cordsOptical communication cables for inside plant installationsAs backbone in LANs

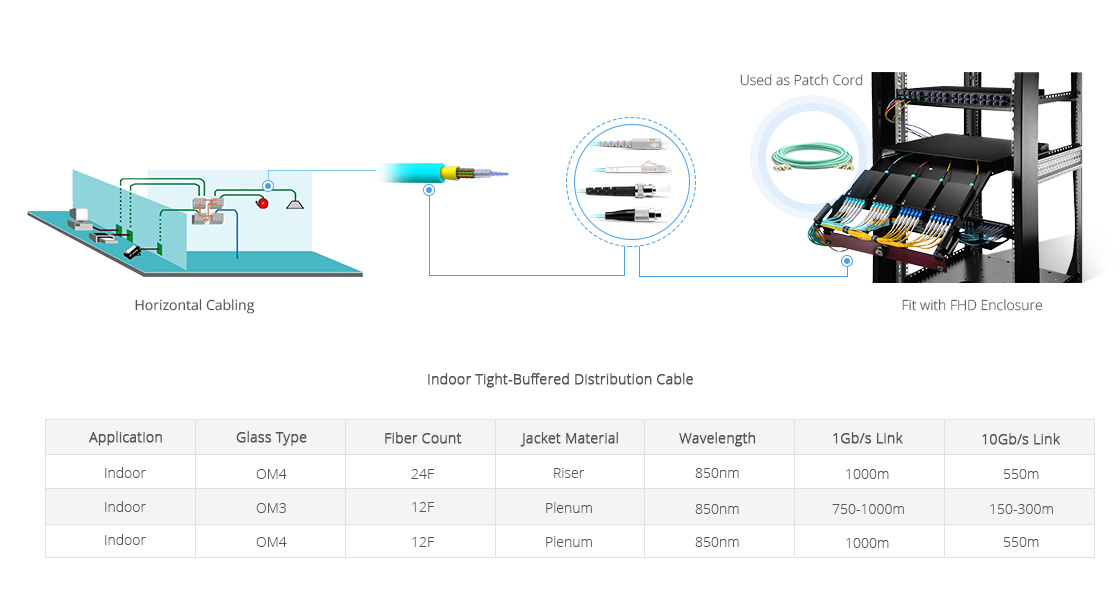

Ideal Solution for Distribution Cables

Distribution cable can be direct connected to optical equipment for the fibers normally have a 900µm buffer. The terminated fibers may be directly connected to equipment without use of a patch panel. The cable is widely used in backbone and horizintal wiring.

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
