24 Core Network Cable for Duct Outdoor G652D Optical Fiber GYXTW

Name: 24 Core Network Cable for Duct Outdoor G652D Optical Fiber GYXTW
Brand: all-electronics-online.com
SKU: 729527275
Availability: InStock
Rating: 4.5 (110 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CIF,FCA
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Max Number Of Fiber:	24 Core
Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / Lszh
Armour Material:	Corrugated Steel Tape
Stranding Member:	Steel Wire or FRP
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello
Application:	Communication
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	Lszh,HDPE,MDPE

Product Description

Singlemode 12Core GYXTW Unitube Light-armored Cable For outdoor application

Description:

1. The fibers, either of single-mode or multi-mode type, are placed in a loose tube made of a high modulus plastic.

2. The tubes are filled with a water-resistant filling compound. A piece of Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

3. The tubes(and fillers) are stranded around the strength member into a compact and circular cable core.

4. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.

5.Then the cable core is covered with a thin PE inner sheath.

6. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteriatic:

1. Two parallel steel wires ensure tensile strength

2. PSP enhances the cable crush resistance, impact resistance and moisture-proof.

3. Accurate fiber excess length ensures good mechanical and temperature performance.

4. Specially designed compact structure is good at preventing loose tubes from shrinking.

5. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.

6. Small diameter, light weight and it is easy to be installed.

7. Crush resistance and flexibility.

Parameter:

Out sheath	Tight buffer	Weight	Minimum allowable		Minimum allowable Crush Load		Minimum Bending Radius		Storage
Diameter	Diameter		TensileStrength(N)		(N/100mm)		(MM)		temperature(°C)
(MM)	(MM)	(KG)	short term	long Term	short term	long term	short term	long term	-40+60
2	8.3	78	1500	600	1000	300	20D	10D	-40+60
4	8.3	78	1500	600	1000	300	20D	10D	-40+60
6	8.3	78	1500	600	1000	300	20D	10D	-40+60
8	8.3	78	1500	600	1000	300	20D	10D	-40+60
10	8.3	78	1500	600	1000	300	20D	10D	-40+60
12	8.3	78	1500	600	1000	300	20D	10D	-40+60

Optical Characteristic:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

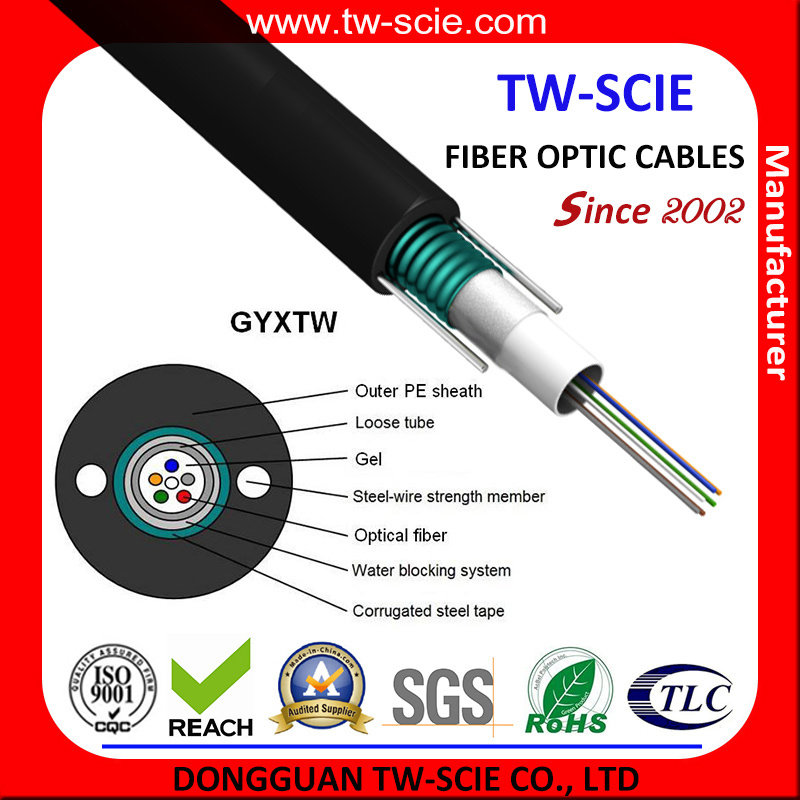

GYXTW Cable shows:

Application:

1. Adopted to Outdoor Direct buried,Aerial, Duct installation

2. Access network and local network in high electromagnetic interfering places.

Standard:

GYXTW cable complies with Standard YD/T 769-2003.
