24 Core Outdoor Cable Fiber Optic 100m Span Self-Support Aerial ADSS

Name: 24 Core Outdoor Cable Fiber Optic 100m Span Self-Support Aerial ADSS
Brand: all-electronics-online.com
SKU: 736814395
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors:	2-288f
Fiber Type:	G652D
Material Of Jacket:	PE/LSZH/Flame Retardan
Fiber:	Single Mode or Multi Mode
Fiber Count:	2-288
Tube:	Loose Tube Stranded /Sz Stranded
Jacket:	Double Jackets Protection
Brand Name:	Tw-Scie Fiber Optic Cable or as Required
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	PE

Product Description

Supply adss optical fiber cable 1km price 12 core to 144 core adss fiber cable FTTH ADSS 24 core fiber optic cable

Description

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

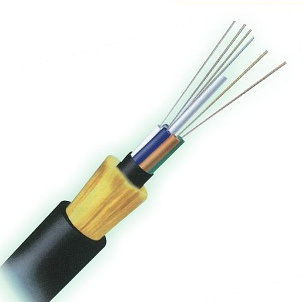

Crossing section

uCan be installed without shutting off the power

uLight weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

uLarge span lengths

uGood performance of tensile strength and temperature

uThe design life span is 30 years

uPackage : 2~4km/ wooden drum

Cable Parameter

Span : 100m	under 110kv	2~30 core
structural parameter	Central strength components : FRP	Diameter : 1.5mm
	Loose tube (jelly filled )	Outer diameter :1.8mm
	Inner sheath PE	Thickness : 0.9mm
	Outer sheath PE	Thickness :1.8mm

Technical parameter	Outer diameter of Cable	11mm
	cable cross-sectional area	95.03 mm2
	Fiber model	G.652
	Weight of cable	98kg/km
	Rated tensile strength (RTS)	10 kn
	Minmum allowed tension (MAT)	4kn
	EDS	3.2kn
	Young's modulus	7.8 kn/mm2
	Coefficient of thermal expansion	1.8 10-6/°C
	Cruss resistance	Long term :1100 n/100mm
	Cruss resistance	Short term:2200 n/100mm
	Permission bent radius	Long term (when running) 220 mm
	Permission bent radius	Short term (when laying) 360 mm
	Operating temperature	When laying -15~+60 °C
		When transporting or running :-40~+70 °C
	Fiber excess length	0.5-0.7%
	Outer sheath	PE
	Ice load	5mm

Applications

uOutdoor aerial applications

uLow voltage transmission system(≤12 kV)

uRailway & Telecommunication pole route

uSubscriber & Local Area Network

uVoice, data, video & imaging system

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
