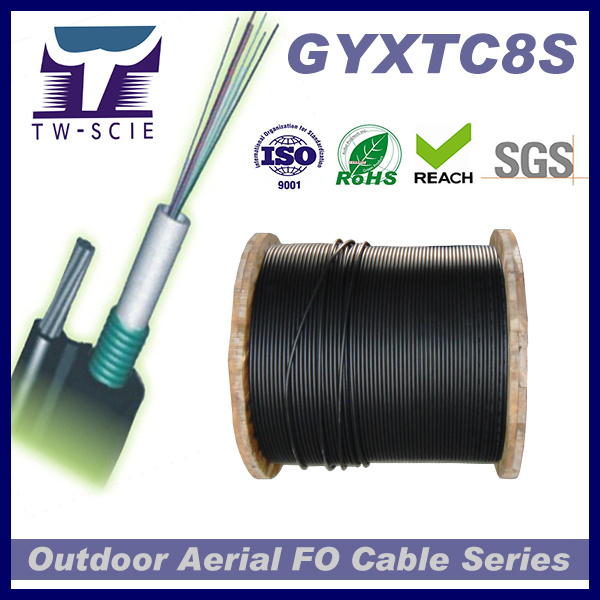

24 Core Single Mode 2~24 Self-Supporting Outdoor Fiber Optic Cable

Name: 24 Core Single Mode 2~24 Self-Supporting Outdoor Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 738869065
Availability: InStock
Rating: 5 (65 reviews)

Price:	US $ 0.3/Meter
Trade Terms:	FOB
Min Order:	2/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Self-Support Aerial
Waterblocking Material:	Water Blocking Tape or Filling Compound
Armour Material:	Corrugated Steel Tape
Fiber Count:	2-24 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, or as Your Requirement
Outer Sheath Material:	MDPE / HDPE / Lszh
Messenger Wire:	1.4mm / 1.0*7-3.0mm
Brand Name:	Tw-Scie Fiber Optic Cable or as Required
Application:	Communication

Product Description

Product Description

Product name	GYXTC8S

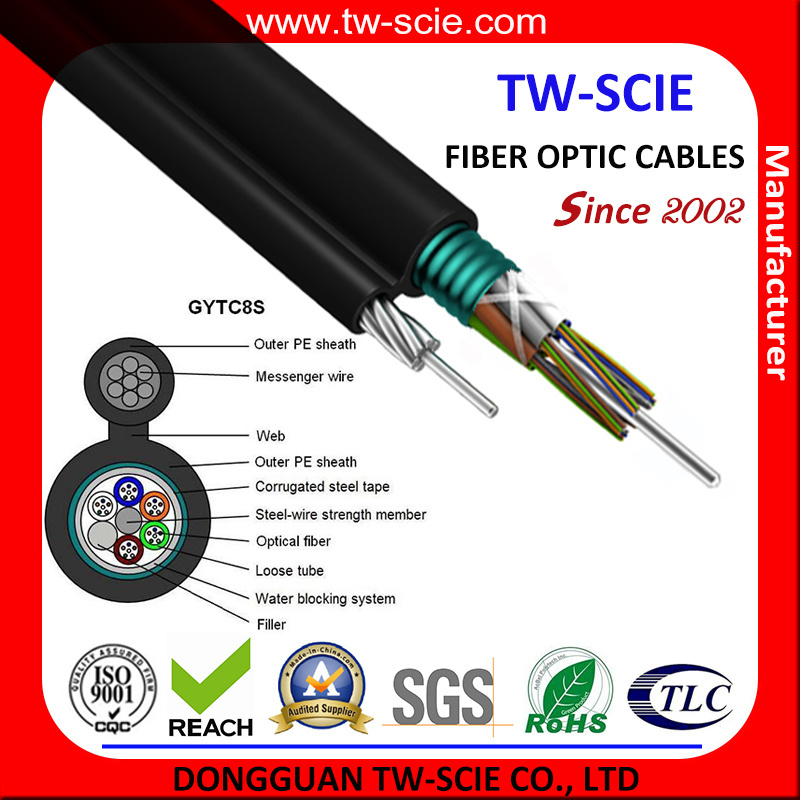

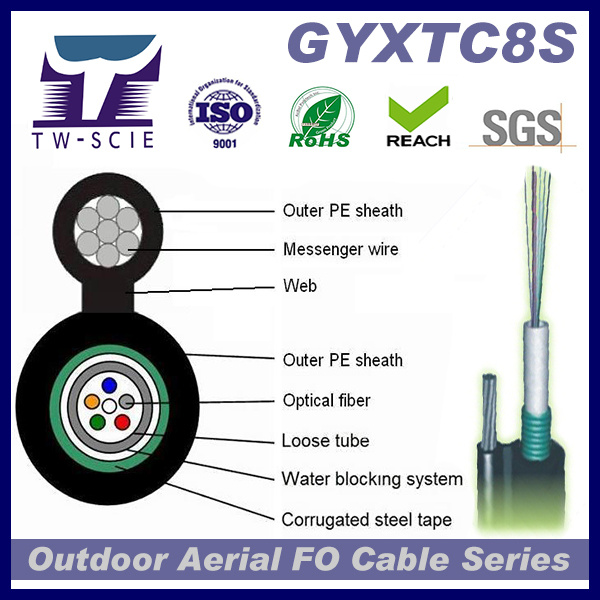

Introduction	GYXTC8S type optical cable is center pipe loosing jacket filling type,steel-PE adhesive jacket,8 font self undertaken type communication outdoor optical cable.
Characteristics	Being used full section water retardant structure it possesses good water retardant and dampproof property
	Special factice is filled into inside of loosing jacket and takes key protection to optical fiber
	Vertical wrapped steel strip strengthens resisting lateral pressure ability
	8 font self undertaken type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap
	The service life of the product will be more 30 years
Standards	Complies with standard YD/T 1155-2001 as well as IEC60794-1.

Packaging & Shipping

Packaging	Wooden drum, 3000m to 5000m/drum or as you required
Shipping methods.	By sea or by air
Sheath mark applied at 1-meter intervals	a. Supplier: Changguang or as customer required
	b. Standard Code(Product Type, Fiber Type, Fiber Count)
	c. Year of manufacture: xxx
	d. Length marking in meters

Fiber Color Code

Company Information

Company Scale	Covering an area of 170,000 square meter,with product lines for fiber optic cable and cable accessories , total more than 150 professional workers
Brands	CHANGGUANG
Production capabilities	5000KM per week
Product series	Indoor and outdoor fiber optic cable, ADSS fiber cable and OPGW cable, fiber optic patch cord, pigtail and other cable accessories

Quality Managament

1,Material Managament.

A: The fibers are from the famous brand fiber supplier in China ,also the required Conring fiber

and Fujika fibers .

B: The kevlar armid yarn and glass yarn with grade A quility

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
