24-Core Singlemode Om1 Single-Armored Double-Jacket Tight-Buffered Indoor/Outdoor Fiber Optical Cable

Name: 24-Core Singlemode Om1 Single-Armored Double-Jacket Tight-Buffered Indoor/Outdoor Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 819668005
Availability: InStock
Rating: 4.7 (20 reviews)

Price:	US $ 4.5/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFZY53-OM1-24
Od:	13 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	24 Cores
Sheath Material:	LSZH

Product Description

24 Fibers SM OM1, LSZH, Single-Armored Double-Jacket, Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable

Tight buffered distribution waterproof indoor/outdoor cable contains 4, 6, 8, 12, or 24, 900μm tight buffered optical fibers with longitudinally applied glass yarn strength members. It features a double LSZH jackets with the outer jacket being of UV stabilised, water and moisture resistant. Between the 2 sheaths there is a corrugated steel tape making the cable rodent proof. The cable is suited for LAN backbones, direct burial, ducts, under floor or ceiling spaces.

Cable Type	Tight-Buffered Distribution Cable	Fiber Count	24 Fibers
Inner/Outer Jacket	LSZH (Black)	Fiber Type	Singlemode G.652
Armor Layer	Corrugated Steel Tape	Strength Member Material	Glass Yarn
Cable Diameter	11.8 ± 0.5mm	Cable Weight	140kg/km
Tensile Strength (long/short term)	500/1000N	Crush Load (long/short term)	1000/3000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-20 to +60°C

Feature and Application

Small cable diameter, high tensile strengthGood mechanical and temperature performanceRobust 900μm tight buffered fibers for ease of terminationOuter jacket has good anti-ultraviolet, water blocking performanceGlass yarn strength members and steel tape armor for rodent resistance

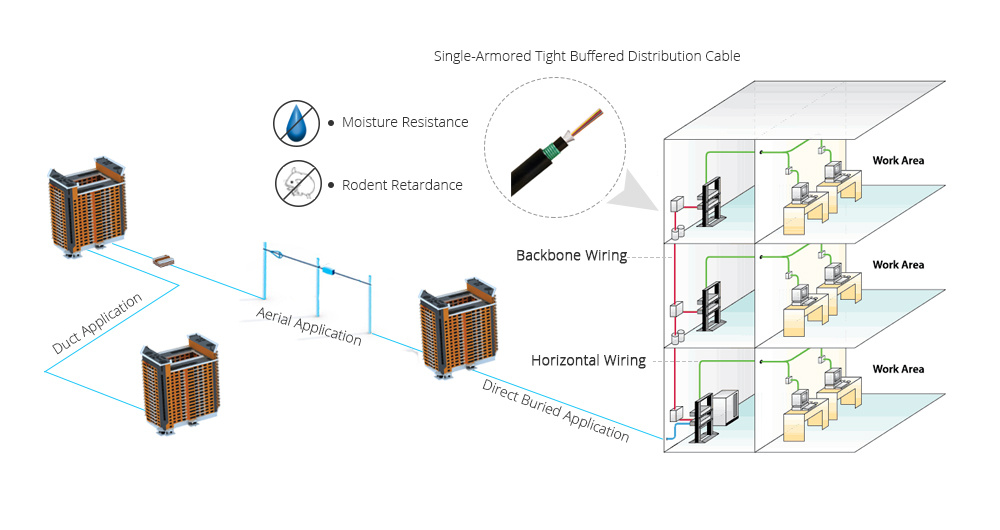

Short run interconnect linksUnder floor or ceiling spacesInstallation in trunking, LAN backbonesDuct/conduit, aerial, direct burial applicationFiber backbones in riser and horizontal configurations

Ideal Solution for Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable

Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
