24 Core Sm Fibre Optic Cable GYTC8S Figure 8 Structure

Prod Model:	GYTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Optical Cable
Ouer Jacket:	Black PE Sheath
Armore:	Armored
Strengthen Member:	Steel Wire
Loose Tube:	Sz Stranding Loose Tube
Brand Of Optical Fiber:	Corning, Fujikura, Draka
Water-Blocking:	Filling Compound
Outer Diameter:	10.4mm
Installation:	Aerial
No. Of Fibers:	2-288cores
Application:	Optical Cable
Type:	Single-mode Fiber
Certification:	Optical Cable
Connection Structure:	Optical Cable

Product Description

24 Core SM Fibre Optic Cable GYTC8S Figure 8 Structure

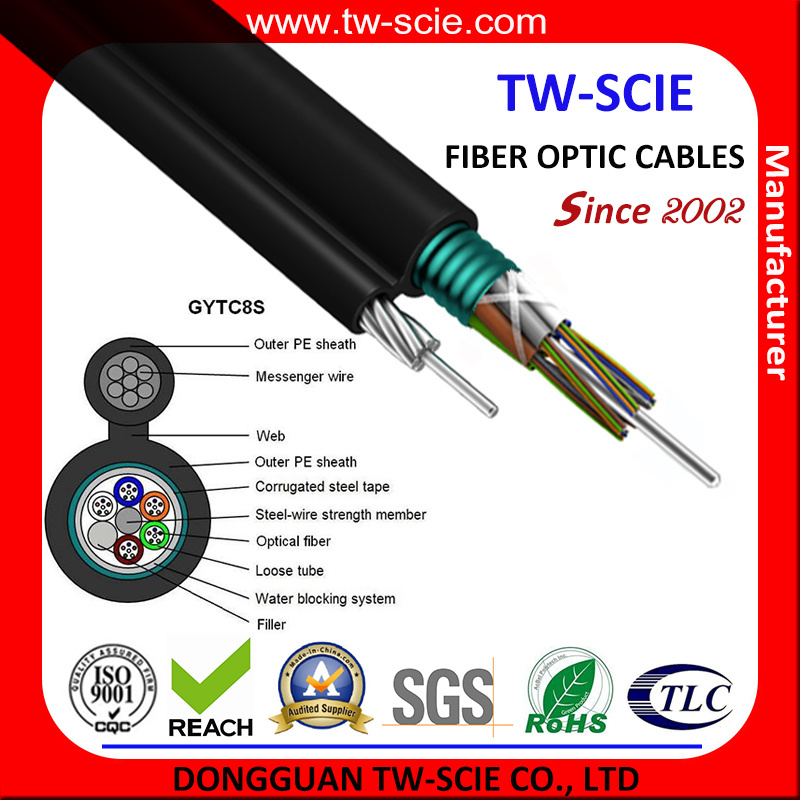

The fibers 250um are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound.A steel wire locates in the center of core as a metallic strength member.The tubes and fillers are stranded around the strength member into a compact and circular cable core. After an PSP moisture barrier is applied around the cable core,this part of cable accompanied with the stranded wires as the supporting part,then they are completed with a polyethylene (PE) sheath to be figure 8 structure.

Characteristics:
High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation cost
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable
water-proof performance
Steel wire used as the central strength member
Loose tube is filled with special filling compound
100% cable core filling
APL moisture barrier


Packaging	Wooden drum, 2000m to 6000m/drum or as you required
Shipping methods.	By sea or by air
Sheath mark applied at 1-meter intervals	a. Supplier: Guanglian or as customer required
	b. Standard Code(Product Type, Fiber Type, Fiber Count)
	c. Year of manufacture
	d. Length marking in meters



FAQ:

1.Do you provide free samples?

yes,we can supply some free samples of value under USD20,the buyer should bear all the shipping cost.

2. Can we become your distributor or agency in our area?

yes ,it is possible if we do not have an agency or distributor in your area.The best way to start the business and approve your good intentions through several regular orders over a period.we will support very good products to our distributor including samples,price and other supports.please contact with our sales manager for more details.

3.Can you supply OEM products under our brand?

yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
