24 Cores MTP/MPO Fiber Optic Patch Cord

Name: 24 Cores MTP/MPO Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 724600822
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	12 Cores / 24 Cores MTP/MPO F
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	RoHS

Product Description

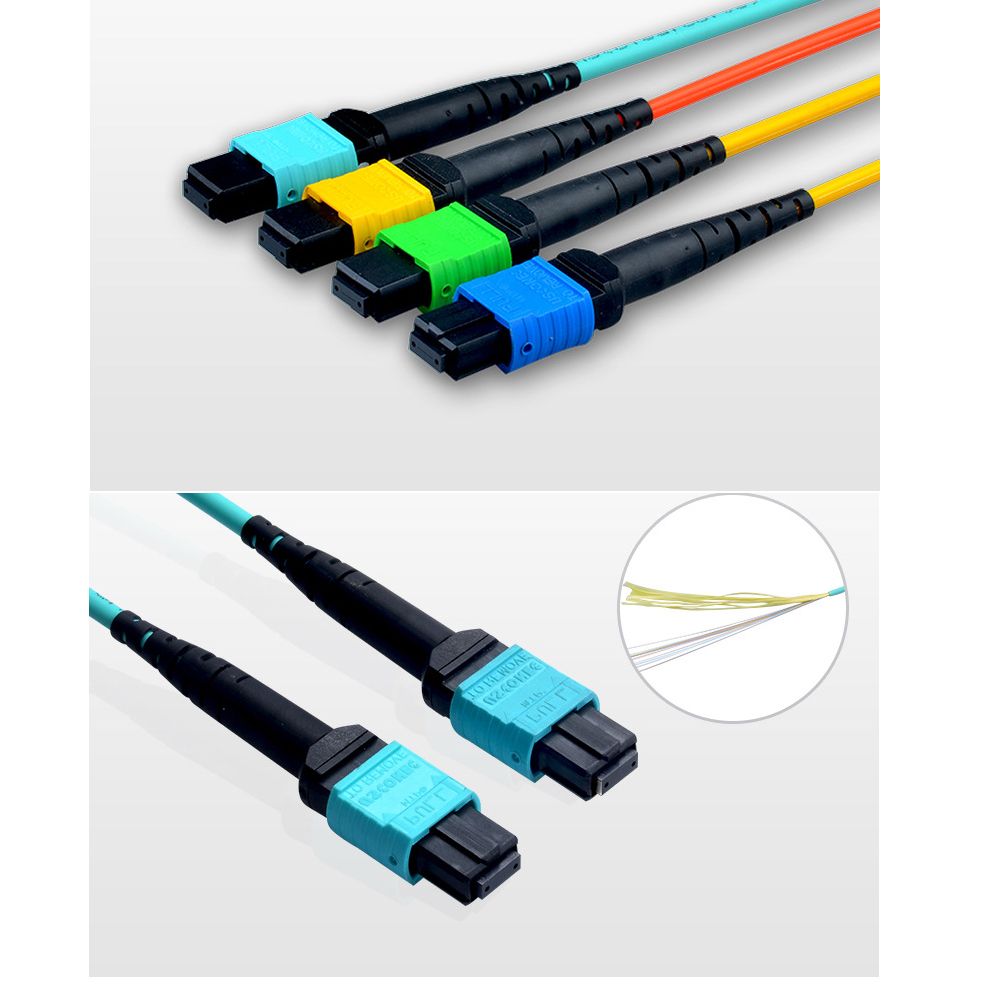

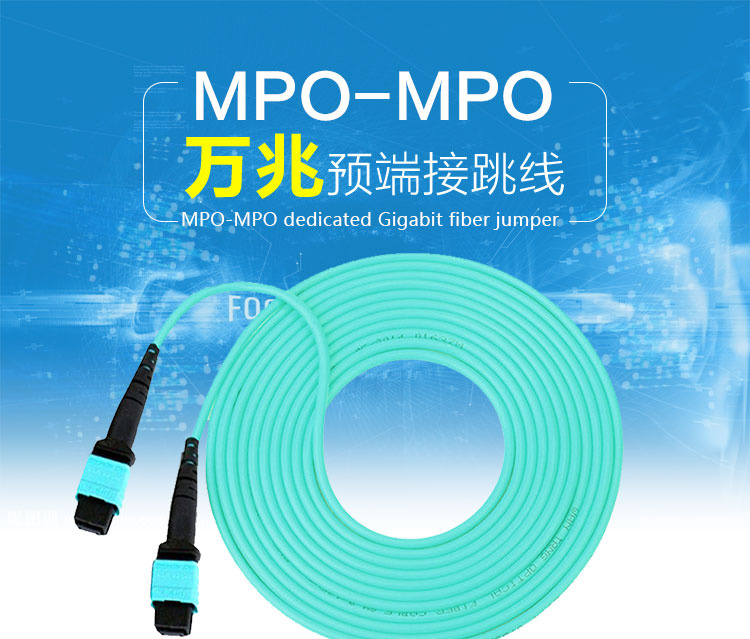

12 Cores / 24 Cores MTP/MPO Fiber Optic Patch Cord

MPO and MTP fiber optic patch cords and cable assemblies, with 8-96 cores, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.

1. CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.

2. Fiber Type: Single-mode/Multi-mode
Fiber Count: 8-96 cores
Cable Type: Bare fiber/Flat/Round

3. Application:
* CATV
* Active dvice termination
*Telecommunication networks
* Metro
* Local Area Networks(LANs)
* Data Processing networks
* Test Equipment
* Premise installations
* Wide Area Networks(WANs)
Fiber Optic Performance:

Item		Parameter
MPO/MTP Connector		Standard SM	Low Loss(Elite) SM	Standard mm	Low Loss mm
Insertion Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Maximum	0.75dB	0.35dB	0.60dB	0.35dB
Return Loss		≥60 for APC (8 Angle Polish)		≥20 for PC
		≥50 for PC		--
Male/Female		Male: With Pins, Female: Without Pins
Tensile Strength		≤0.3 (Max 66N)
Vibration		≤0.3 (10 ~ 55Hz)
Thermal Cycle		≤0.3 (-40 ~ 75ºC, 21Cycles)
