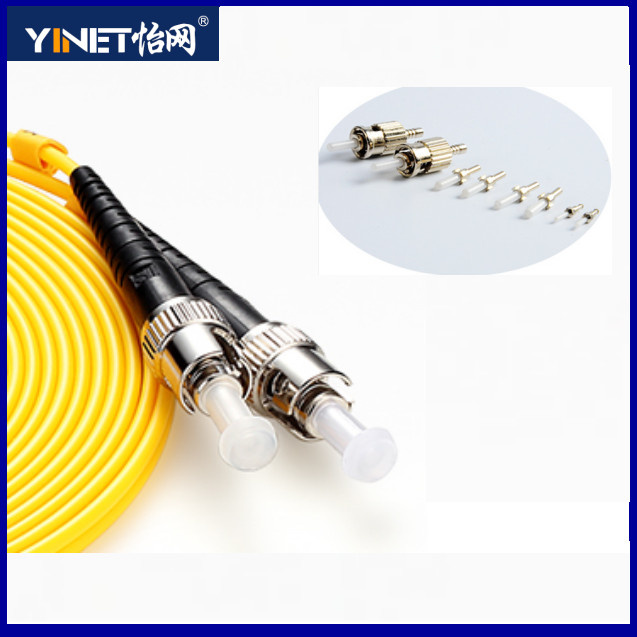

St-St Fiber Optic Patch Cable/Patch Cord
| Price: |
US $ 0.75-0.8piece |
| Min Order: |
1000piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
ST-ST |
| Connector: |
LC-LC, Sc-Sc, FC-FC,St-St |
| Type: |
Single-Mode Fiber |
| Connection Structure: |
St |
| Material Shape: |
Round Wire |
| Allowed Tensile Strength: |
1000n<10000n |
| Core: |
Single Core |
| Certification: |
VDE, Ce, RoHS, CCC, UL |
| Sheath Material: |
PVC |
| Transmission Medium: |
Single-Mode |
| Structure: |
ST |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism.LC patch cord refers to the diagram above for dimensional information.These adaptors are precision made and manufactured to demanding specifications.The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance. ST-ST fiber optic patch cable/patch cord
1.Features:---Good durability---Good exchangeability---High temperature stability---Low insertion loss and back reflection loss---Superior Quality Standard PC/UPC/APC Polishing---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
----Available for
SM, MM, Simplex, Duplex; 0.9mm, 2.0mm, 3.0mm cable diameter option.

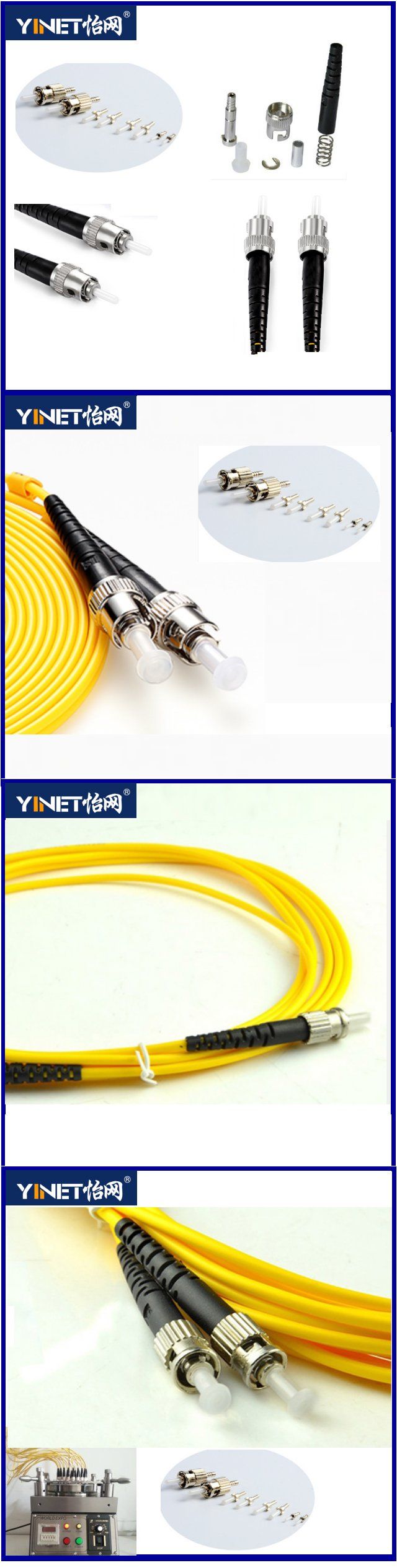

2.Detailed Images:

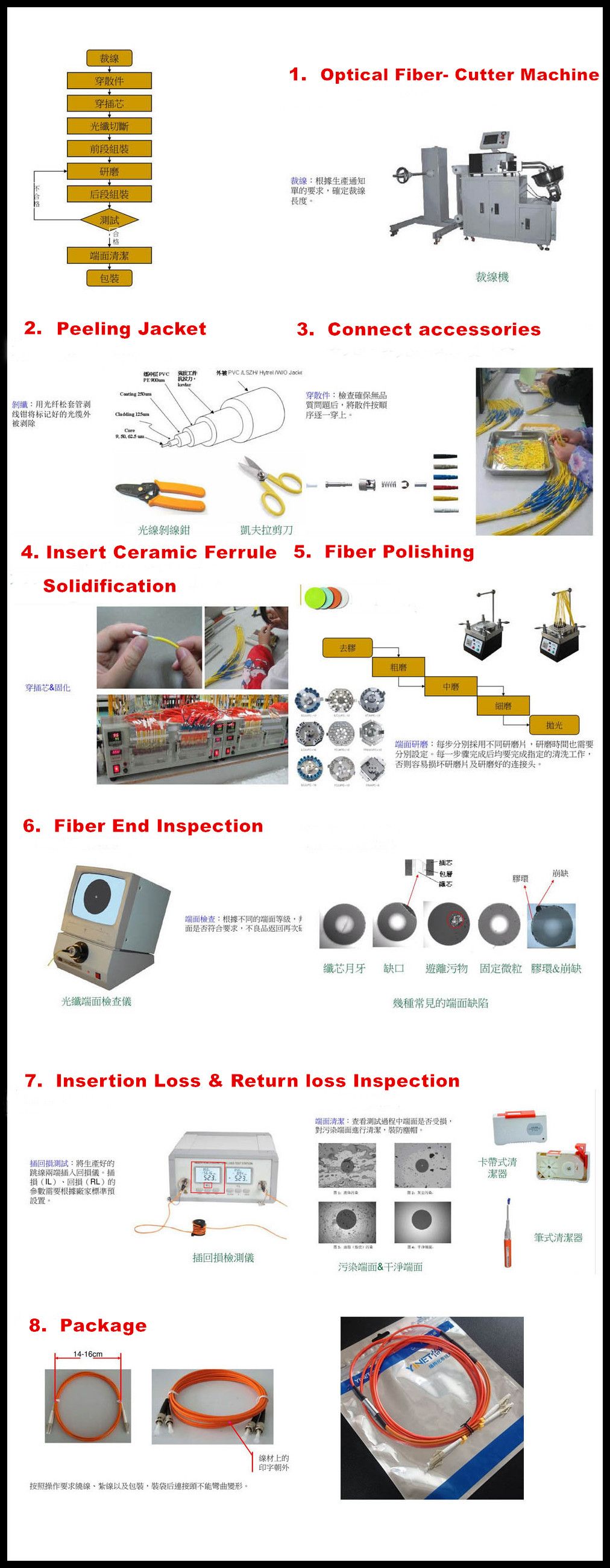

3.Manufacturing procedure:
4.Technical specifications:| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.1 (max≤0.3) |
| Repeatability (dB) | ≤0.1 |
| Durability(1/Matings) | ≥500 |
| Operation Temperature (°C) | -25~+70 |
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
| Fiber | 9/125um, 50/125um,62.5/125um,ect |
| diameter | 0.9mm 2.0mm, 3.0mm etc |
| Cable material | PVC, LSZH |
| Cores | Simplex, Duplex |
5.Application:- Telecommunication
- Testing equipment
- Long-haul telecommunication
- LAN system

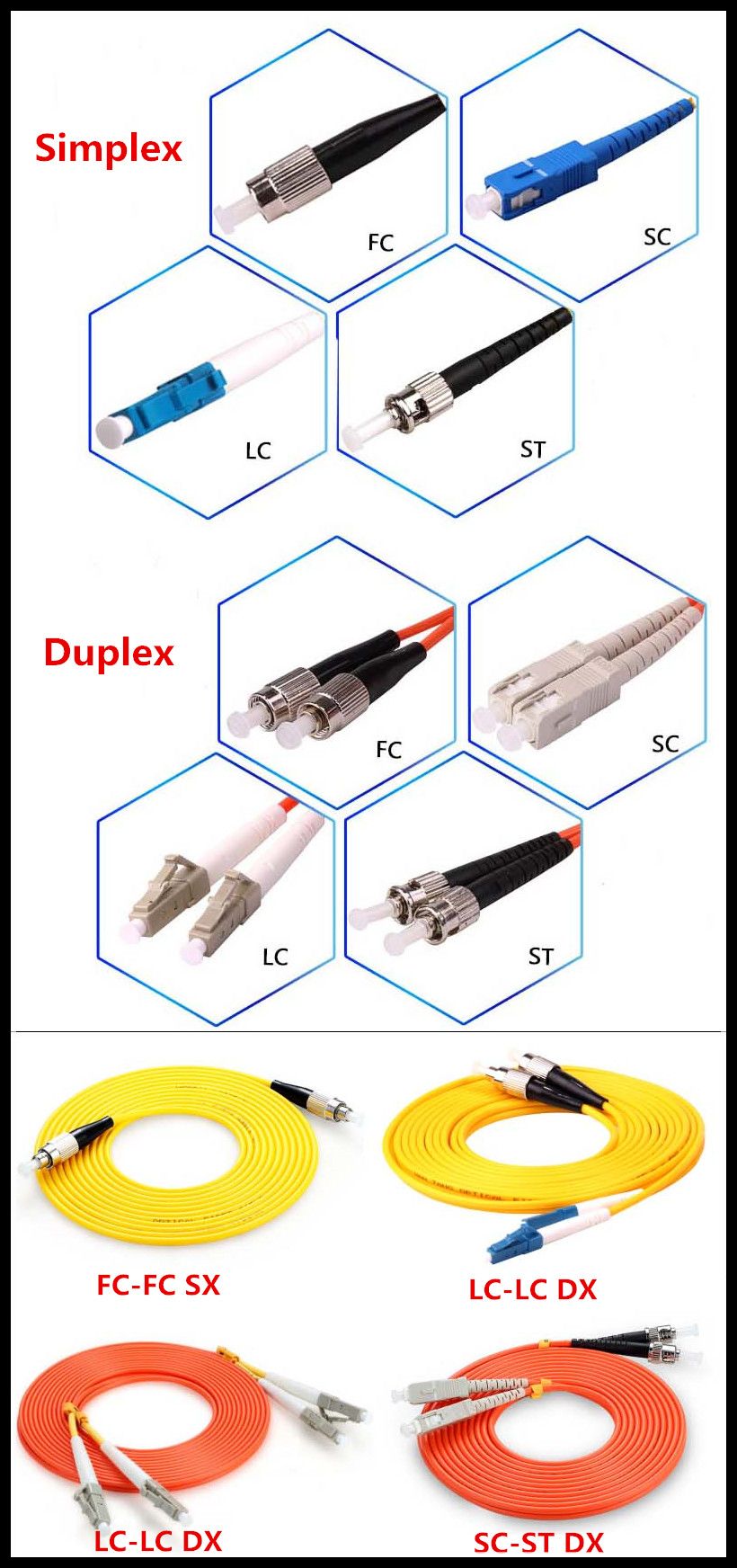

- CATV systems6.Similar Products:
7.Product packing details| Products Packing |
| Inner packing | 1 piece per pvc bag |
| Min order | 100 pieces |
| 100 pieces weight | 2-3kg |
| Outer packing | Carton box |
8.Payment terms| 1) Accepted small order,OEM,etc. |
| 2) Ordinary delivery time: 3-7 days, according to order quantity. |
| 3) Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment |
| 4) Accept T/T 100% advance. Western Union, PayPal. |
| 5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility |
9.About us
10.Contact us| Contacts: Eric S.Ng | Tel: +86-20-8203 8750 ex 811 | Fax: +86-8251 4059 |
| Mob: +86-186 2061 8007 | | |
Our team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.
Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.
Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.
Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.
Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.
Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.
Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
