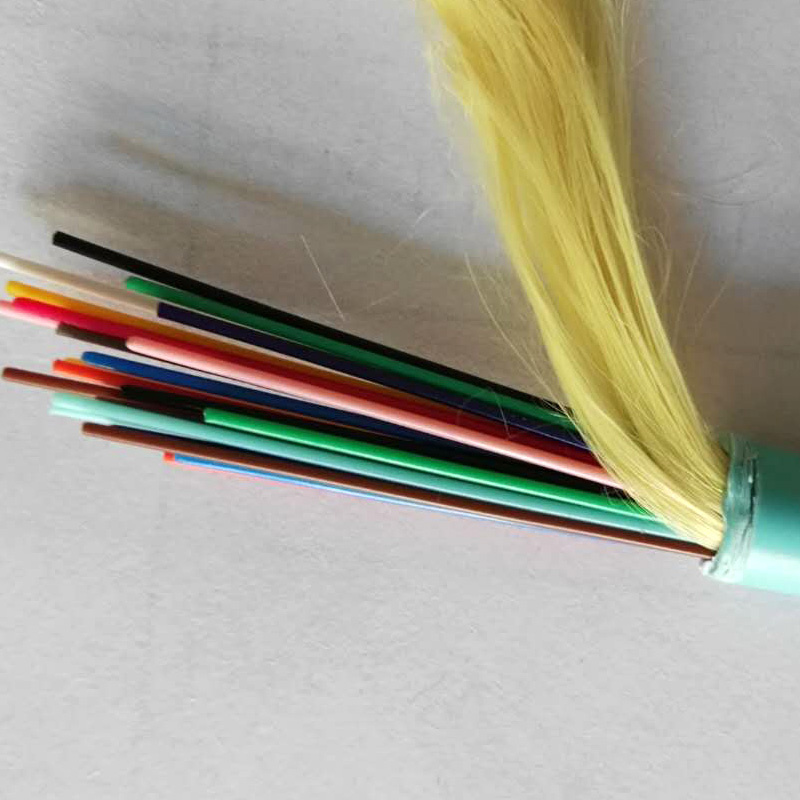

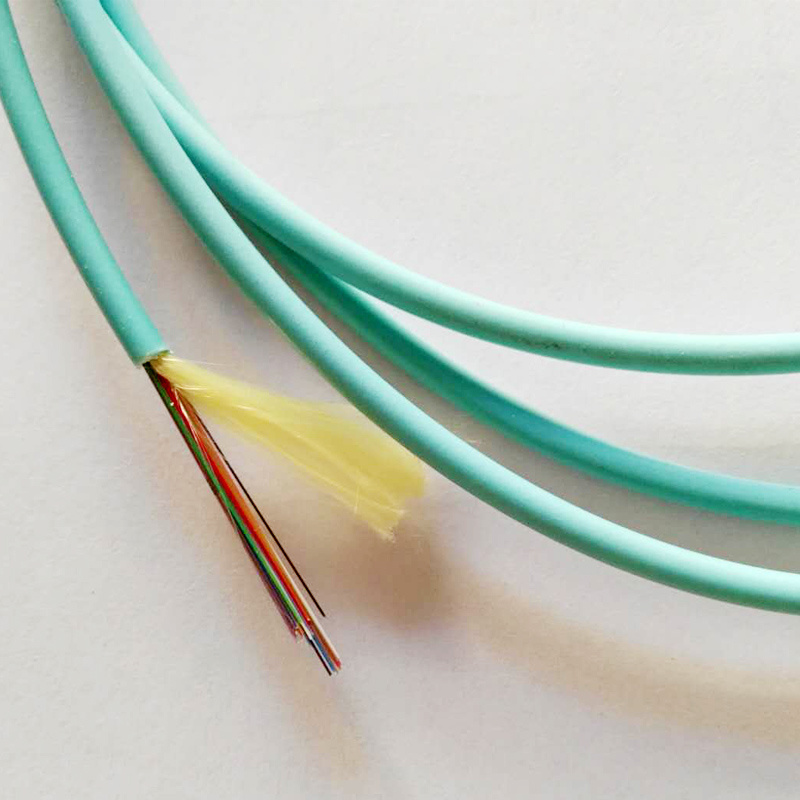

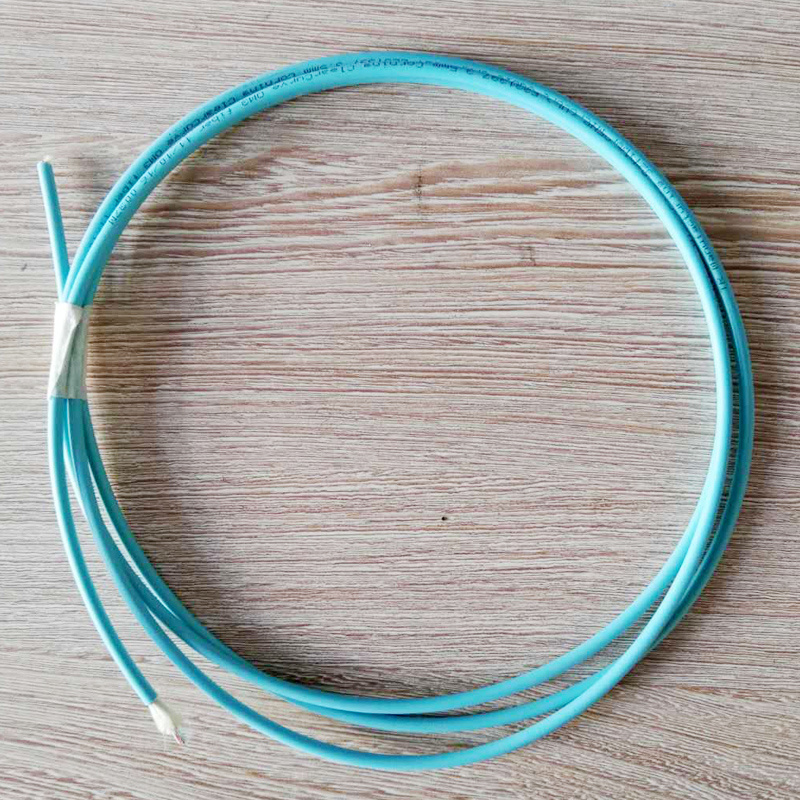

24-Fiber Om3-300 Distribution Optical Cable

Name: 24-Fiber Om3-300 Distribution Optical Cable
Brand: all-electronics-online.com
SKU: 832753635
Availability: InStock
Rating: 4.8 (73 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Distribution optical Cable
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	/Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	/Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λ_cc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

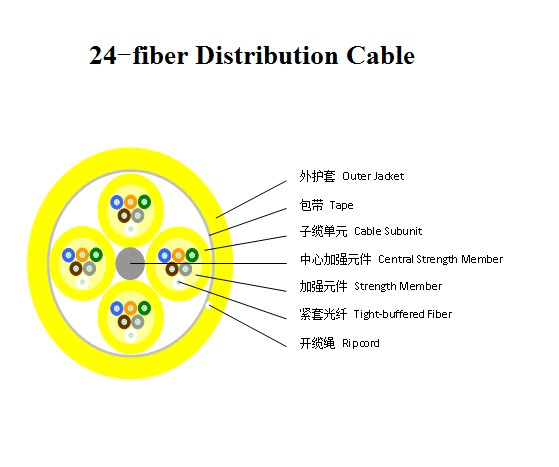

Cable Parameters

Items		Specifications
Fiber Count		24
Tight-buffered Fiber	Dimension	850μm±50μm
	Material	PVC
	Color	Blue,Orange,Green,Brown, Grey,White
Cable Subunit	Dimension	4.8mm±0.2mm
	Material	LSZH
	Color	Yellow
	Strength Member	Polyester Yarn
	Printing Marks	1~4
Central Strength Member	Dimension	2.0mm
Central Strength Member	Material	FRP
Outer Jacket	Dimension	15.0±0.5mm
	Material	LSZH
	Color	Yellow

Mechanical and Environmental Characteristics

Items	Unite	Specifications
() Tension(Long Term)	N	400
() Tension(Short Term)	N	1000
() Crush(Long Term)	N/10cm	300
() Crush(Short Term)	N/10cm	1000
() Min. Bend Radius(Dynamic)	mm	20D
() Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-10~+50
Operating Temperature	ºC	-20~+60
Storage Temperature	ºC	-20~+60
