Multi Purpose Distribution Fiber Optical Cable Multimode 2-96 Fiber Core

Name: Multi Purpose Distribution Fiber Optical Cable Multimode 2-96 Fiber Core
Brand: all-electronics-online.com
SKU: 731128622
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Distribution fiber optical Cable
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

Description

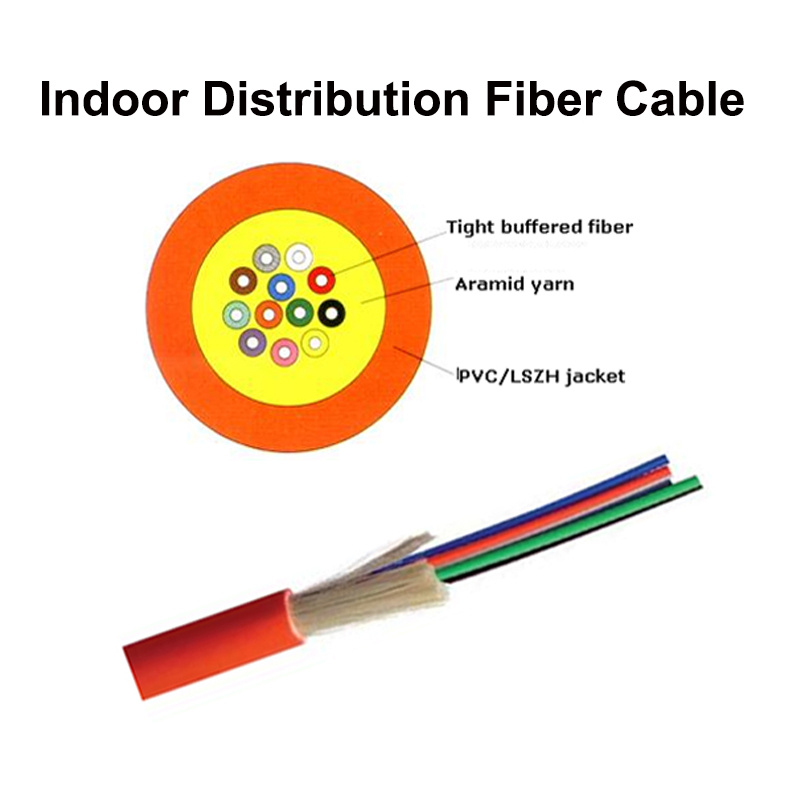

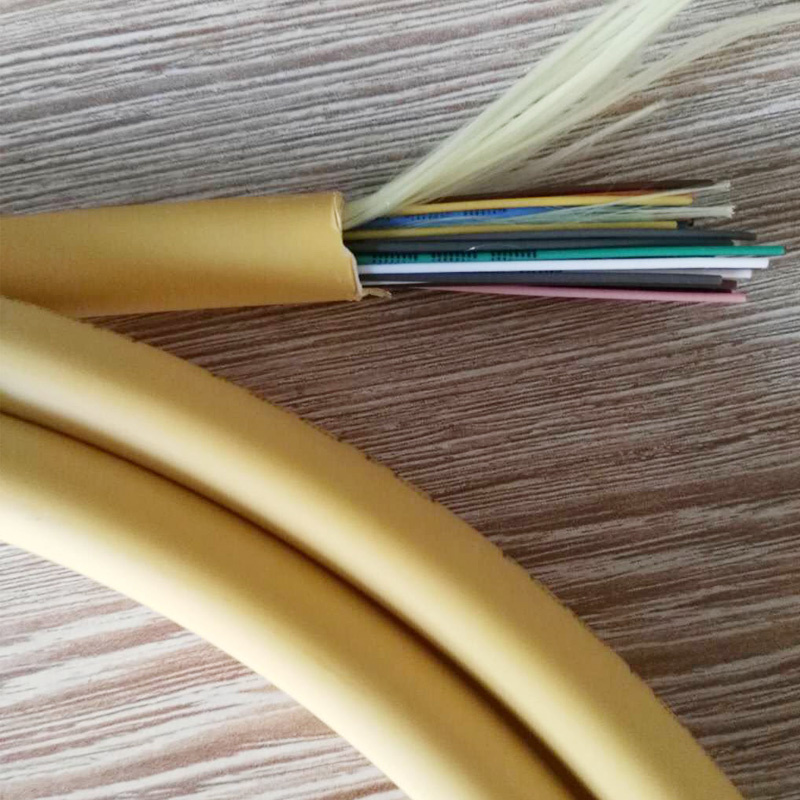

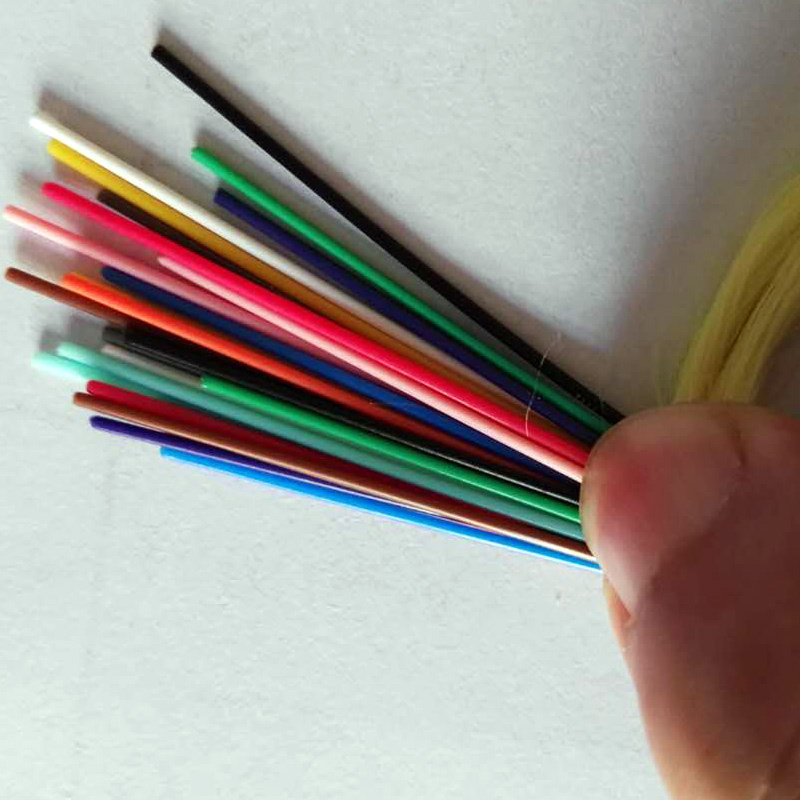

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket.

·Standards

· Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.

·Cable Code

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter (mm)	4.1±0.25	4.8±0.25	5.1±0.25	5.6±0.25	5.8±0.25	6.2±0.25
Cable Weight (kg/km)	11.0	18.4	22	24	27	31
TBF Diameter	900±50μm

·Mechanical Characteristics

Tensile Strength	Long term	200N
Tensile Strength	Short term	660N
Crush Resistance	Long term	300N/100mm
Crush Resistance	Short term	1000N/100mm
Bending Radius	Dynamic	20×D (Cable Diameter)
Bending Radius	Static	10×D (Cable Diameter)

·Optical Characteristics

		50/125μm	62.5/125μm	G.652	G.655
Attenuation(+20ºC)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤1.5dB/km
	@1310nm			≤0.45dB/km	≤0.50dB/km
	@1550nm			≤0.30dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm	≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm	≥1000MHz·km	≥600MHz·km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc				≤1260nm	≤1480nm
Attenuation at temperature cycling Δα(-20ºC~+85ºC)	@1300nm	≤0.50dB/km	≤0.50dB/km
Attenuation at temperature cycling Δα(-20ºC~+85ºC)	@1550nm			≤0.20dB/km	≤0.20dB/km

·Environmental Characteristics

Transport Temperature	-20ºC~+60ºC
Storage Temperature	-20ºC~+60ºC
Installation Temperature	-5ºC~+50ºC
Operating Temperature	-20ºC~+60ºC

Our team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.

Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.

Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.

Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.

Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.

Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.

Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
