Optical Power Composite Cable A Grade Fiber
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Optical Power Composite |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Brand: |
Yinet |
Product Description
Description

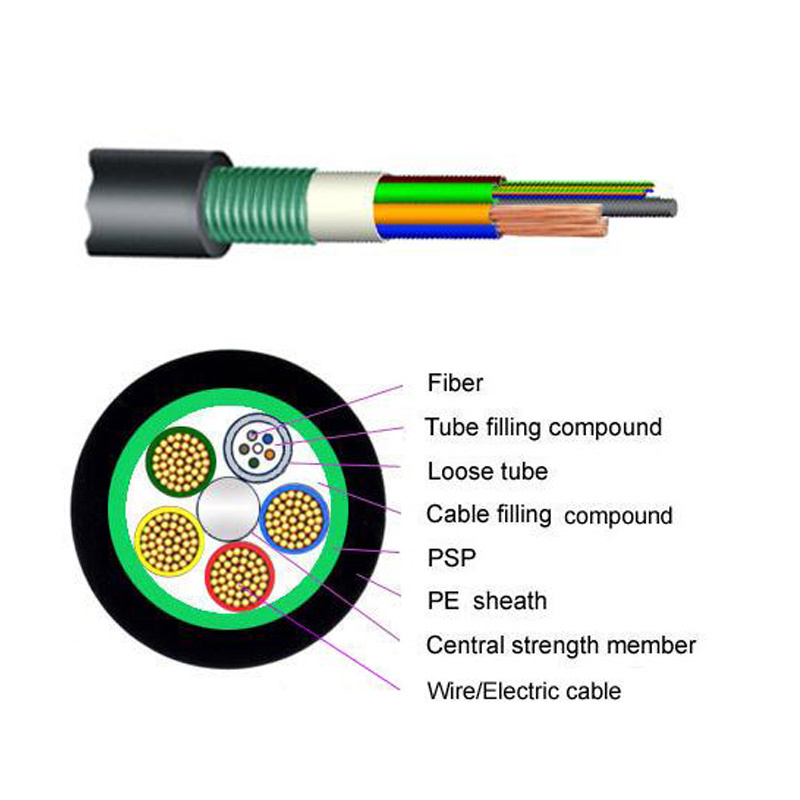

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
·Characteristics
· Good flexibility and mechanical properties
· Opto and electricity integrated, fully save pipeline resources
· Electric and optical cable maintain relatively independent structure, easy to import,
export and link when installation
· Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are
multi-one network, saves costs
· Larger operating temperature range
· Larger construction temperature range
· Cable diameter and bending radius are small, freely install in small space and compatible with
optical signal and electric energy transmission
·Technology advantages
· Perfect design for transmission lines, highly effect for electricity saving.
· Opto and electricity integrated, conveys electric energy and information at the same time, and keep
monitoring wire lines
· Optical fiber compounded in the wire, preventing fiber broken and split accidents by ground l lightning
· Preventing cable suffered corrosion, ruinning or fiber broken accidents caused by field
strength
· Additional load brings no hidden danger for original lines
·Application Fields
· Telecommunications network
· Construction of communication base stations in villages, remote areas in cities and towns
· Residential areas and buildings FTTH
· Security monitoring project
· Others occasion which information together with electric power at the same time
·StandardsStretching, crushing, impacting, repeated bending, torsion, winding and loss complies with YD / T 901-2001.
· Optical Characteristics| | G.652 | 50/125 | 62.5/125 |
| Maximum attenuation | @850nm | | 3.5dB/km | 3.5dB/km |
| @1300nm | | 1.5dB/km | 1.5dB/km |
| @1310nm | 0.45dB/km | | |
| @1550nm | 0.30dB/km | | |
| Typical attenuation | @850nm | | 3.0dB/km | 3.0dB/km |
| @1300nm |
| 1.0dB/km | 1.0dB/km |
| @1310nm | 0.40dB/km | | |
| @1550nm | 0.25dB/km | | |
| Minimum bandwidth | @850nm | | 400MHz·km | 160MHz·km |
| @1300nm | | 800MHz·km | 500MHz·km |
·Technical Parameters| Item | Technical Specifications | Remark |
Bending Radius(mm)
| Dynamic | 30D | |
| Static | 20D | |
Tensile Strength(N)
| Short Term | 3000 | |
| Long Term | 1500 | |
(N/100mm2)
Crush Resistance | Short Term | 3000 | |
| Long Term | 1000 | |
| Operating Temperature range | Electric wire | -15ºC~+70ºC | Comply
with GB5023-1997 |
| Other materials except electric wire | -40ºC~+70ºC | |
| Water-blocking / Waterproof Performance | No water leak if immersed in water for long time | Except
wire conductor |
| No electric leakage |
| Construction Temperature range | -20ºC~+60ºC | Except electric wire |
| 0ºC~+60ºC | electric wire |
| Weight | 347kg/km (RV-2*2.5mm)
382kg/km (RV-4*2.5mm)
502kg/km (RV-6*2.5mm)
628kg/km (RV-8*2.5mm) | |
| Mechanical Properties | Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001 |
| Applicable System of Laying | Suitable for pipe, channel, cable trenches, aerial, direct burial and so on |
Storage/Operating Temperature : -20ºC to + 60ºC
