Non-Metallic Strength Member Fiber Optical Cable Gyhty 36 Core

Name: Non-Metallic Strength Member Fiber Optical Cable Gyhty 36 Core
Brand: all-electronics-online.com
SKU: 731128012
Availability: InStock
Rating: 5 (112 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYHTY
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

Description

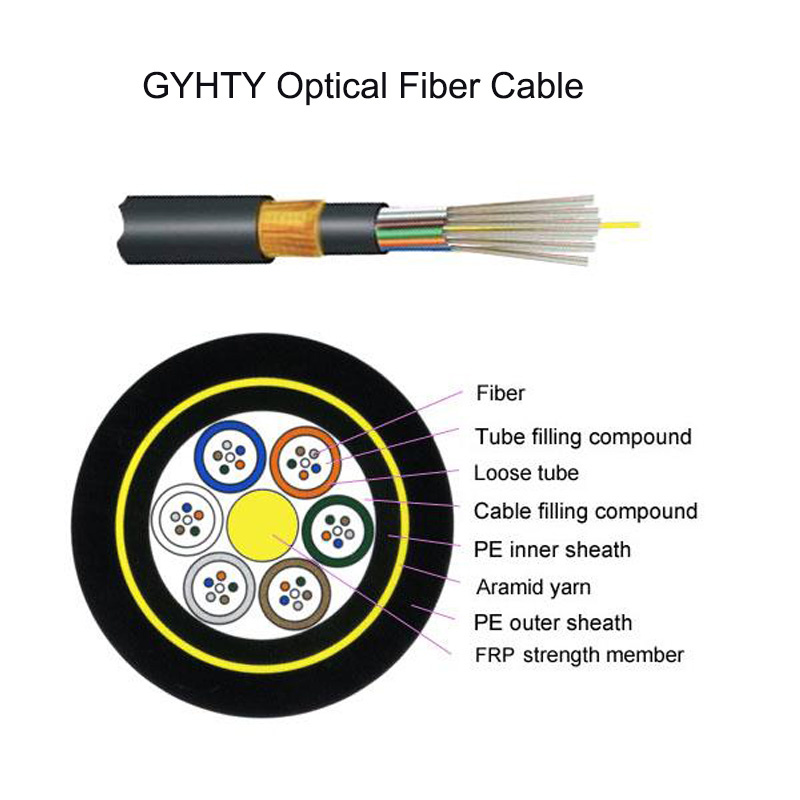

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

·Characteristics
        · Good mechanical and temperature performance
        · Aramid yarn strength member ensures good performance of tensile strength
        · High strength loose tube that is hydrolysis resistant
        · Special tube filling compound ensure a critical protection of fiber
        · Crush resistance and flexibility
        · The following measures are taken to ensure the cable watertight:
                - Single Fiber Reinforced Plastic as the central strength member
                - Loose tube filling compound
                - 100% cable core filling
·Standards
        GYHTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

·Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYHTY-2~6	2~6	1	5	11.0	100	600/1500	300/1000	10D/20D
GYHTY-8~12	8~12	2	4	11.0	100	600/1500	300/1000	10D/20D
GYHTY-14~18	14~18	3	3	11.0	100	600/1500	300/1000	10D/20D
GYHTY -20~24	20~24	4	2	11.0	100	600/1500	300/1000	10D/20D
GYHTY-26~30	26~30	5	1	11.0	100	600/1500	300/1000	10D/20D
GYHTY-32~36	32~36	6	0	11.0	100	600/1500	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
