| Prod Model: |
ADSS |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Brand: |
Yinet |
Product Description
Descripition

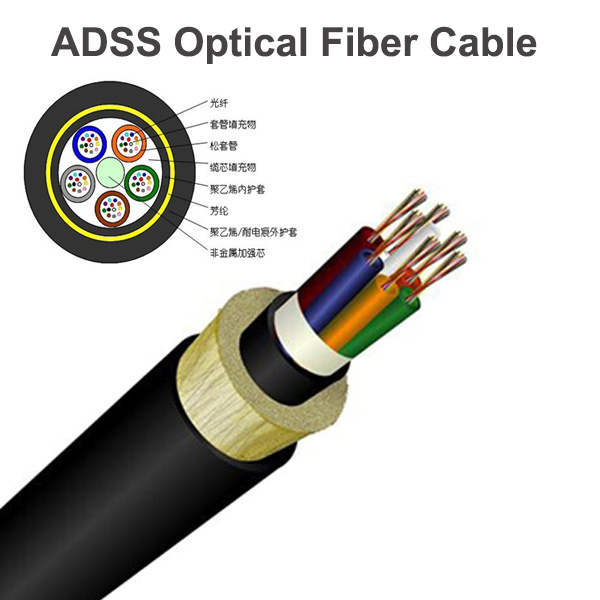

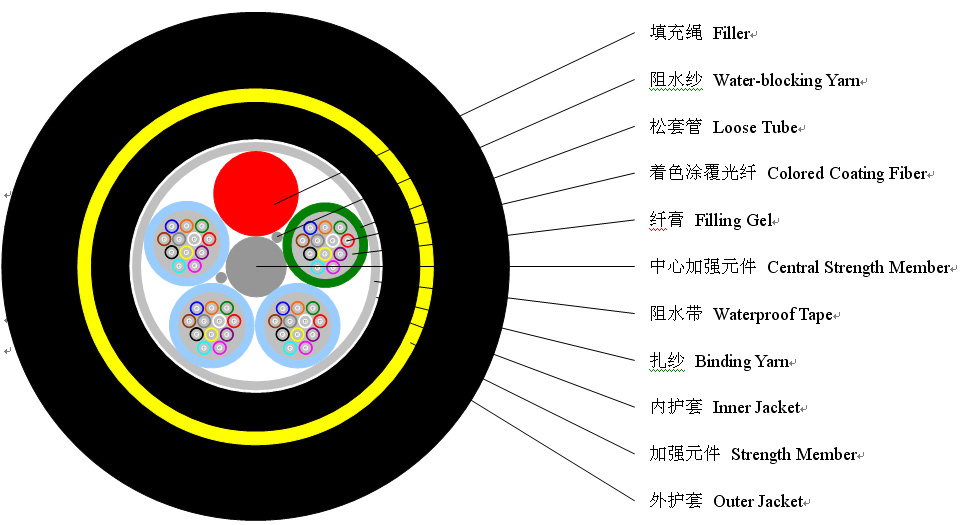

ADSS cable is loose tube stranded.The fibers,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.The tubes(and fillers)are stranded around FRP as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound.It is covered with thin PE inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT outer sheath.
Features:
1.Can be installed without shutting off the power
2.Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25kv
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4.Large span lengths and the largest span is over 1000m.
5.Good performance of tensile strength and temperature
6.The design life span is 30 years
Standards
ADSS cable complies with Standard IEEE 1222-2004 as well as IEC60794-1
| Ref.outer diameter (mm) | Ref.weight(kg/km)sheath | Rec.daily max.working tension(KN) | Max allowable working tensin(KN) | Strength member CSA mm2 | Moulus of alasticity (KN/mm2) | Heat expasion coefficient(x10-6/K) | Suitable span(NESC Standard.m) |
| PE sheath | AT sheath | A | B | C | D |
| 12.5 | 5-4 | 136 | 4 | 20 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 5-11 | 142 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 2472 | 41 | 103 | 48 | 24 | -0.4 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 45 | 108 | 51 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 50 | 120 | 58.8 | 26.1 | -0.8 | 1180 | 880 | 1180 | 900 |
