24-Fibers Singlemode 9/125 OS2 Unitized Tight-Buffered Indoor Fiber Optic Cable

Name: 24-Fibers Singlemode 9/125 OS2 Unitized Tight-Buffered Indoor Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819935765
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	US $ 1.6/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJH-OS2-24
Od:	4.2 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	24 Cores
Sheath Material:	PE

Product Description

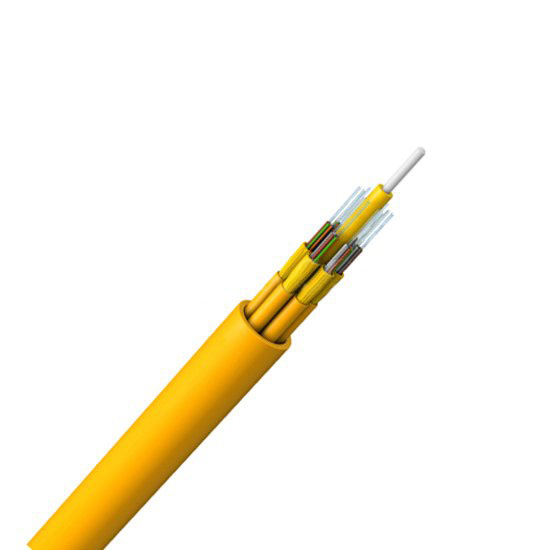

Unitized Tight Buffered Distribution Indoor Fiber Cable GJPFJH

Tight Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. Since the fibers are not individually reinforced, these cables need to be terminated inside a fiber enclosure to protect individual fibers and for distribution use in datacenter.

Cable Type	Tight-Buffered Distribution Cable	Fiber Count	24 Fibers
Flammability Rating	Riser (OFNR)	Fiber Type	Singlemode (Yellow)
Cable Diameter	12.5mm	Cable Weight	186kg/km
Subcable Size	4.2mm	FRP Size	1.8mm
Tensile Strength (long/short term)	400/1320N	Crush Load (long/short term)	200/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-20 to +60°C/-5 to +50°C

Feature and Application

Unitized design for distributing cablesFRP central strength member900μm tight buffered fibers can be directly terminatedFlexible, flame-retardant & color coded outer jacket

For premises wiringAs backbone in LANsOptical communication cables used in fiber enclosuresInternal cable for horizontal distribution or riser applications

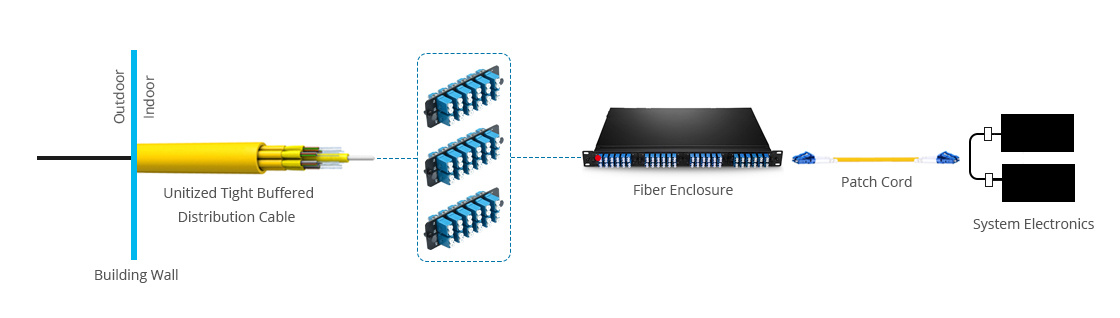

Ideal Solution for Distributing Cables

In situations where the fibers will be mated and unmated frequently, or where there is general access to equipment such as in datacenter, it is advisable to place terminated fibers in a fiber enclosure to avoid damage to the connector or fiber interface. The tight buffered distribution cable are widely used in building backbone and horizonatal cabling to distributing cable from telecommunications room to working areas.

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
