2400W-4800W Solar off-Grid AC Charger Integrated Power Inverter
| Price: |
US $ 50-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
PSC6KVA-96 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase & Waveform: |
Single&Pure Sine Wave Inverter |
| Application: |
Electric Tools |
| Product Name: |
2400W-4800W Solar off-Grid AC Charger Integrated P |
| Capacity: |
3kVA/5kVA |
| Model: |
Psc Plus |
| Warranty: |
2 Years |
| AC Voltage: |
220/230/240V |
| DC Voltage: |
24V/48V |
| Solar Charger: |
40A/60A MPPT Charger |
| Weight: |
5.6kg/10kg |
Product Description
2400W-4800w Solar off-Grid AC Charger Integrated Power Inverter
1.Applications:
3KVA-6KVA PSC high frequency pure sine wave Inverter with charger is mainly used for solar power station;
home solar power systems, mobile solar power system
and DC wind solar generating systems or hybrid power system.
2.Main Features:
1)Two times of rating power.
2)Intelligent cooling fan speed control determined by loads and
pure sine wave output available for sensitive loads.
3) With advanced MCU microprocessor control technology the built-in AC charger will charge batteries automatically and high efficient DC-AC conversion minimizing energy loss.
4) High-frequency switching technology for compact size and light weight.
5) High power density design.
6)Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / over temperature.
7) LCD digital display will show voltage, frequency, battery and load information.

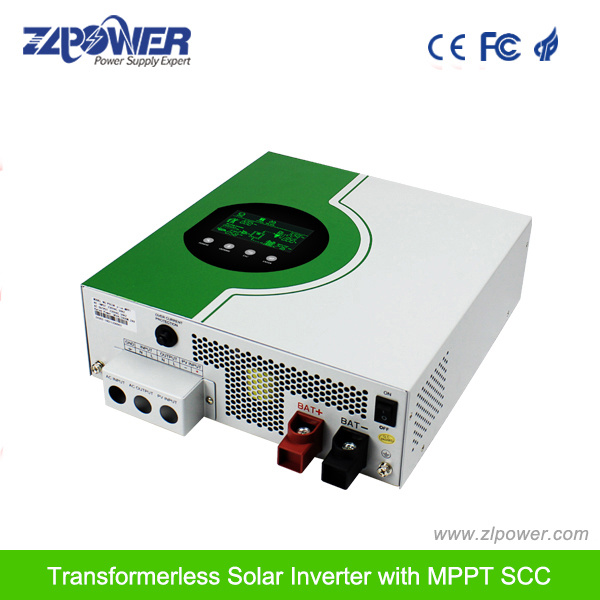

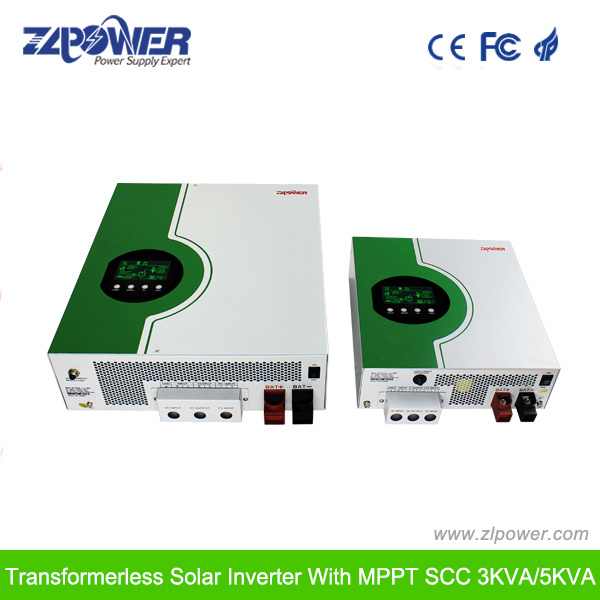

3.Photos:
4.Technical specifications for PSC high frequency pure sine wave inverter:
| Model | PSC 3KVA-24 | PSC 6KVA-48 | PSC 6KVA-96 |
| INPUT Voltage Range | 180-270VAC(Nominal) OR 100-270VAC(General/wide) |
| Rated Output power | 3000VA/2400W | 6000VA/4200W(4800W) | 6000VA/4200W(4800W) |
| Surge Rating | 4800W | 8400W | 8400W |
| Power factor | 0.8 | 0.7/0.8 | 0.7/0.8 |
| Capable of starting electic power | 1.5HP | 2.5HP | 2.5HP |
| Norminal Input Voltage | 220/230/240VAC |
| Norminal Input frequency | 50Hz or 60Hz (Auto detection) |
| Output Voltage | 220/230/240VAC±10% rms |
| Output frequency | 50Hz or 60Hz ±1Hz |
| Norminal Efficiency | >90%(@Norminal DC input;>60% R load) |
| Over-Load protection | fault after 5s 150% ~200% load |
| fault after 10s @ 110%~150% load |
| Norminal Charge urrent | 10A @ Vi/P<170VAC | 20A(95-175v)gen/wide only | 10A(95-175v) gen/wide only |
| 20A @ Vi/P=230VAC | 35A(175-275v) @35A setting | 20A(175-275v) @ 20A setting |
| 10A @ Vi/P>280VAC | 20A(175-275v) @25A setting | 10A(175-275v) @10A setting |
| Output Wave form | Pure sine wave |
| Norminal Input Voltage | 24Vdc | 48Vdc | 96Vdc |
| Charge voltage | 27Vdc | 54Vdc | 108Vdc |
| Over charge protection | Bat.V≥30Vdc,Fault buzzer alarm | Bat.V≥60Vdc,Fault buzzer alarm | Bat.V≥120Vdc,Fault buzzer alarm |
| Output short circuit protection | 30A Circuit Breaker | 40A Circuit Breaker |
| Relative Humidity | 5% to 95% non condensing |
| Operating temperature | 0ºC-45ºC |
| Storage temperature | -15ºC-60ºC |
| Altitude optional | Elevation:0-1500m |
| Dimensions(L×W×H) | 330×269×77mm | 430×350×105mm |
| Net Weight | 4.9 | 8.5 | 8.5 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
