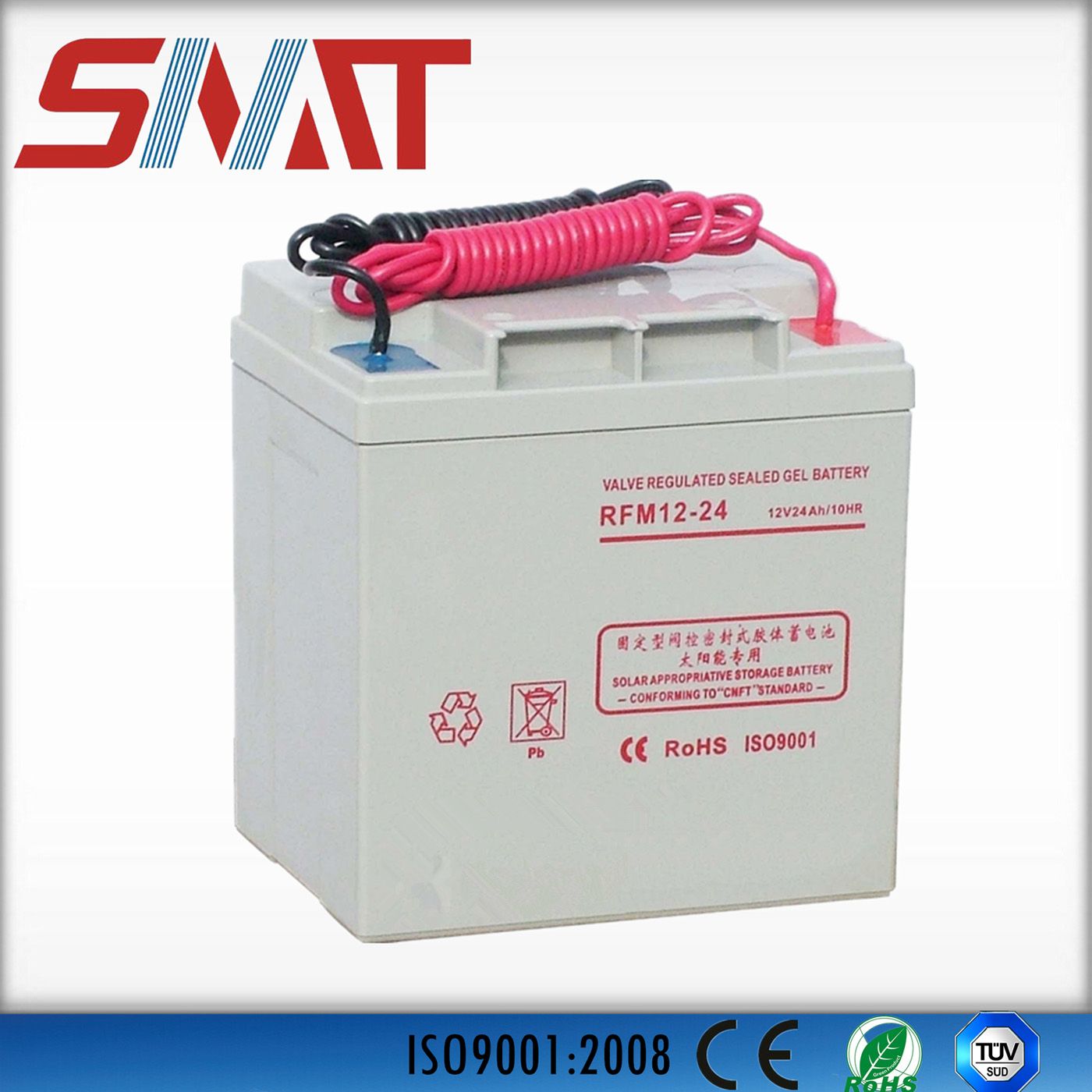

24ah 12V Gel Battery for Solar Power Systems

Prod Model:	Gel-024
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	165*126*126mm
Weight:	8.5kg
Port:	Foshan/Guangzhou
Package:	Carton Package
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Gel Battery
Electrolyte:	Gel

Product Description

Product overview:
Active polymer gel batteries are special supporting products for solar power systems, wind power generation systems, uninterruptible power supplies (UPS), inverters, EPS, street lamps, etc.
Main features:
+ Great charge and discharge bearing capacity
The product has great charge and discharge bearing capacity: It can bear large-current charge (0.8C - 1C) and large-current discharge (30C discharge current within eight seconds) without damage. It can realize ultra-deep discharge and will not get damaged after multiple times of complete discharge.
+ High safety and reliability
It is provided with a full automatic safety valve to avoid damage as a result of an abnormal internal pressure caused by the gas generated in process such as charge. In normal floating charge, it emits neither electrolyte nor acid mist because it is a completely sealed battery. The battery pack will be safer if used with a patented battery tray.
+ Long service life:
The corrosion-resistant multi-element alloy grid including elements such as calcium, lead and tin, and the ABS corrosion-resistant shell, both accurately designed by computer, have extremely high sealed reaction efficiency, thus guaranteeing long service life of battery.
+ Low self discharge rate
A multiple-element alloy including special calcium and lead is used, and the battery separator, the electrolyte and the impurities generated in production procedures are strictly controlled. Thus, the battery not be charged within six months can be used normally at 20ºC.
+ Great conductivity
With copper-core silvered terminals and special design, the product has extremely great electrical performance.
+ Great adaptability to environment
The product adapts to severe climates and can even be used at an ambient temperature of -25ºC to 50ºC.
+ Great directionality
The product has high sealed reaction efficiency, so it can be used normally and has no leakage when placed vertically or horizontally.
+ Environment friendliness
It is quiet and generates no pollutants, so it can be put in the same room with articles such as electronic instruments and the battery room needs no corrosion-proof actions against acids.
+ A longer life and deep cycle
Made of a multi-element special lead-tin positive alloy, the product has greater corrosion resistance and a longer cycle life than conventional lead-calcium alloy.
The product has a larger output power because of the optimized radial design of its grid.
The unique lead paste formula and manufacturing process benefit the formation of 4BS and guarantee a long floating charge life.
Reasonable use of additives makes PCL (premature capacity loss) solved better.

Model	24AH
External dimensions (L*W*H)	165*126*126
Net weight	8.5KG
Package/material	Carton package
Voltage	12V
Internal resistance of battery	After the battery is fully charged (25°  C)	≤10mΩ
Battery capacity at different temperature	60°  C	104%
	25°  C	100%
	0°  C	95%
	-50°  C	86%
Rated capacity (AH) at different hours	10hr	100%C10
	30hr	110%C10
Storage capacity of battery	One month (25°  C)	95%
	Three months (25°  C)	90%
	Six months (25°  C)	88%
Max charge current	02.5C10 (A)
Charge voltage limit	Voltage of equalizing charge	14.4V/12V - 25mV/C
	Voltage of floating charge	13.5V/12V - 20mV/C
