24AWG FTP Cat. 5e Solid LAN Cable

Name: 24AWG FTP Cat. 5e Solid LAN Cable
Brand: all-electronics-online.com
SKU: 817627495
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	Negotiable/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLF5CB241
Copper Diameter:	24AWG
Outer Diameter:	6.1mm
Weight:	11kg/Kft
Shielding Material:	Al Foil
Minimum Bend Radius:	O.D.*6-8
Jacket Material:	PVC/LSZH
Packing:	Carton
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 5
Certification:	ETL,Fluke
Model:	LAN Cable
Brand:	Sur-Link

Product Description

Product model:SLF5CB241

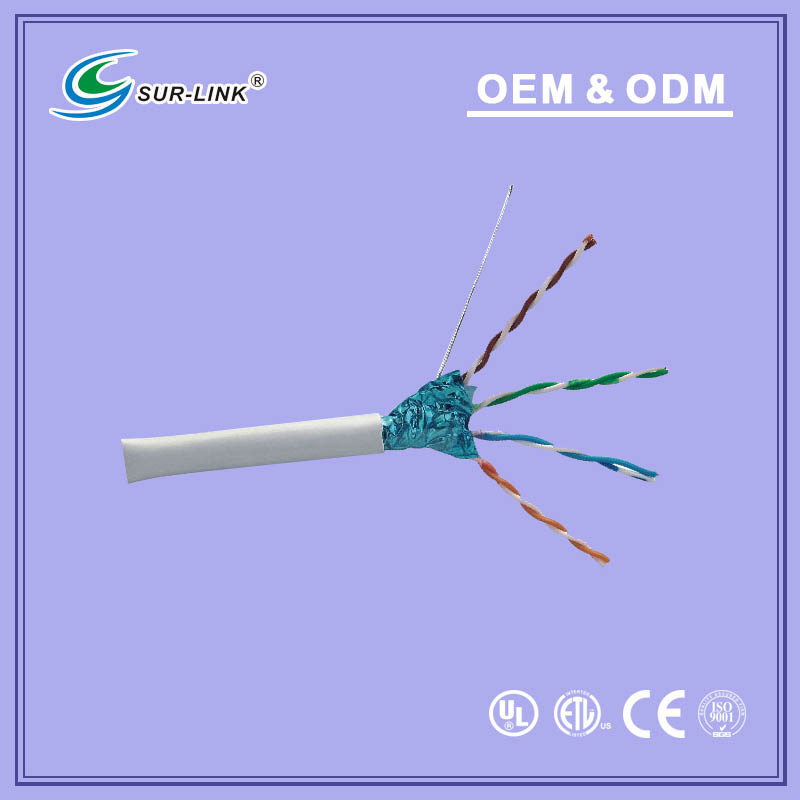

Description:LAN Cable FTP Cat.5e Solid Grey, 24AWG

PRODUCT DESCRIPTION

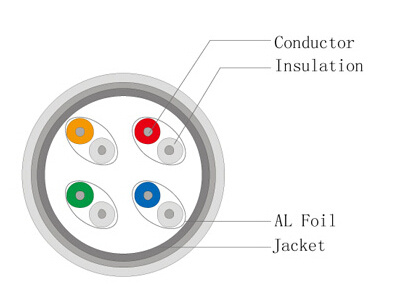

This kind of cable use bare copper to be the center conduction, with the specification si 24AWG; PE is adopted to be the dielectric; Each pair of the coppers is covered by polyester film and AL foil even outer. The erath wire is installed between these two covers. The jacket is made of fireproof material, and it's so significative to the Cat.5e communication. Beside, LSZH is also at option. Various colors make network much easier. This Cat.5e FTP cable is well conformed to the ISO/IEC, TIA/EIA and EN standards and whose electrical characteristics are exceed the lastest ISO/IEC Cat.5e standards.

ELECTRICAL CHARACTERISTICS
1.  Impedance: 100±15
2.  Static electric capacity: max: 17.1nf/kf
3.  Resisitance: max: 28.6/kf
4.  Unbalance resisitance: max 5%
5.  Unbalance capacity: max 330pF/100m
6.  Roted communicate rate: 65%

PHYSICAL CHARACTERISTICS
1.  Copper diameter: 24AWG
2.  Outer diameter: 6.1mm
3.  Shielding material: AL foil
4.  Earth wire: No.24 bare copper
5.  Weight: 11kg/kft
6.  Minimum bend radius: O.D.*6-8
7.  Maximum pulling tension: 10kg
8.  Jacket material: PVC/LSZH
9.  Roted temperature: -20~60ºC
10. Packing: Carton

APPLICATION
1.  10/100/1000Mbps Ethernet;
2.  100VG-AnyLAN;
3.  Token ring;
4.  ATM155/ATM622 etc;

STANDARD
1.  ISO/IEC-11801
2.  EN-50173
3.  TIA/EIA-568-A-5

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SLF5CB241	LAN Cable FTP Cat.5e Solid Grey,24AWG	305 m/box	373722 cm	12 kg
