24c Fiber Optical Cable with Figure-8 Self-Supporting Gyxtc8s Type-G

Name: 24c Fiber Optical Cable with Figure-8 Self-Supporting Gyxtc8s Type-G
Brand: all-electronics-online.com
SKU: 753268505
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	Gyxtc8s
Installation Style:	Aerial
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT with Jerry
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / LSZH
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Type:	Single-mode Fiber
Certification:	ISO9001
Application:	Telecommunication

Product Description

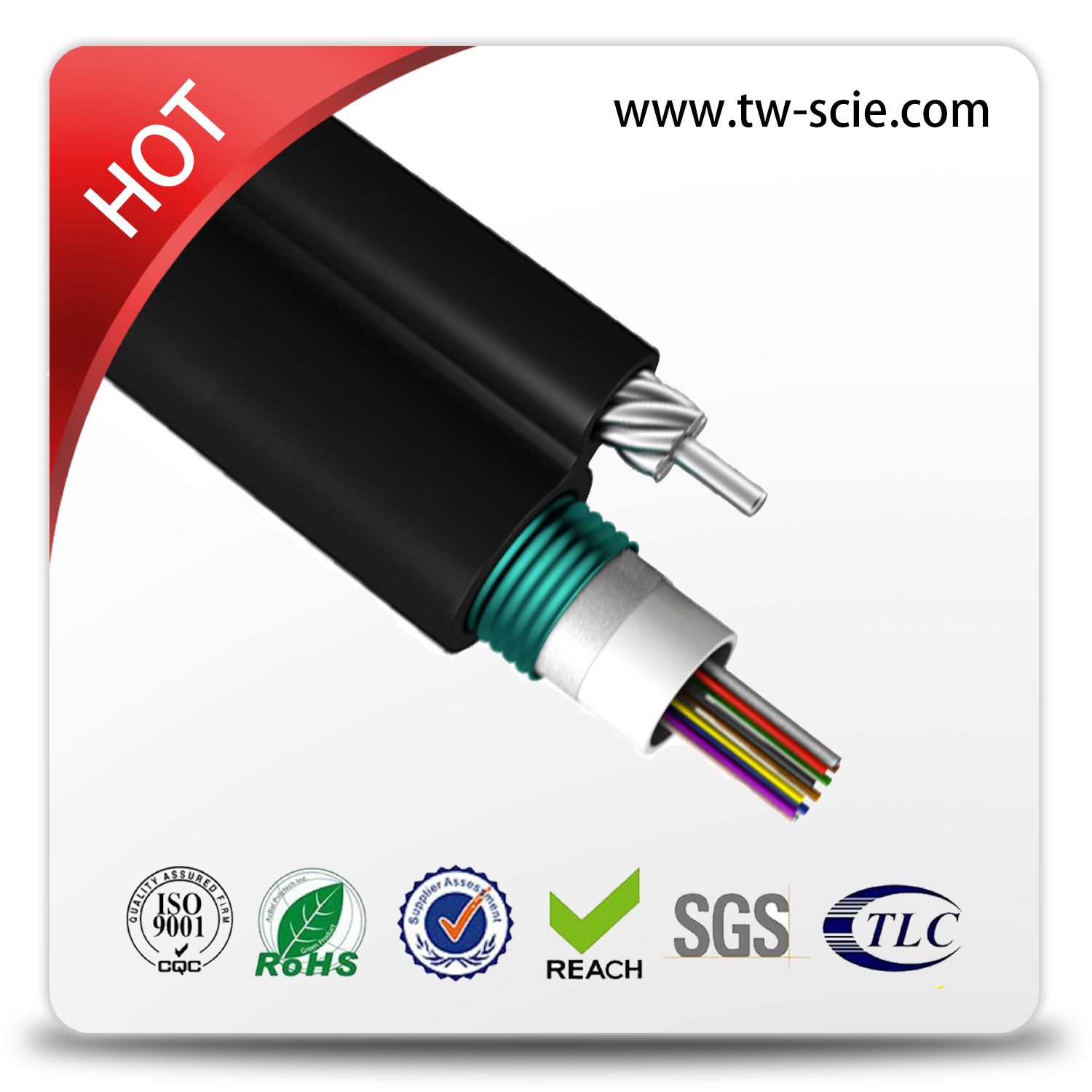

24C Fiber Optical Cable with Figure-8 Self-Supporting GYXTC8S Type

Application:

☆.Adopted to outdoor distribution.
☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.

Characteristics:

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
☆.Fiber count: 2-24 cores.

Fiber Allocation Scheme

Fiber number	Tube number	Fiber per tube	Fiber type
2	1	2 F/Tube	SM G652D MM 50/125 MM 62.5/125
4	1	4 F/Tube
6	1	6 F/Tube
8	1	8 F/Tube
12	1	12 F/Tube
24	1	24 F/ Tube

Cable Construction Details

Items		Description
Number of fiber		2 cores to 24cores
Connector strength member	Material	Galvanized steel wire
Connector strength member	diameter	1.2 mm
Loose tube	material	PBT
Loose tube	diameter	Ф2.0-2.8
Cable filling	material	Cable filling compound
Outer sheath	material	HDPE
Outer sheath	diameter	1.7±0.2mm

Cable Mechanical Characteristic

Items		Cable diameter	Weight
2 cores to 24 cores		3.2*7.2 mm	70 kg/km
Installation Temperature range		-15--+60
Operation and transport temperature		-40-+70
Rec.daily max working tension		1500 N
Max. Allowable working tension		600 N
Min Bending Radius(mm)	operation	10D mm
	installation	20D mm
Extra load	0.5%-0.7%
Ice	5mm
Wind speed	35m/s

Fiber Characteristic

Fiber style			Unit	SM G652D	MM 50/125	MM 62.5/125
condition			nm	1310/1550	850/1300	850/1300
attenuation			dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Dispersion		1310nm	Ps/(nm*km)	≥-3.4 ≤3.4	.....	.....
		1550nm	Ps/(nm*km)	≤18	.....	.....
		1625nm	Ps/(nm*km)	≤22
Bandwidth		850nm	MHZ. KM	.....	>=400	>=160
Bandwidth		1300nm	MHZ. KM	.....	>=800	>=500
Zero dispersion wavelength			nm	>=1302,≤1322	.....	.....
Zero dispersion slope			Ps(nm2*km)	≤0.091	.....	.....
PMD Maximum Individual Fiber			Ps√km	≤0.2	.....	.....
PMD Design Link Value			Ps√km	≤0.08	.....	.....
Fibre cutoff wavelength λc			nm	>=1180,≤1330	.....	.....
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	.....	.....
MFD	1550nm		um	10.4±0.8	.....	.....
Numerical Aperture(NA)				......	0.200±0.015	0.275±0.015
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.10	≤0.10
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.10	≤0.10
Difference backscatter coefficient			dB/km	≤0.03	≤0.08	≤0.10
Attenuation uniformity			dB/km	≤0.01	.......	.......
Core diameter			um	......	50±1.0	62.5±2.5
Cladding diameter			um	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity			%	≤1.0	≤1.0	≤1.0
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤1.5	≤1.5
Curl(radius)			um	≤4	.....	.....
