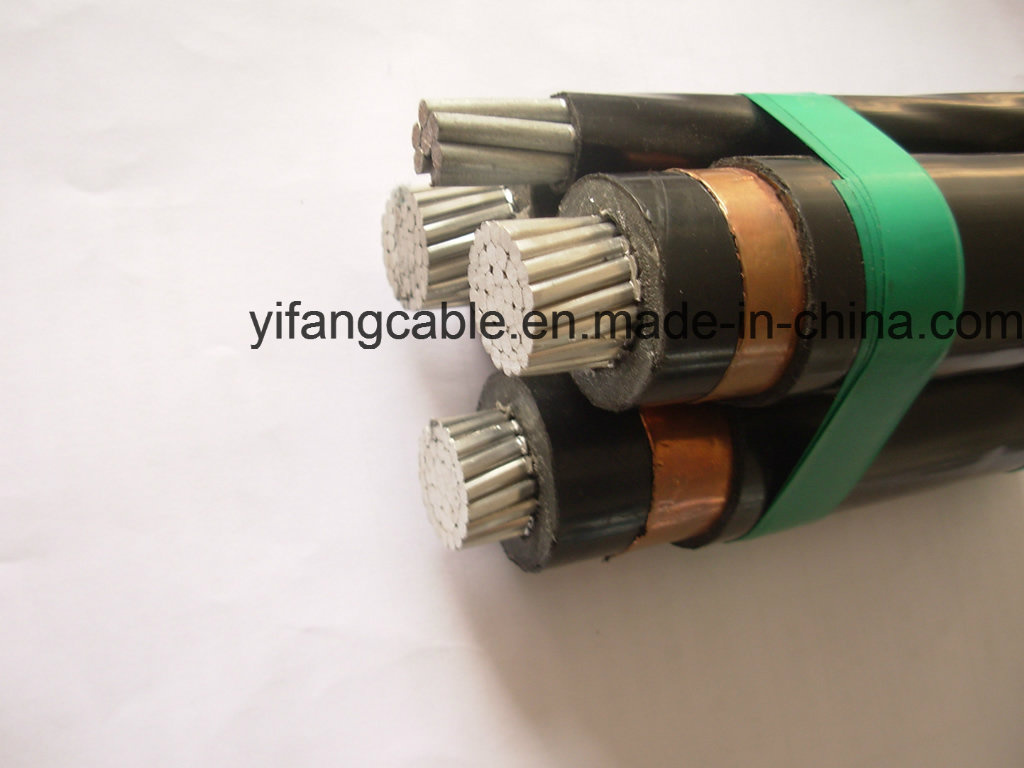

24kv Cis Cable 3X120mm2 for Overhead Power Transmission

Name: 24kv Cis Cable 3X120mm2 for Overhead Power Transmission
Brand: all-electronics-online.com
SKU: 711491322
Availability: InStock
Rating: 4.9 (29 reviews)

Price:	Negotiablem
Min Order:	1000m
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Color:	Black
Application:	Underground
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Voltage:	12-24kv
Sheath Material:	PE
Wire Core Material:	Al
Model:	Hta Cis Cable
Brand:	Yifang Cable

Product Description

Detail

Construction characteristics
Conductor flexibility	Stranded class 2
Conductor shape	Circular stranded (RM)
Material of the inner semi-conductor	Extruded
Insulation	XLPE (chemical)
Material of the external semi-conductor	Extruded strippable grooved elastomer
Material used for longitudinal water tightness	Swelling powder
Screen	Longitudinal aluminium tape
Mechanical characteristics
Cable flexibility	Rigid

Description
International Designation : NF C 33 226
MV cables NF C 33-226
Description
Usage
NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV. They are AD8 following NF C 13-200 with a water pressure < 0,2 bar. Sheath is anti-termite resistant.
Design
The cable is made of 1 or 3 bunched cores.
Aluminium screen is made to ground short-circuit currents of EdF network, up to 1000 A for 1 s. for underground networks.
Options
NF C 33-226 cables can be manufactured with the following options:
Copper conductor
Other voltage
Other section
Grounding conductor
Thicker aluminium screen
Bunch
Re-enforced burying resistance (EDR) is ensured with an extruded polyethylene protection.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
