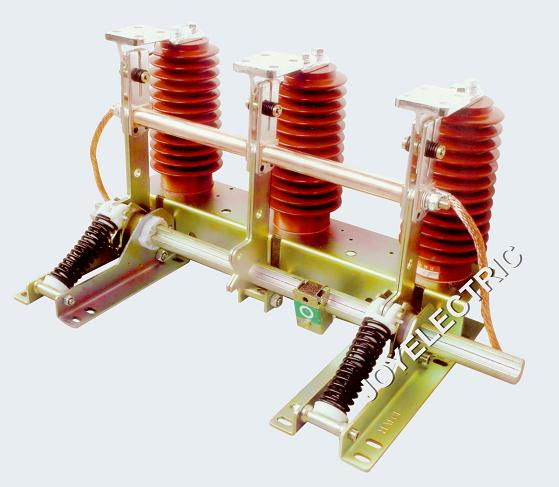

24kv Earthing Switch

Name: 24kv Earthing Switch
Brand: all-electronics-online.com
SKU: 835863095
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	US $ 100-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JN15-24/31.5
Application:	High-voltage
Brand:	Joyelectric

Product Description

Ambient Condition:
1. The height above sea level shall be no more than 1000 meter;
2. Ambient air temperature: +40⁰C~ -25⁰C
3. Seismic intensity: no more than 8 magnitude
4. The average relative humidity of a day should be no more than 95%, that of a month should be no more than 90%
5. Filth degree: II
Main Technical Parameters

Item		Unit	Data
Rated voltage		kV	24
Rated short time withstand current		kA	31.5
Rated duration of short circuit		S	4
Rated short circuit making current		kA	80
Rated peak withstand current		kA	80
Rated insulation level	Power frequency withstand voltage(1min)	kV	Pole to ground	95
	Lightning impulse withstand voltage		Between phases	185
Mechanical Life		times	2000

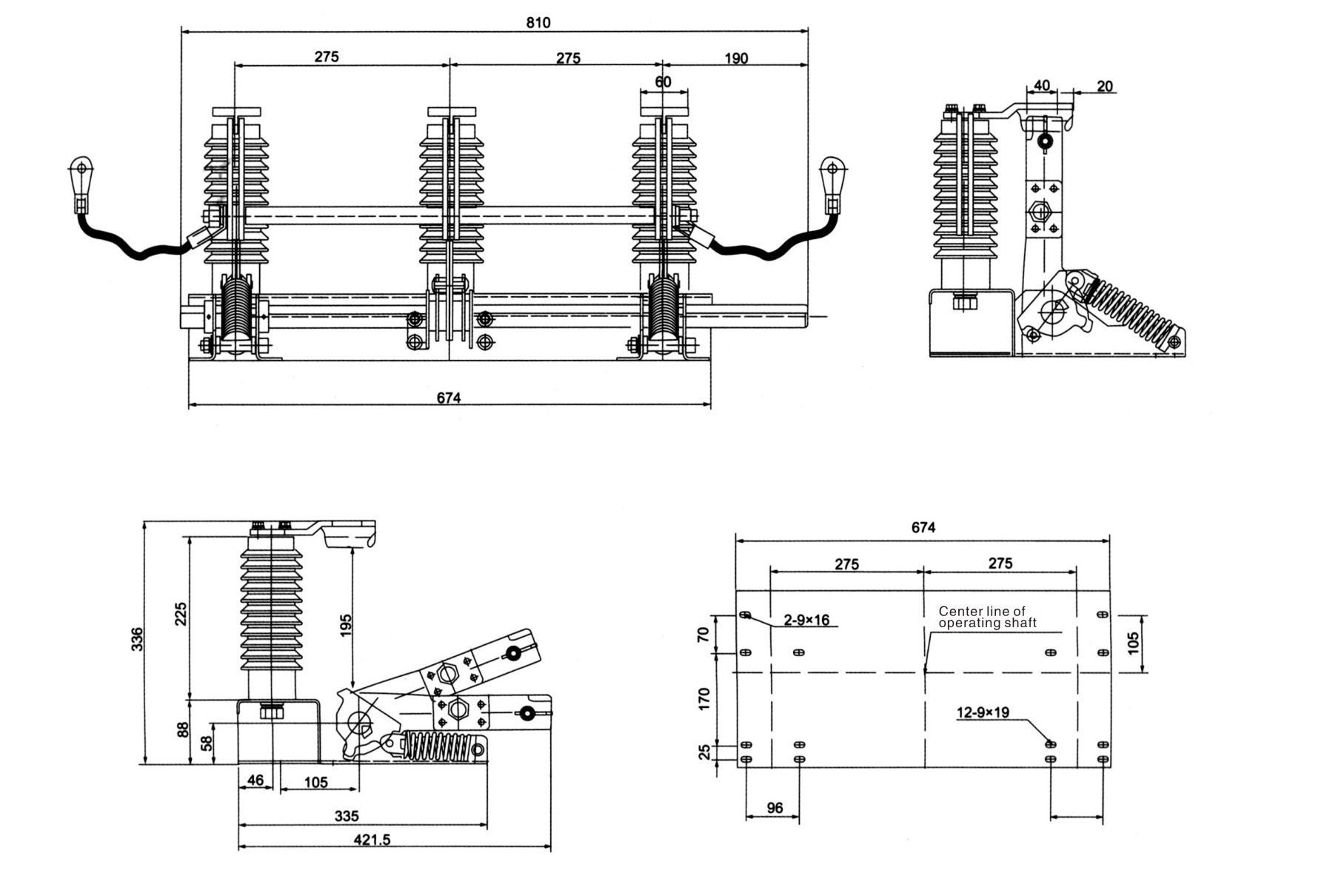

Outline Drawing and Installation Dimension of JN15-24/31.5 Earthing Switch

Shaanxi Joyelectric International Co., Ltd. is a specialized company which is dealing with international business mainly covering electric and energy system, supplying products, design & service as well as production/test equipment in the field of power transmission and distribution.

With more than 20 years experiences in this fields, our main products include 12kV-24kV-36kV/40.5kV vacuum circuit breaker, switchgear & SF6 RMU as well as relative main components and accessories. With business development and meet requirement from customers, we also agent and distribute relative production/test equipment.
