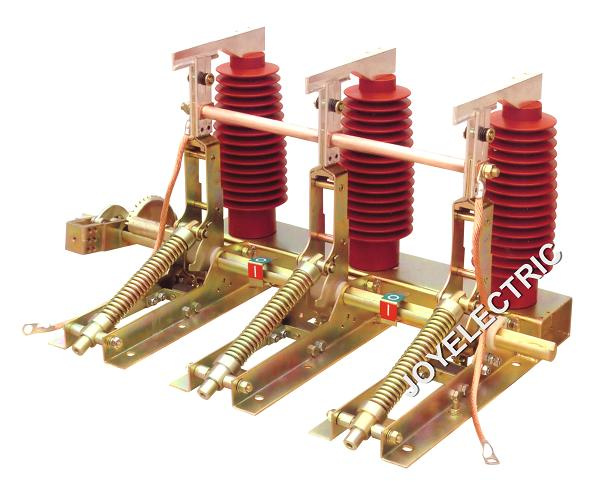

40.5kv Indoor Hv a. C Earthing Switch

Name: 40.5kv Indoor Hv a. C Earthing Switch
Brand: all-electronics-online.com
SKU: 835863565
Availability: InStock
Rating: 4.8 (33 reviews)

Price:	US $ 100-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JN22-40.5/31.5
Voltage:	40.5kv
Application:	High-voltage
Brand:	Joyelectric

Product Description

Ambient Condition:

The height above sea level shall be no more than 1000 meter;
Ambient air temperature: +40⁰C~ -10⁰C
Seismic intensity: no more than 8 magnitude
It shall be installed in the place without dust, fire, chemical erosion, explosion, vapor & salt spray, and the place where the strong vibration may happen.

Main Technical Parameter

Item		Unit	Data
Rated voltage		kV	40.5
Rated short time withstand current(4s)		kA	31.5
Rated short circuit making current		kA	80
Rated peak withstand current		kA	80
The center distance between phases		mm	280,300,350
Rated insulation level	Power frequency withstand voltage(1min)	kV	Pole to ground	95
	Lightning impulse withstand voltage		Between phases	185

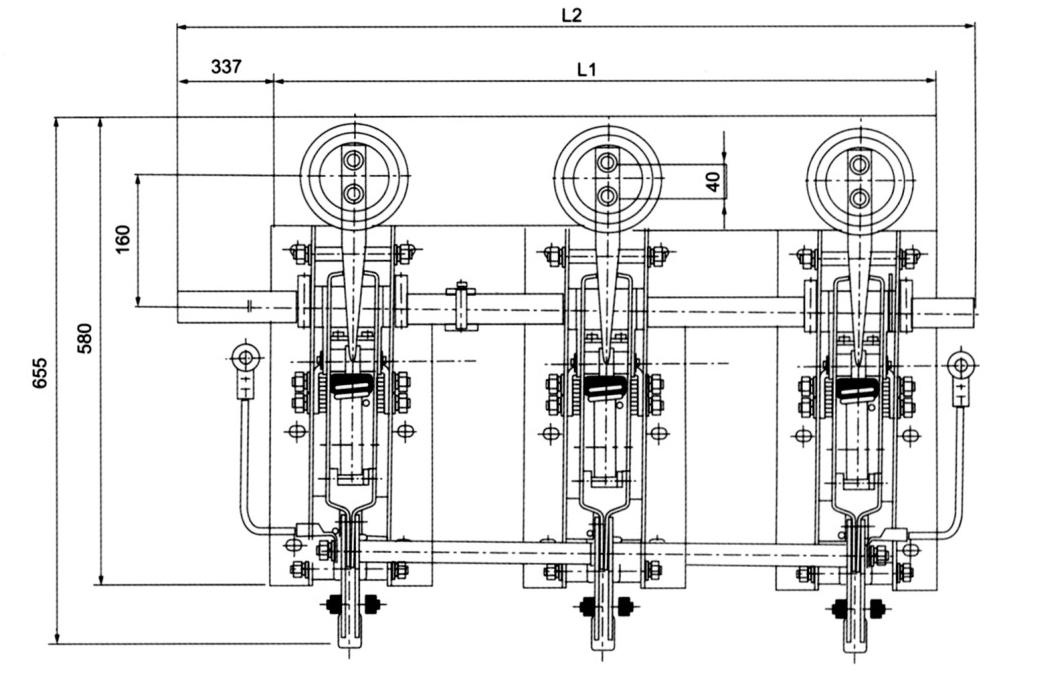

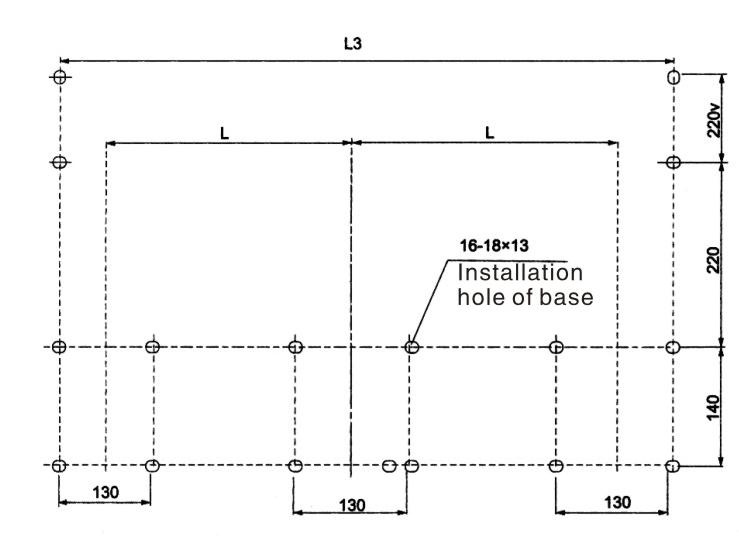

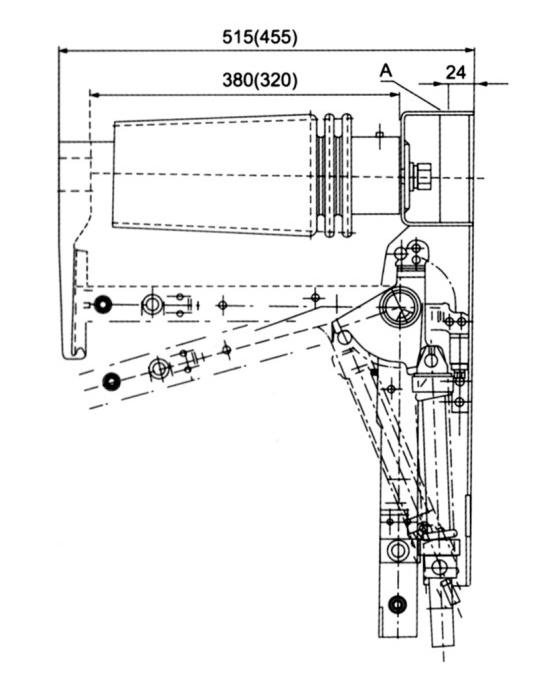

Outline drawing and installation size of JN22-40.5/31.5

Mating table:

Distance between phase L	L1	L2	L3	A(installation hole of channels steel back)
280	750	1060	690	3-Φ14
300	790	1100	730
350	890	1200	830
