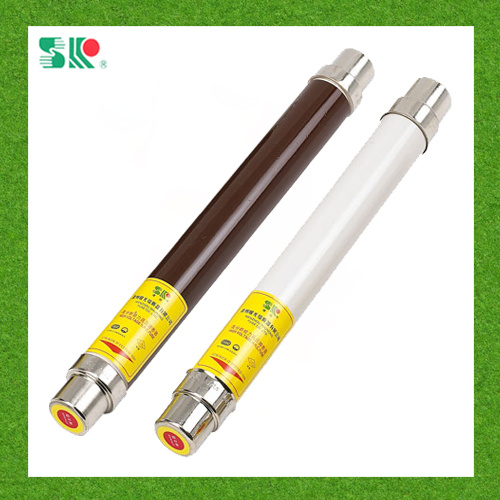

24kv Porcelain High Voltage Current Limiting Fuse

Prod Model:	XRNT (S type)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Color:	White, Brown
Length:	442mm
Diameter:	51, 63, 76, 88mm
Rated Voltage:	20kv, 24kv
Rated Current:	3.15~200A
Operation:	Manual Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Breaking Capacity:	High Voltage Circuit Breakers
Type:	Fuse
Usaga:	Transformer Overload Protection
Shape:	Tubular
Standard:	IEC282-1 GB15166.2

Product Description

Applications

H. V current-limiting fuses type S is mainly used in AC50Hz, rated voltage 3.6~40.5KV, rated current up to 200A circuit for protection transformers and power equipments from overload and short-circuit. It can also be used with load switch, vacuum contact.
It conforms to IEC282-1, GB15166.2 and DIN standard.

Design Features

S type H. V HRC current-limiting fuses is insert installation. The striker parallers to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high duty ceramic or expoxy glass.

When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting automatically cuttig the circuit.

The striker has spring type striker jumps out to push ethe chained equipment contact, signaling the melting automatically cutting the circuit. The striker has spring type striker use high pressure caused by the lighting powder to push the striker.

S type H. V. HRC current-limiting fuses has many merits as high current-limiting ablilty, high breaking capacity, quick and punctual in action, reliable in performance.

Foreign model	Department	Rated voltage(KV)	Rated current(A)	Rated breaking current(KA)	Diameter(mm) D	Length(mm) L1	Weight(kg)
SDOAJ	XRNT1	3.6	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	192	1.12
SDLAJ	XRNT1	7.2	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	31.5	51	292	1.47
SFLAJ	XRNT1	7.2	80, 100, 125, 160	31.5	76	292	3.15
SDLAJ	XRNT1	12	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	292	1.47
SFLAJ	XRNT1	12	50, 63, 71, 80, 100	31.5	76	292	3.15
SKLAJ	XRNT1	12	125	31.5	76	292	3.15
SXLAJ	XRNT1	12	160, 200	31.5	88	292	4.15
SDMAJ	XRNT1	24	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	442	2.7
SFMAJ	XRNT1	24	50, 63, 71, 80, 100	31.5	76	442	4.5
SKMAJ	XRNT1	24	125	31.5	76	442	4.5
SXMAJ	XRNT1	24	160	31.5	88	442	5.4
SDQAJ	XRNT1	40.5	3.15, 6.3, 10, 16, 20, 25	31.5	51	537	2.9
SFQAJ	XRNT1	40.5	31.5, 40	31.5	76	537	5.51
SXQAJ	XRNT1	40.5	63	31.5	88	537	6.5
