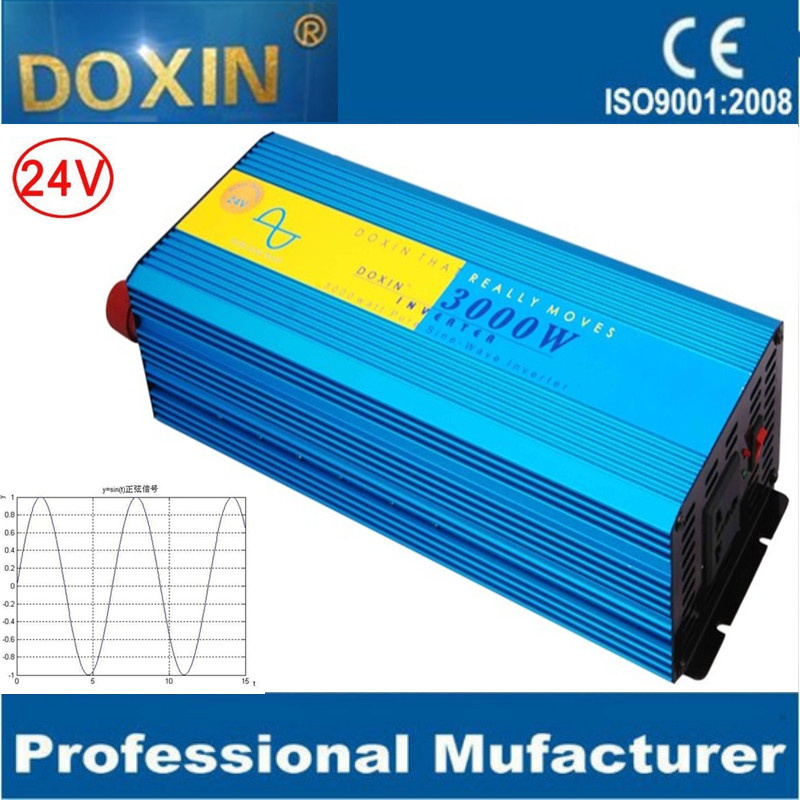

24V 3000W DC to AC Pure Sine Wave Inverter

Prod Model:	DXP3030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	3000W
Surger Power:	6000W
Output Waveform:	Pure Sine Wave
Output Frequency:	50/60Hz
Max Outer Temperature:	<65c
Housing Material:	Aluminum Alloy
High Volt Cut Off:	>DC15V
Overload/Lowload Protection:	Yes
Overvoltage/Lowvoltage Protection:	Yes
Overheat Protection:	Yes

Product Description

24V 3000W DC to AC Pure Sine Wave Inverter

1. Product Introduction

1. High frequency pulse width modulation technology
2. Excellent double-faced circuit board and components
3. High quality and high performance
4. Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage and low-voltage protection
Built-in fuse protection, etc
2. Features:
1) Compact and light weight: With the technology of CPU centralized control and SMD inside, the product is very small and light.
2) Pure sine wave output: Strong ability of driving load, wide range of application
3) High efficiency
4) Voltage overload protection
5) High output current surge
6) Low voltage alarm / shut down
7) Input and output fully isolation
8) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
9) Low power consumption

Application:

Portable Power for many power tools and various appliances, including vacuum cleaners, small refrigerators, TVs and more. Great for autos, trucks, RVs, boats, camping and more!

1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressors, and etc.

Note:
Don't use them in the high temperature
Keep the battery and charge for them
Don't overload the voltage
Don't use when the low voltage alarm is beginning





Notice Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance

For more info you need, pleae contact us anytime.
Call us: +86 18028085970

Model		DXP3030
Input	DC Voltage	12V or 24V or 48V or 110V
	VoltageRange	10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC
	No Load Current Draw	< 0.5
	Efficiency	> 90%
	DC Connector	Cables With Clips or Car Adaptor
Output	AC Voltage	100/110/120VAC or 220/230/240 VAC
	Continuous Power	3000W
	Surge Power	6000W
	Waveform	Pure Sine Wave
	Frequency	50Hz or 60Hz
	AC Regulation	3%
Protection	Low Voltage Alarm	10DC± 0.5V or 20.5DC± 1V or 44VDC± 1V or 100VDC± 1V
	Low Voltage Shut Down	9.5DC± 0.5V or 19.5DC± 1V or 42VDC± 1V or 96VDC± 5V
	Over Load	Shut Off Output
	Over Voltage Shut Down	15.5V or 30.5V or 61.2V or 120V
	Over Thermal	Shut Off Output Automatically
Environment	Working Temperature	Between -10° C and +50° C
	Working Humidity	20%-90%RH non-condensing
	Storage Temperature	Between -30° C and +70° C
Package	Machine Size(mm)	445X155X95MM
	Packing Size(mm)	49*31*39CM
	Net Weight(kg)	4.8
	Gross Weight(kg)	5.5
	Packing Mode	Carton
Other	Start	Soft Start
	Cooling Ways	Cooling Fan
