24V 350A Forklift Battery Charger Power Supply with RoHS, ISO

Name: 24V 350A Forklift Battery Charger Power Supply with RoHS, ISO
Brand: all-electronics-online.com
SKU: 733405322
Availability: InStock
Rating: 4.5 (98 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR24350A
Efficiency:	92%
Input Frequency:	47~63Hz
Input Current:	18A
Power Factor:	0.99
Output Voltage:	0~30 VDC
Output Current:	350A
Stabilized Voltage Precision:	±2%
Operating Temperature:	-25~45°c
Storage Temperature:	-40~+70ºC
Weight:	≤18kg
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Output Power:	3000W
Input Voltage:	175~264 VAC
Brand:	Goldpower

Product Description

24V 350A Forklift Battery Charger power supply with ROHS,ISO is high efficiency and practical forklift charger.

Features:

Adjustable output voltage 0~30Vdc,default:24V
High efficiency more than 92%.
Power factor correction ≥0.99
Multiple protection and safety regulation
Complete certification with ROHS,ISO
Supports remote control on/off
With communication interface CAN
Wide operating temperature range:-25~+45ºC
With perfect protective function: input over/under voltage protection, output over voltage protection, output over current protection, output short circuit, over temperature alarm, output anti-reverse, anti-intrusion protection.
In parallel can be achieved through the current bus.

Applications:

Forklift charger
Switching power supply

Specification:

Model	GPR24350A
Power	8.5KW
Efficiency	>92%
Input voltage	175~264Vac
Input frequency	47~63Hz
Input current	18A
Power Factor	0.99
Output voltage	0~30Vdc
Output current	350A
Voltage Regulation	±2%
Current sharing	±5%
Operating temperature	-25~45ºC
Storage temperature	-40~70ºC
Ripple(Vp-p)	200mV
Turn-on time	3~8S
Humidity	5~95%
Temperature coefficient	±0.02%/ºC
Acoustic noise	≤55dB
MTBF	≤250,000 Hour
Cooling	Fan forced cooling
Dimension(LxWxH)	400 750 650 mm
Weight	<18(KG)
Protection	input over/under voltage protection, output over voltage protection, output over current protection, output short circuit, over temperature alarm, output anti-reverse, anti-intrusion protection.

About us:

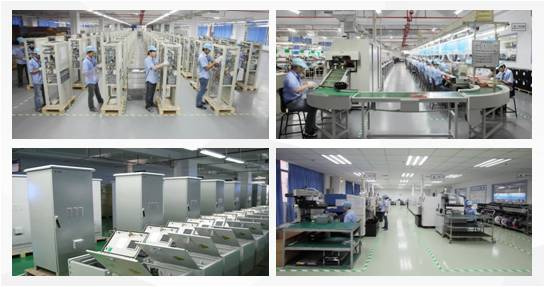

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
