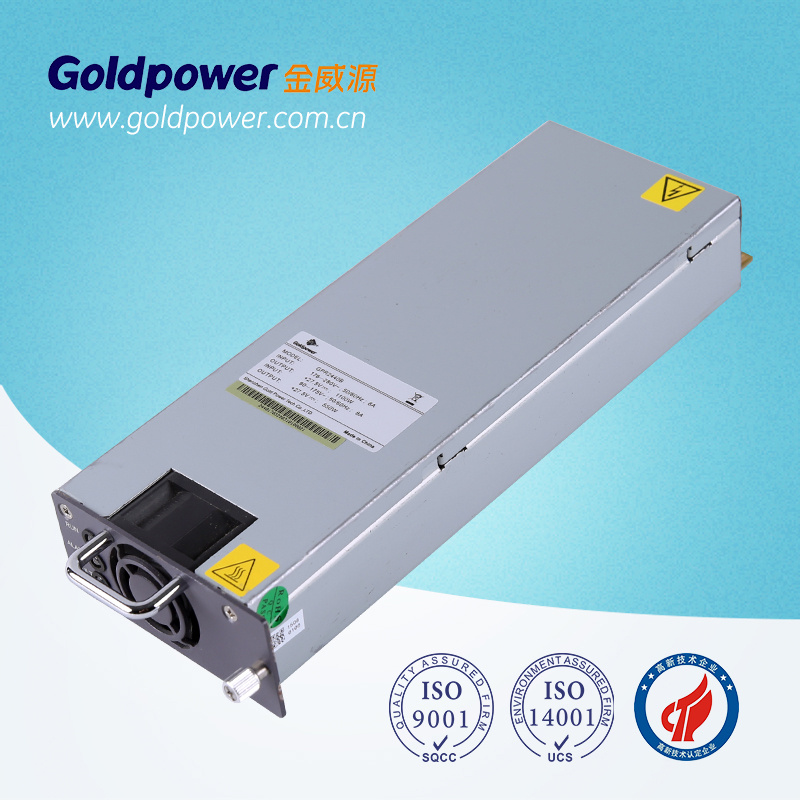

24V 40A DC Rectifier Module Switching Power Supply

Name: 24V 40A DC Rectifier Module Switching Power Supply
Brand: all-electronics-online.com
SKU: 726674252
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR2440B
Efficiency:	>90%
Input Frequency:	45~65Hz
Input Current:	8A
Power Factor:	>0.99
Output Voltage:	21~28.5VDC
Output Current:	40A
Stabilized Voltage Precision:	±1%
Operating Temperature:	-40~55°c
Storage Temperature:	-50~+80ºC
Weight:	≤1.5kg
Output Type:	Single
Warranty:	2 Years
Certification:	CCC
Output Power:	1100W
Input Voltage:	90~280VAC
Brand:	Goldpower

Product Description

24V 40A High Efficiency Electric Vehicle Charger Rectifier Module Power Supply.

Features:

1. Ultra high power density, less parallel modules for more reliability.

2. Soft-switching technology, high efficiency up to 90%, full digital DSP control, total harmonic current less than 5%.

3. Leading APFC tech (active power factor correction), power factor > 0.99

4. Automatic intelligent current sharing without monitoring, supports intelligent hibernation.

5. Ultra wide output range, works with the bus, car and other vehicles, featuring BMS auxiliary low-voltage power output;

6. Supports hot plugging without damage, a module can be replaced within 1min.

7. Complete isolation and failure protection between input and output terminal, output end equippedwith backflow-prevention device.

8. Compact size, customized design, compatible with multiple protocols, applicable for integrated / splitor other types of charger.

Applications:

1. Bus,car and other vehicles.
2. 24V Distributed power system

3. Ethernet

4. Exchange

5. LAN, MAN

6. Server

7. Indoor wireless network

8. Telecom equipment

Specification:

Model	GPR2440B
Power	1100W
Efficiency	>90%
Input voltage	90~280Vac
Input frequency	45~65Hz
Input current	8A
Power Factor	0.99
Output voltage	21~28.5Vdc
Output current	40A
Voltage Regulation	±1%
Current sharing	±5%
Operating temperature	-40~55ºC
Storage temperature	-50~80ºC
Ripple(Vp-p)	200mV
Turn-on time	8S
Humidity	5~95%
Temperature coefficient	±0.02%/ºC
Acoustic noise	≤50dB
MTBF	≥10,0000 hours
Cooling	Forced cooling
Dimension(LxWxH)	270x92.75x41.6(mm)
Weight	≤1.5(KG)
Protection	Input over/ under voltage,output over voltage,output limited current, short circuit , over temperature, fan failure.

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
