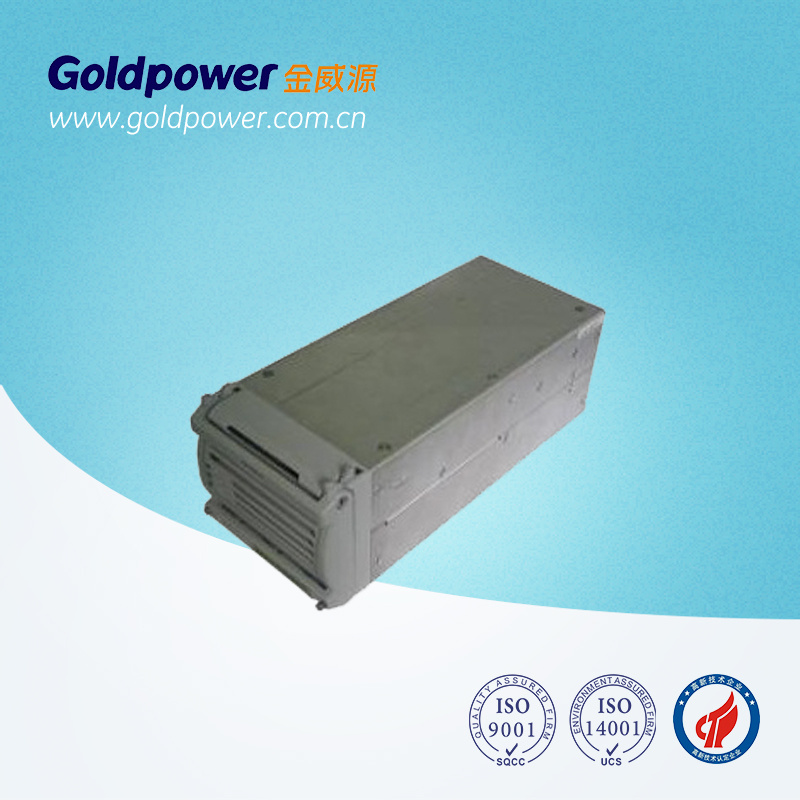

24V 50A DC Rectifier Module Switching Power Supply for EV Charger

Name: 24V 50A DC Rectifier Module Switching Power Supply for EV Charger
Brand: all-electronics-online.com
SKU: 726787132
Availability: InStock
Rating: 4.4 (52 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR2450B
Efficiency:	89%
Input Frequency:	45~65Hz
Input Current:	15A
Power Factor:	0.99
Output Voltage:	20~30VDC
Output Current:	50A
Stabilized Voltage Precision:	±1%
Operating Temperature:	-33~65°c
Storage Temperature:	-40~+70ºC
Weight:	≤2.8kg
Output Type:	Single
Warranty:	2 Years
Certification:	Tlc
Output Power:	1200W
Input Voltage:	110~240VAC
Brand:	Goldpower

Product Description

24V 50A High Efficiency Electric Vehicle Charger is Rectifier Module Power Supply.

Features:

1. Ultra high power density, less parallel modules for more reliability.

2. Soft-switching technology, high efficiency up to 89%, full digital DSP control, total harmonic current less than 5%.

3. Leading APFC tech (active power factor correction), power factor > 0.99

4. Automatic intelligent current sharing without monitoring, supports intelligent hibernation.

5. Ultra wide output range, works with the bus, car and other vehicles, featuring BMS auxiliary low-voltage power output;

6. Supports hot plugging without damage, a module can be replaced within 1min.

7. Complete isolation and failure protection between input and output terminal, output end equippedwith backflow-prevention device.

8. Compact size, customized design, compatible with multiple protocols, applicable for integrated / splitor other types of charger.

Applications:

1. Bus,car and other vehicles.
2. 24V Distributed power system

3. Ethernet

4. Exchange

5. LAN, MAN

6. Server

7. Indoor wireless network

8. Telecom equipment

Specification:

Model	GPR2450B
Power	1200W
Efficiency	>89%
Input voltage	110~240Vac
Input frequency	45~65Hz
Input current	15A
Power Factor	0.99
Output voltage	20~30Vdc
Output current	50A
Voltage Regulation	±1%
Current sharing	±5%
Operating temperature	-33~65ºC
Storage temperature	-40~70ºC
Ripple(Vp-p)	200mV
Turn-on time	8S
Humidity	5~95%
Temperature coefficient	±0.02%/ºC
Acoustic noise	≤50dB
MTBF	≤250,000 Hour
Cooling	Forced air cooling
Dimension(LxWxH)	242.5x102.7x88.1(mm)/9.55x4.04x3.47(in.)
Weight	≤2.8(KG)
Protection	Input over/ under voltage, output over voltage,output over current,output limited current, short circuit , over temperature, fan failure.

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
