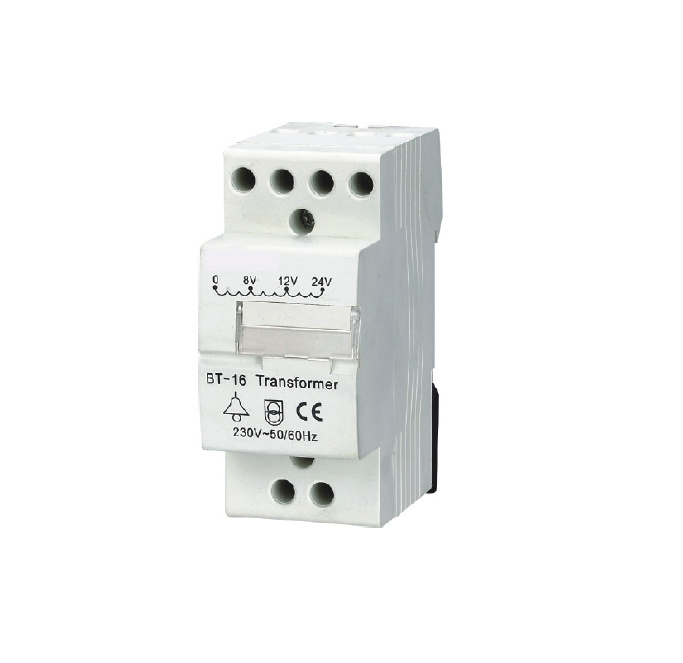

24V 8va Bell Transformer Ekbt

Prod Model:	24V 8VA EKBT
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

EKBT Bell transformer
Technical Data
Application
Applicable to circuit with rated voltage 230V and rated frequency 50/60Hz
Used to power electric bell of extra low voltage
Construction and Feature
Safe electrical separation between primary and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25 within 24 hours
Technical Data
Rated input voltage 230V AC
Rated output voltage 8, 12, 16, 24V
Rated frequency 50 60Hz
Rated power output 8VA
Consumption 0.9W
Service period continuous ope rating
Pollution class 2
Connection terminals pillar terminal with clamp
Connection capacity rigid conductor 10mm2
Installation
On symmetrical DIN rail
Panel mounting
Terminal Connection Height H=15.5mm
