| Prod Model: |
DXP1500WBIG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1500W |
| Surge Power: |
3000W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| Format Of Plug: |
EU/German/ USA/UK/Universal/Australia |
| Max Outer Temperature: |
<65c |
| High Volt Cut Off: |
>DC15V |
| Housing Material: |
Aluminum Alloy |
| Warranty: |
1 Year |
| OEM: |
Welcome |
Product Description

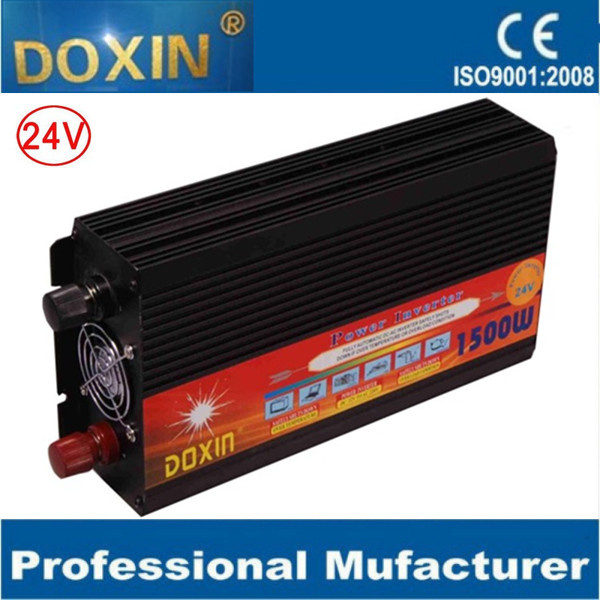

24V 1500W DC to AC Power Inverter
Model: DXP1500WBIG
By the vector control to achieve high start-up power and steady low-speed power easily and afford you the best drive unit.
1. Features:
(1)High frequency pulse width modulation technology
(2)Excellent double-faced circuit board and components
(3)High quality and high performance
(4)Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage&low-voltage protection
Built-in fuse protection, etc
2. Application
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
| Model | DXP1500WBIG |
| Output waveform | Modified sine wave |
| Continuous power | 1500W |
| Surge power | 3000W |
| Input volt | 12/24/48/110V DC |
| Output volt | 100/110/120/220 /230 /240V AC |
| Under voltage alarm (unloaded) | 10.4-11.0V |
| Low voltage shut-down range (unloaded) | 9.7-10.3V |
| Over voltage shut-down range (unloaded) | 14.5-15.5V |
| Frequency | 50 / 60Hz |
| Efficiency | >90% |
| No load current draw | <0.6A |
| Automatic protection | Overload, Over thermal ,Fuse ,Under/Over Volt |
| Operating temperature | -10 o C~ + 50 o C |
| Storage temperature | -30 o C~ + 70 o C |
| THD | < 4% |
| Cooling | Cooling Fan |
| Batterychip cord length | 70cm(optional) |
| Dimension(L*W*H)cm | 350*155*55MM |
| Package | CTN |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
