| Prod Model: |
DXP202024V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
2000W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Pure Sine Wave |
| High Volt Cut Off: |
>DC15V |
| Warranty: |
1 Year |
| Certificate: |
CE |
| Cooling: |
Fan |
| Multi-Protection: |
Yes |
| Application: |
air conditioner |
| Phase: |
Single |
Product Description

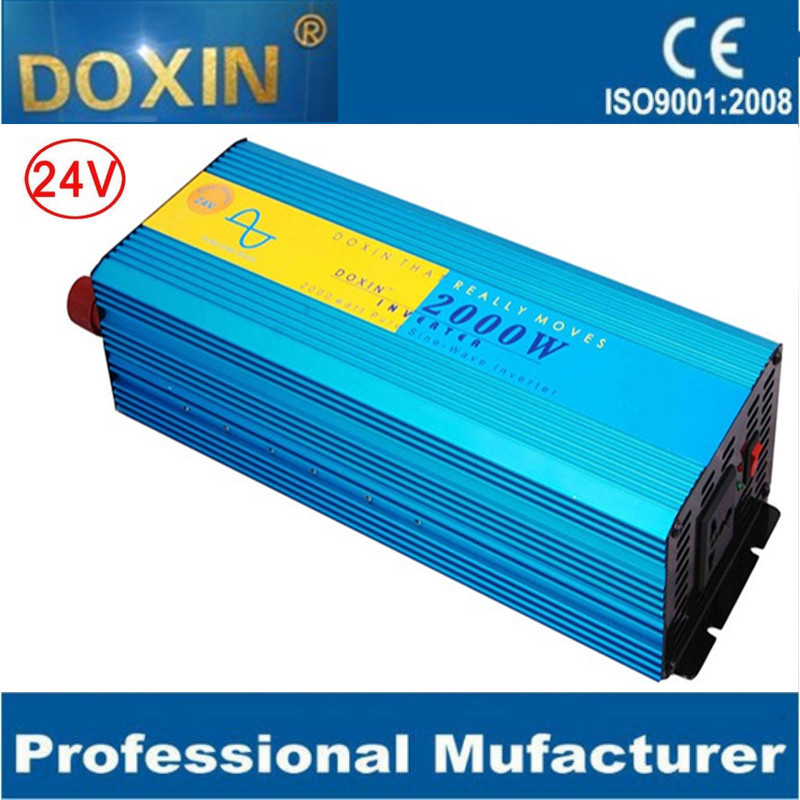

DOXIN DC to AC 2000Watts 12V / 24V Pure sine wave inverter
1. Product Introduction
1. High frequency pulse width modulation technology
2. Excellent double-faced circuit board and components
3. High quality and high performance
4. Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage and low-voltage protection
Built-in fuse protection, etc
Product Info:
Portable Power for many power tools and various appliances, including vacuum cleaners, small refrigerators, TVs and more. Great for autos, trucks, RVs, boats, camping and more!
2. Features:
1) Compact and light weight
2) Pure sine wave output
3) High efficiency
4) Voltage overload protection
5) High output current surge
6) Low voltage alarm / shut down
7) Input and output fully isolation
8) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
9) Low power consumption
Application:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressors, and etc.
Note:
Don't use them in the high temperature
Keep the battery and charge for them
Don't overload the voltage
Don't use when the low voltage alarm is beginning
For more info you need, pls contact us anytime
Call us: +86 18028085970
| Model | DXP2020 |
| Input | DC Voltage | |
| VoltageRange | 10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC |
| No Load Current Draw | < 0.2A |
| Efficiency | > 90% |
| DC Connector | Cables With Clips or Car Adaptor |
| Output | AC Voltage | 110/220/230/240 V AC |
| Continuous Power | 2000W |
| Surge Power | 4000W |
| Waveform | Pure Sine Wave |
| Frequency | 50Hz or 60Hz |
| AC Regulation | 3% |
| Protection | Low Voltage Alarm | 10DC± 0.5V or 20.5DC± 1V or 44VDC± 1V or 100VDC± 1V |
| Low Voltage Shut Down | 9.5DC± 0.5V or 19.5DC± 1V or 42VDC± 1V or 96VDC± 5V |
| Over Load | Shut Off Output |
| Over Voltage Shut Down | 15.5V or 30.5V or 61.2V or 120V |
| Over Thermal | Shut Off Output Automatically |
| Environment | Working Temperature | Between -10° C and +50° C |
| Working Humidity | 20%-90%RH non-condensing |
| Storage Temperature | Between -30° C and +70° C |
| Package | Machine Size(mm) | 445X155X95MM |
| Packing Size(mm) | 49*31*39CM |
| Net Weight(kg) | 4.8 |
| Gross Weight(kg) | 5.3 |
| Packing Mode | Carton |
| Other | Start | Soft Start |
| Cooling Ways | Cooling Fan |
| |
