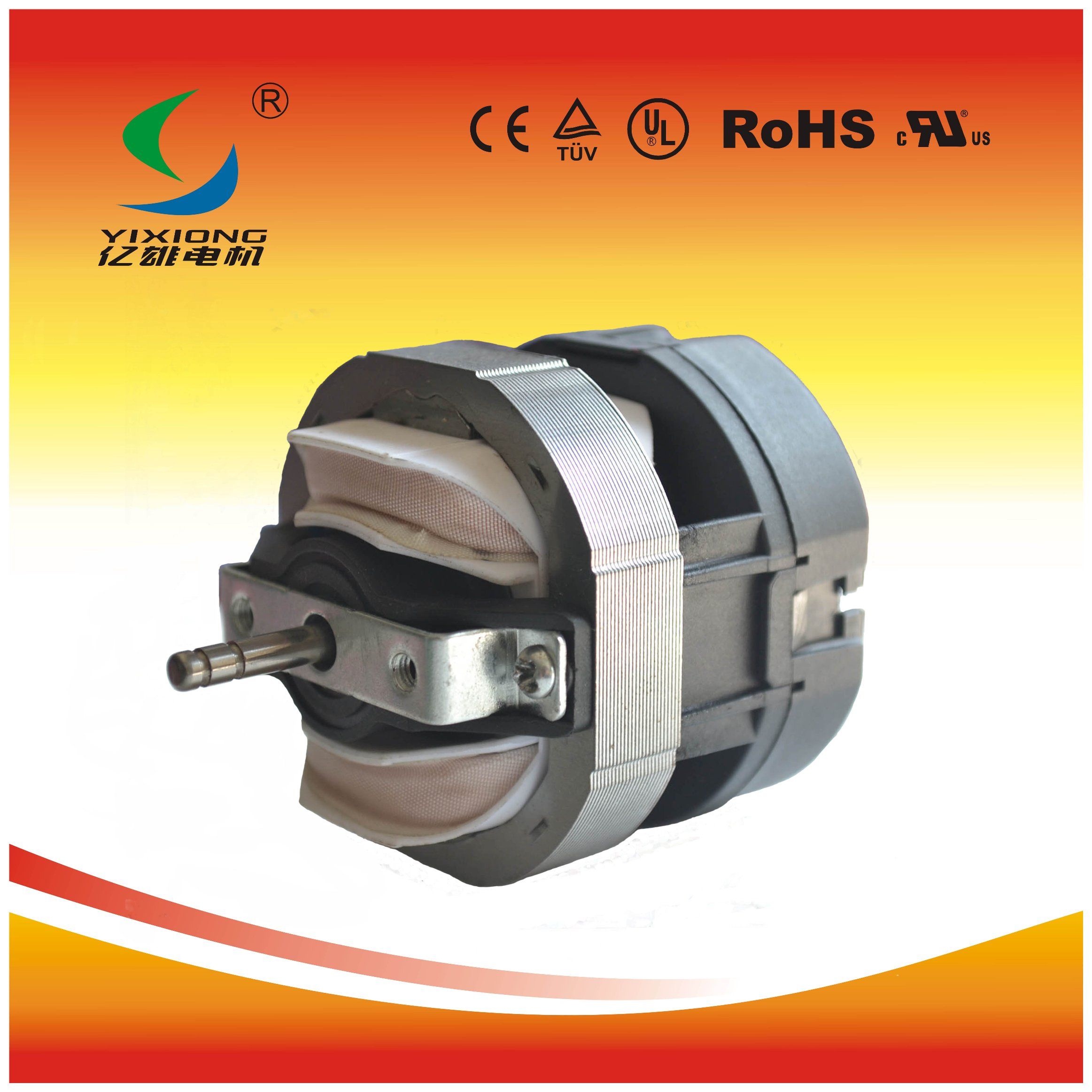

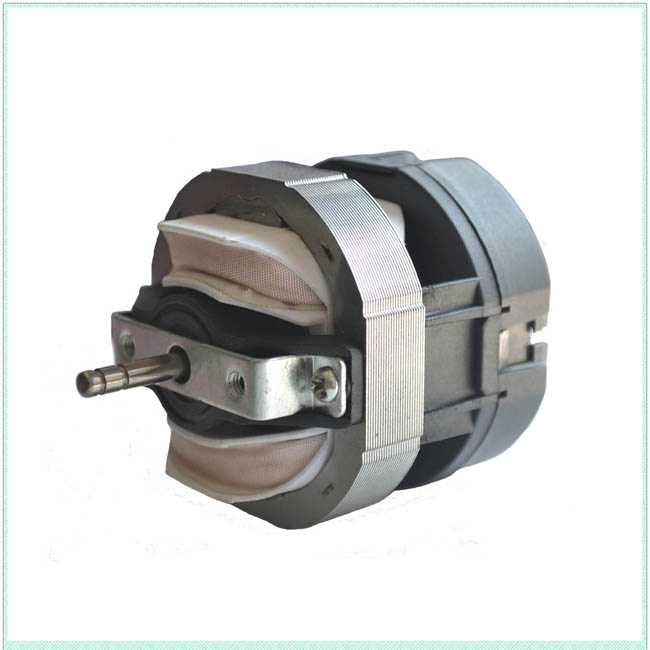

Name: 24V Ventilation Fan Motor
Brand: all-electronics-online.com
SKU: 832965635
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 10-12/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	24v Ventilation Fan Motor
Motor Type:	Ec Motor
Core Material:	Silicon Sheet
Wire:	Copper
Temperature Protect:	One-Stop or Recoverable
Color:	Silver or Black
Available Model:	BLDC5812
Input Power:	Less 3W
Number Of Stator:	Single-Phase
Function:	Driving
Application:	Ventilation Systems
Starting Mode:	Induction Start
Certification:	Ce
Brand:	Yixiong

Product Description

Products Discription :

Supply voltage: 24V DC;
Suitable Shaft Dia.:4 mm, Shaft length as your request
Stack size: Max dia: 58mm, thickness 12 mm;
Mounting size: M4, disctance of hole is 28mm,

Rotation from shaft extention : CW and CCW;
Lead wire: model and length are as your request
Bearing style: Ball Bearing are both available;
Insulation Class: E
Protection type: Temperature protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Note:
The available model is BLDC5812

Model	Supply Voltage	Speed level	Insulation Class	Input Power	Shaft design	Lead wire
BLDC5812	24V DC	High /Low	E	Less than 3w	as your request	as your request

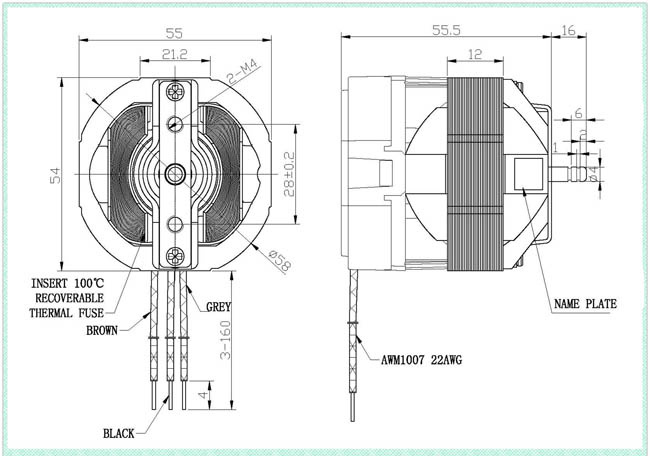

Drawing

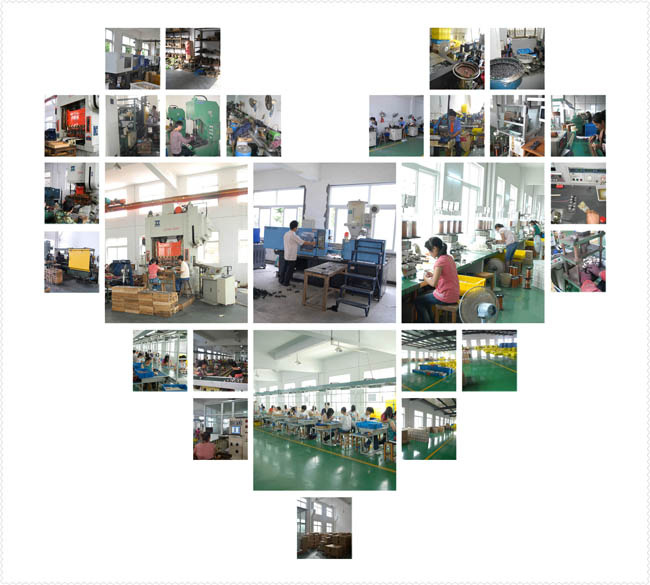

Production

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
