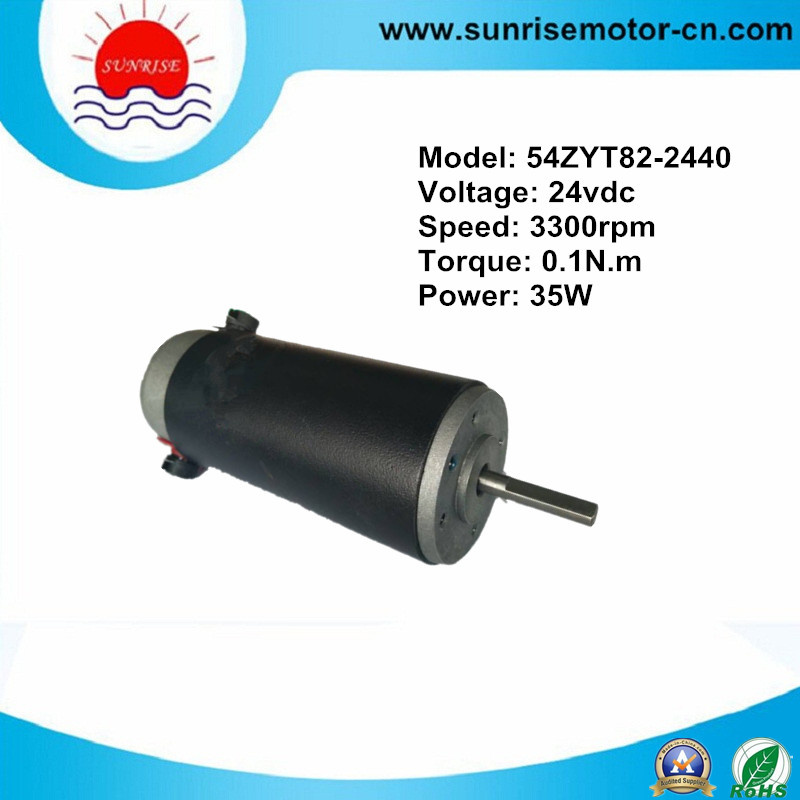

24VDC 0.1n. M 35W Permanent Magnet (PMDC) DC Electric Motor

Name: 24VDC 0.1n. M 35W Permanent Magnet (PMDC) DC Electric Motor
Brand: all-electronics-online.com
SKU: 613099434
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	US $ 13.07-30/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	54ZYT82-2440
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	54zyt82-2440
Voltage:	24VDC
Torque:	0.1n.M
Current:	2.3A
Speed:	3300rpm
Power:	35W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	PMDC Motor
Brand:	Sunrise Motor

Product Description

54MM Series Permanent Magnet (PMDC) DC MOTOR

MODEL: 54ZYT82-2440
Voltage: 24V
Torque: 0.1N. M,
Current: 2.3A,
Speed: 3300RPM
Power:35W
Length: 82mm,

Remark:
1.Special motors can be customized per your requirements.
2.Encoder and gear box can be fixed.

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Length (mm)
54ZYT82-2440	24	0.3	4000	0.1	2.3	3300	82
54ZYT114-2430	24	0.3	3000	0.22	3.5	2500	114
54ZYT145-2432	24	0.3	3200	0.35	6	2700	145

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
