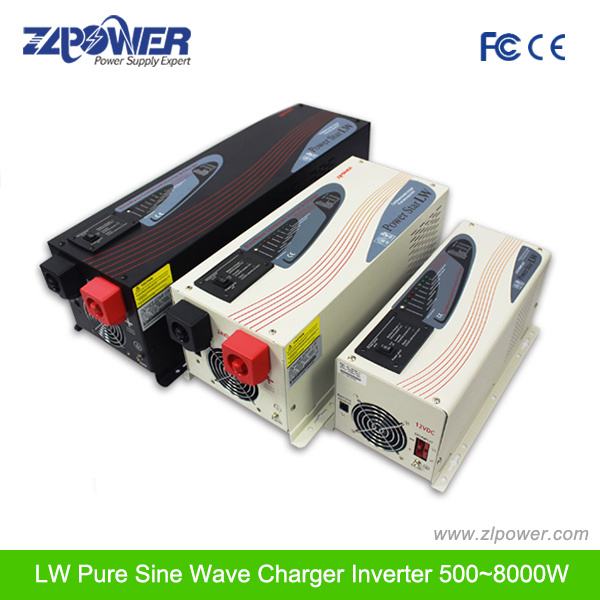

24VDC/48VDC Power Star Split Phase Inverter 5000 Watt
| Price: |
US $ 110-482/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
LW500-LW8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inverter Color: |
Black & White |
| Protection: |
Overload, Short Circuit, Overcurrent |
| Display: |
LCD Digital Display |
| Power Factor: |
0.9-1.0 |
| AC Mode Efficiency: |
96% |
| Warranty: |
2 Years |
Product Description
24Vdc/48Vdc Power Star Split Phase Inverter 5000 watt
Key features
1. LED/LCD digital display show voltage ,load, and battery info in real time.
2. Peak power is 3 times of rating power.
3. Selectable DC/AC priority function.
4. Adjustable charge current.
5. 4-step progressive charging ,7 battery type selector.
6.Pure sine wave output,availible for sensive load.
7.High power factor 0.9 ,low power consumption.
8.Remote control function.
9.LED/LCD display panel optional.
10.Protection against:Over load ,over temperature ,over charging ,low battery
Application
It widely applied in wind denerator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emengency EPS.
Specification
| MODEL | LW-1000 | LW-1500 | LW-2000 | LW-3000 | LW-4000 | LW-5000 | LW-6000 |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input |
Phase &
waveform | Single phase & Pure Sine Wave |
| Voltage | 110/120/130VAC or 220/230/240VAC |
| Acceptable Voltage | 95-126VAC or 194-253VAC±4% |
| Low Line Disconnect | 85VAC±4% or 184VAC±4% |
| Low Line Re-connect | 95VAC±4% or 194VAC±4% |
| High Line Disconnect | 136VAC±4% or 263VAC±4% |
| High Line Re-connect | 126VAC±4% or 253VAC±4% |
| Frequency | 50Hz:41-54Hz 60Hz:51-64Hz |
| AC Output |
| Phase & waveform | Single phase & Pure Sine Wave (bypass mode sync to input) |
| Voltage | 110/120/130VAC or 220/230/240VAC±10%rms (bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz 60Hz±0.3Hz (bypass mode sync to input) |
| Peak Power | 3 times of rating power |
Short Circuit
Protection | Yes, shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12VDC or 24VDC or 48VDC |
Minimum Start
Voltage | 10VDC or 20VDC or 40VDC |
| Low Battery Alarm | 10.5±0.3vdc or 21±0.6vdc or 42±1.2vdc |
Low DC input
Shut-down | 10±0.3vdc or 20±0.6vdc or 40±1.2vdc |
| High DC input Alarm & Fault | 16±0.3vdc or 32±0.6vdc or 64±1.2vdc |
High DC input
Recovery | 15.5±0.3vdc or 31±0.6vdc or 62±1.2vdc |
MAX Charger
Current | 20A/35A/ 50A/75A/90A(According to the Inverter model) |
| System parameter |
Battery Mode
Efficiency | >85% |
Line Mode
Efficiency | >96% |
| power saver | Load <=25W (Enabled on "P/S auto" setting of Remote control) |
| Audible Alarm | Sounding when the heat sink's tem is over 100ºC and shutdown after 30 seconds. |
Over Load
Protection | 110%
Load>150%, beeps 0.5s every 1s, and Fault after 20s. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB/SNMP(custom-made) |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Net Weight(KG) | 16kg | 18kg | 20kg | 25kg | 39kg | 42kg | 49kg |
| Dimension L X W X H | 470 X223 X185mm | 650 X223 X185mm |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
