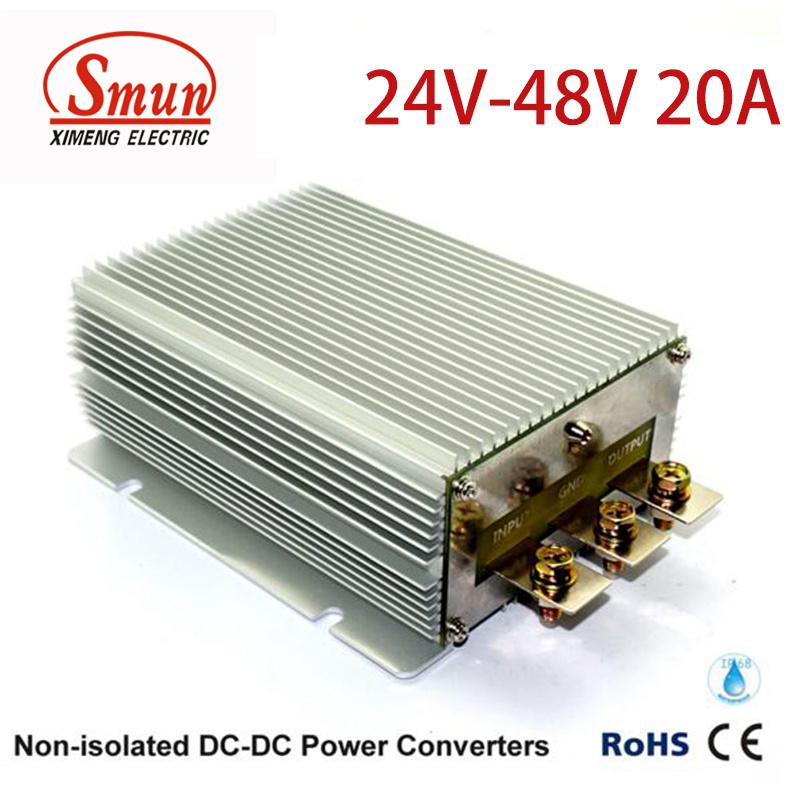

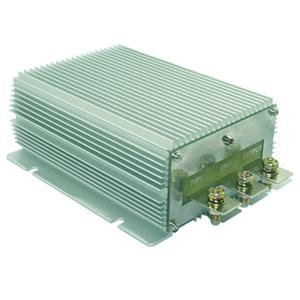

24VDC to 48VDC 20A 960W Non-Isolated Waterproof DC DC Converter

24VDC to 48VDC 20A 960W Non-Isolated Waterproof DC DC Converter
Price: US $ 55.8-65/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-24S4820
Rated Power: 960W
Input Voltage Range: 20-35V DC
Output Voltage: 48VDC
Output Current: 20A
Size: 180*127*63mm
Waterproof IP: IP68
Efficiency: up to 964%
Weight: 1.55kg
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 24VDC
Brand: Smun

Product Description

DC24V to DC48V 20A Power Converters 960W
Features

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from  20-35Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade DC24V to DC48V step-down converter, efficiency up to 96%
6. Certificates: CE
7. Waterproof level: IP68
8. Aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature and Over-load
Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. 1 year warranty, lifetime up to 100,000 hours.

Specifications
ModelSDS-24S4820
Input rated voltage24V DC
Input voltage range20-35V DC
Efficiency97% (half load) ; 96% (full load)
Output voltage48V DC
Output current20 Amps
Output rated power960 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 180mV
No-load current< 30mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Over-voltage
Machine size180*127*63mm
Package size230*152*100mm
N. Weight1.55kg
W. Weight1.62kg
Cooling wayFree air convection
CertificationsCE
OtherCarton packing
