| Prod Model: |
SMH-12-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
110-240VAC |
| Output: |
12VDC 2A |
| Model: |
Smh-12-2 |
| Power: |
24W |
| Size: |
80*50*32mm |
| Weight: |
0.12kg |
| Warranty Time: |
12 Months |
| Certificate: |
CE RoHS |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Plug In |
| Type: |
Indoor |
| Brand: |
Smun |
Product Description

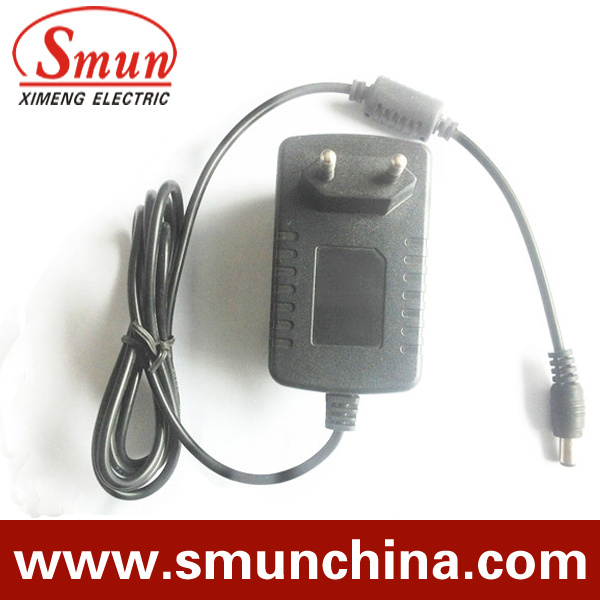

Monitor AC/DC power supply adapter 12V 1A
Universal AC input/full range
Energy-saving, high efficiency, move secure
Light weight design
Fully enclosed plastic case
Leakage current<0.3mA
LED indicator for power on
| Smun code | iuput voltage | output | SIZE | weight |
| SMH-1210-B1 | 100-240V 50/60HZ | 12V 1A | 70*35*28mm | 0.08kg |
| SMH-1215-B1 | 100-240V 50/60HZ | 12V 1.5A | 75*45*30mm | 0.1kg |
| SMH-1220-B1 | 100-240V 50/60HZ | 12V 2A | 80*50*32mm | 0.12kg |
Product Description
1.12W VDE series external wall-mount AC/DC Adapter 12V1A switching power adapter (AC/DC adapter), class II, LPS, Universal input.
2.Customized designs are available.
3.100% full load burning test,40°C, 4 hours each part of this series can be sold separately.
4.Leakage current: 0.25mA, maximum at 264V AC.
5.Withstanding voltage: 3.3kV, 1 minute, 5mA (maximum), between primary and secondary.
6.Smart device surge protection ,OVP ,OCP ,SCP.
7.Efficiency: Conform to Level V (CEC/ERP/MEPS).
8.Brand new components,High accuracy of output voltage.
FAQ
1 :What are the main products in your company?
Our main products include switching power supply, power adapters, lithium battery chargers .
2 :What are your products have been certified?
our products have assed UL,CUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS and PSE certification. In other to make the customers understand our products qualities clearly. We will provide the related certifications as the customer requirements.
3:Can you give me more details about the price of your products?
We think our prices are very reasonable. If you purchase the quantity of product more enough, we will give you discount.
4: Would you please kindly tell us the below details for suggesting you the suitable adapter?
1) What's the input please? eg:100-240VAC, 50/60Hz
2)What's the output, please? eg: 5V DC 2A
5:How to choose suitable power adapter ?
1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .
2) If your product is belong to medical device ,the quality standard should be IEC 60601 ,if your product is belong to IT device ,the quality should be IEC 60950
