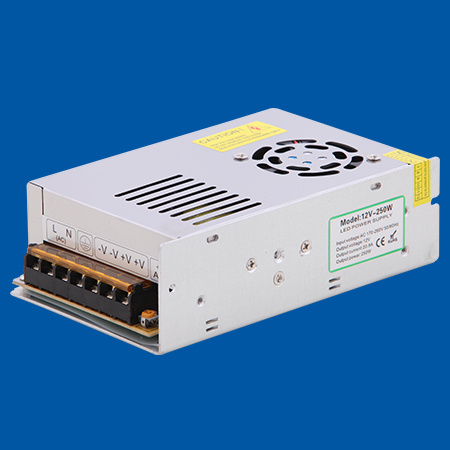

250W DC12V Switching Power Supply single Output with CE RoHS

Name: 250W DC12V Switching Power Supply single Output with CE RoHS
Brand: all-electronics-online.com
SKU: 782537465
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 8.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLT-PW250D12N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No:	Hlt-Pw250d12n
Rated Power:	250W
Output Voltage:	DV12/ DC24V
Rated Current:	20.83A/ 10.42A
Efficiency:	85%
Input Voltage Range:	100-264V
Setup, Rise, Hold Up Time:	200ms 100ms 30ms
Frequency Range:	47~63Hz
Housing Shell:	Aluminum Shell Good for Heat Transfer
Product Dimension:	16610555mm
Output Type:	Single
Warranty:	>2 Years
Output Power:	201 - 300W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Huaron

Product Description

Description:
Item No.: HLT-PW250D12N
Output voltage:12V/24V
Rated Current: 20.83A/ 10.42A
Rated Power: 250W
Ripple and Noise Note: 100mVp-p
Setup, Rise, Hold up time: 200ms 100ms 30ms
Input Voltage Range:100-264V
Frequency Range: 47~63Hz
AC inrush Current: 40A/230V
Leakage Current: 1mA/240VAC
Housing shell: Aluminum shell good for heat transfer
Cooling: Converction design
Product Dimension: 166*105*55mm
Products weight: 0.64kg

Features :
Universal AC input/Full range
Protection: Short circuit/Overload/Over voltage/Over temperature
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
100% full load burn-in test
Ideal for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
2 years warranty

Protection:
Over Current: 105-150% rated output power. Protection type: Hiccup mode,recovers automatically after fault condition is removed
Over Voltage: Protection type: shut down o/p voltage, re-power on to recover
Short Circuit: Auto Recover
Protection grade: IP20

Environment:
Working Temp: - 20 ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage Temp: -40 ~ 85 ° c / 20% ~ 90% RH (no frost)
Temp. Coefficient: 0.03%°C (0~50°C)
Vibration Frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes.

Certificate:
ISO 9001: 2008,CE,ROHS,LVD ETC
