25W 12V Switching Power Supply for LED LCD Ms-25 SMPS, Small Type Power Supply, 5V 12V 24V 48V

Name: 25W 12V Switching Power Supply for LED LCD Ms-25 SMPS, Small Type Power Supply, 5V 12V 24V 48V
Brand: all-electronics-online.com
SKU: 839793605
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	US $ 6-7/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-25
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

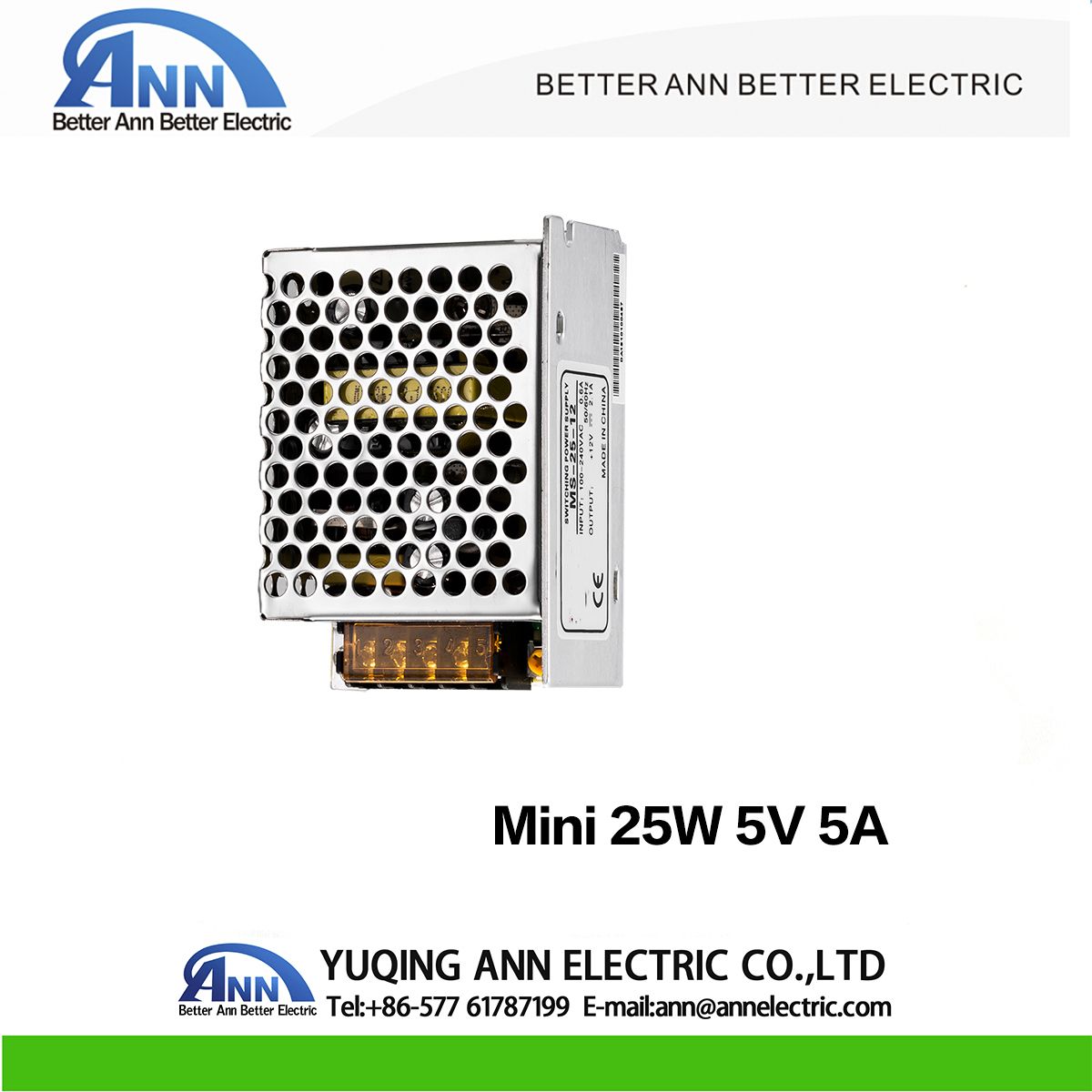

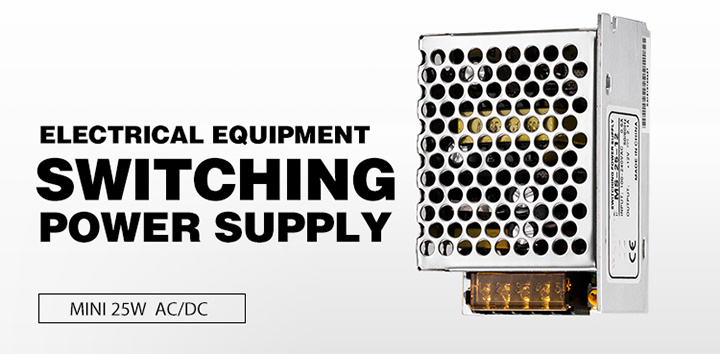

25W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

Model		MS-25-12	MS-25-15	MS-25-24	-----
output	DC voltage	12V	15V	24V	-----
	Voltage tolerance	±1%	±1%	±1%	-----
	Rated current	2.1A	1.7A	1.1A	-----
	Current range	0~1.3A	0~1.7A	0~1.1A	-----
	Rated power	25.2W	25.5W	26.4W	-----
	Ripple&noise	100mvp-p	120mvp-p	150mvp-p	-----
	DCvoltage ADJ.range	±10%	±10%	±10%	-----
input	Voltage range	100~240VAC,150~373VDC
	frequency	47~63HZ
	AC current	0.35A/230VAC
	efficiency	78%	78%	80%	-----
	Inrush current	Cold start current 30A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power110%~135% start over load protection
		protection type :part layer type current limit ,auto-recovery after fault condition is removed
	-----	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,CLASSA
others	Dimension	855937mm (LWH)
	Weight/packing	0.15kg/80pcs/13kg
